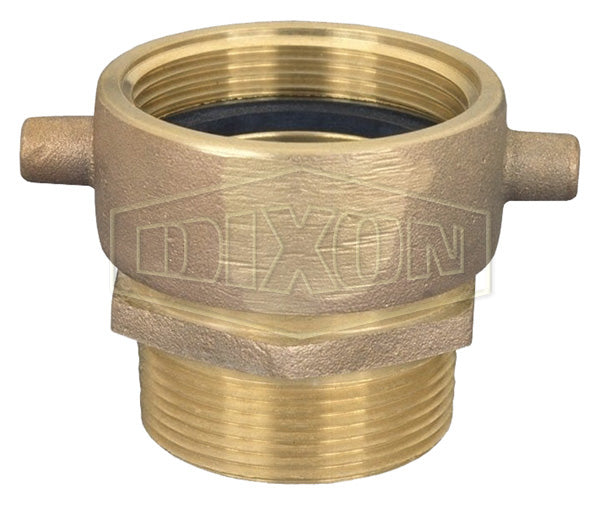

SM400F Dixon Cast Brass Female Swivel x Male Adapter - Pin Lug - 4" Female NST(NH) x 4" Male NPT

SM400F Dixon Cast Brass Female Swivel x Male Adapter - Pin Lug - 4" Female NST(NH) x 4" Male NPT

Save $35.19 Save $35.19
$496.99
$496.99 - $496.99
$496.99
$461.80
$461.80 - $461.80
$461.80

Dixon Fire Fittings
Female Swivel x Male Adapter - Pin Lug - Cast Brass
Specifications for Variant SKU: SM400F Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Female NST, 4in Male NPT
Material(s): Brass
Part Number Female Swivel Thread Male Thread Weight
(Lbs.)
SM150F 1-1/2" Female NST(NH) 1-1/2" Male NPT 1.1100
SM25F15T 2-1/2" Female NST(NH) 1-1/2" Male NPT 2.4300
SM25F20T 2-1/2" Female NST(NH) 2" Male NPT 2.4500
SM250F 2-1/2" Female NST(NH) 2-1/2" Male NPT 2.6400
SM25F30T 2-1/2" Female NST(NH) 3" Male NPT 2.7600
SM400F 4" Female NST(NH) 4" Male NPT 9.0000
SM150S 1-1/2" Female NPSH 1-1/2" Male NPT 1.0100
SM200S 2" Female NPSH 2" Male NPT 2.0600
SM250S 2-1/2" Female NPSH 2-1/2" Male NPT 2.9550
SM15S15F 1-1/2" Female NPSH 1-1/2" Male NST(NH) 1.0900
SM25F30F 2-1/2" Female NST(NH) 3" Male NH(NST) 4.2400
SM150NYFD 1-1/2" Female NYFD 1-1/2" Male NPT -
SM250NYFD 2-1/2" Female NYFD 2-1/2" Male NPT 2.9210
