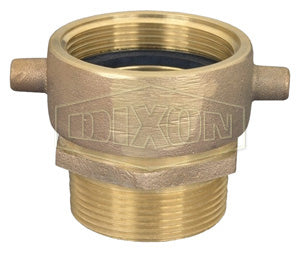

SM250NYFD Dixon Cast Brass Female Swivel x Male Adapter - Pin Lug - 2-1/2" Female NYFD x 2-1/2" Male NPT

SM250NYFD Dixon Cast Brass Female Swivel x Male Adapter - Pin Lug - 2-1/2" Female NYFD x 2-1/2" Male NPT

Save $21.63 Save $21.63
$165.60
$165.60 - $165.60
$165.60
$143.97
$143.97 - $143.97
$143.97

Dixon Fire Fittings
Female Swivel x Male Adapter - Pin Lug - Cast Brass
Specifications for Variant SKU: SM250NYFD Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NYFD, 2-1/2in Male NPT
Material(s): Brass
Part Number Female Swivel Thread Male Thread Weight
(Lbs.)
SM150F 1-1/2" Female NST(NH) 1-1/2" Male NPT 1.1100
SM25F15T 2-1/2" Female NST(NH) 1-1/2" Male NPT 2.4300
SM25F20T 2-1/2" Female NST(NH) 2" Male NPT 2.4500
SM250F 2-1/2" Female NST(NH) 2-1/2" Male NPT 2.6400
SM25F30T 2-1/2" Female NST(NH) 3" Male NPT 2.7600
SM400F 4" Female NST(NH) 4" Male NPT 9.0000
SM150S 1-1/2" Female NPSH 1-1/2" Male NPT 1.0100
SM200S 2" Female NPSH 2" Male NPT 2.0600
SM250S 2-1/2" Female NPSH 2-1/2" Male NPT 2.9550
SM15S15F 1-1/2" Female NPSH 1-1/2" Male NST(NH) 1.0900
SM25F30F 2-1/2" Female NST(NH) 3" Male NH(NST) 4.2400
SM150NYFD 1-1/2" Female NYFD 1-1/2" Male NPT -
SM250NYFD 2-1/2" Female NYFD 2-1/2" Male NPT 2.9210
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
