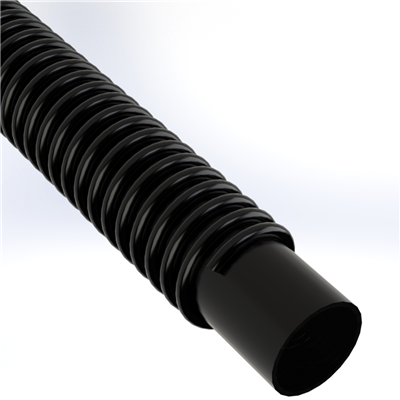

SP-SBR-4.0 by Texcel | SIGMA-ULTRAVAC-SBR™ Series | SBR Vacuum Hose | 4" Hose ID | 30 PSI | 29 in/Hg Vacuum Rated | Black

SP-SBR-4.0 by Texcel | SIGMA-ULTRAVAC-SBR™ Series | SBR Vacuum Hose | 4" Hose ID | 30 PSI | 29 in/Hg Vacuum Rated | Black

$1,028.25 - $2,056.50
$1,028.25
$914.00
$914.00 - $1,828.00
$914.00

SIGMA by Texcel
ULTRAVAC-SBR™ Series | SBR Vacuum Hose
Specifications for Variant SKU: SP-SBR-4.0-50 Texcel | 50 |
Brand: SIGMA
Series: SIGMA-ULTRAVAC-SBR™ Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.63in
Tubing Construction: SBR
Cover Construction: PVC
Special Properties: Outer Helix Protection
Technical Data:
Description: Ultravac SBR™ is a specially compounded vacuum hose that is suitable for use in a multitude of wet and dry material applications. Being lightweight and flexible, Ultravac SBR™ is the ideal hose for vacuum trucks, hydro-excavators, and sewer cleaning equipment. Its static dissipative carbon black tube makes it suitable for handling sand, gravel, dry cement, iron chips, grains and other light abrasives. Construction: Static dissipating, SBR blended tube with a rigid righthanded PVC helix
Safety Factor: 3:1 Temperature: -40°F to +158°F
Branding: SIGMA SERIES - ULTRAVAC SBR -LOT Compared To: 180 AR
Features: Excellent flexibility when compared to PVC/polyurethane hose
Part Number Hose ID Hose OD Std. Length Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./Ft
SP-SBR-1.5-100 1-1/2" 1.82" 100' 45 29 2" 0.35 lbs
SP-SBR-2.0-100 2" 2.35" 100' 40 29 3" 0.52 lbs
SP-SBR-2.5-100 2-1/2" 2.95" 100' 35 29 3" 0.90 lbs
SP-SBR-3.0-100 3" 3.50" 100' 35 29 3" 1.08 lbs
SP-SBR-4.0-50 4" 4.63" 50' 30 29 5" 1.80 lbs
SP-SBR-4.0 4" 4.63" - 30 29 5" 1.80 lbs
SP-SBR-5.0 5" 5.76" - 30 28 5" 2.45 lbs
SP-SBR-6.0 6" 6.73" - 30 28 9" 3.05 lbs
SP-SBR-8.0-50 8" 9.04" 50' 30 27 15" 5.63 lbs
