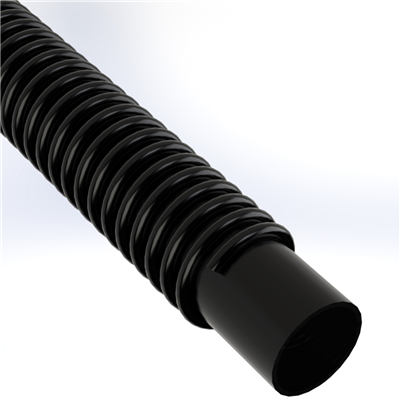

SP-SBR-2.5-100 by Texcel | SIGMA-ULTRAVAC-SBR™ Series | SBR Vacuum Hose | 2-1/2" Hose ID | 35 PSI | 29 in/Hg Vacuum Rated | Black | 100ft Length

Save $309.10

$1,081.84

$1,081.84 - $1,081.84

$1,081.84

$772.74

$772.74 - $772.74

$772.74

SIGMA by Texcel
ULTRAVAC-SBR™ Series | SBR Vacuum Hose

Package Quantity: 100 Units

Specifications for Variant SKU: SP-SBR-2.5-100 Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-ULTRAVAC-SBR™ Series
Hose Color(s):	Black
Internal Diameter:	2.50in
Outer Diameter:	2.95in
Tubing Construction:	SBR
Cover Construction:	PVC
Special Properties:	Outer Helix Protection

Technical Data:
Description:	Ultravac SBR™ is a specially compounded vacuum hose that is suitable for use in a multitude of wet and dry material applications. Being lightweight and flexible, Ultravac SBR™ is the ideal hose for vacuum trucks, hydro-excavators, and sewer cleaning equipment. Its static dissipative carbon black tube makes it suitable for handling sand, gravel, dry cement, iron chips, grains and other light abrasives.	Construction:	Static dissipating, SBR blended tube with a rigid righthanded PVC helix
Safety Factor:	3:1	Temperature:	-40°F to +158°F
Branding:	SIGMA SERIES - ULTRAVAC SBR -LOT	Compared To:	180 AR
Features:	Excellent flexibility when compared to PVC/polyurethane hose

Part Number	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./Ft
SP-SBR-1.5-100	1-1/2"	1.82"	100'	45	29	2"	0.35 lbs
SP-SBR-2.0-100	2"	2.35"	100'	40	29	3"	0.52 lbs
SP-SBR-2.5-100	2-1/2"	2.95"	100'	35	29	3"	0.90 lbs
SP-SBR-3.0-100	3"	3.50"	100'	35	29	3"	1.08 lbs
SP-SBR-4.0-100	4"	4.63"	-	30	29	5"	1.80 lbs
SP-SBR-5.0-100	5"	5.76"	-	30	28	5"	2.45 lbs
SP-SBR-6.0-100	6"	6.73"	-	30	28	9"	3.05 lbs
SP-SBR-8.0-50	8"	9.04"	50'	30	27	15"	5.63 lbs
