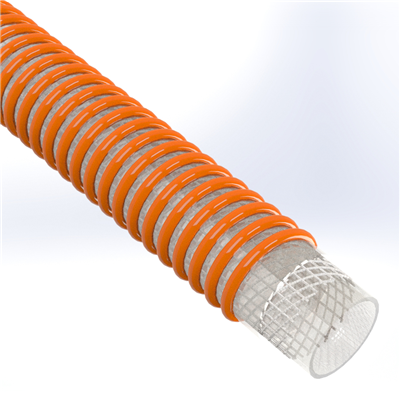

SPVC-AQUA-1.5 by Texcel | SIGMA-PVC AQUA™ Series | Water Suction Hose | 1-1/2" Hose ID | 100 PSI | 28 in/Hg Vacuum Rated | Clear/Orange

$6.15 - $513.00

$6.15

$5.47

$5.47 - $456.00

$5.47

SIGMA-PVC by Texcel
AQUA™ Series | PVC Water Suction Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: SPVC-AQUA-1.5-100 Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-PVC AQUA™ Series
Hose Color(s):	Clear/Orange
Internal Diameter:	1.50in
Outer Diameter:	2.03in
Tubing Construction:	PVC
Cover Construction:	PVC
Special Properties:	Outer Helix Protection

Technical Data:
Description:	Heavy-duty suction and discharge hose for use in a variety of industries, such as rental pumping equipment and applications where the hose needs to slide easily, or visual confirmation of material flow is necessary.	Construction:	Clear, flexible PVC with synthetic yarn and an orange, rigid PVC, right-handed helix
Safety Factor:	3:1	Temperature:	-4°F to +150°F
Branding:	3:1	Branding:	TEXCEL® SIGMA-PVC AQUA™ - WATER SUCTION HOSE - XXXPSI WP-LOT
Compared To:	SR/WST	Safety Note:	Service temperature depends on actual application

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./ft
SPVC-AQUA-1.5	1-1/2"	2.03"	100 psi	28	3"	0.47 lbs
SPVC-AQUA-2.0	2"	2.62"	100 psi	28	4"	0.71 lbs
SPVC-AQUA-3.0	3"	3.71"	100 psi	28	6"	1.14 lbs
SPVC-AQUA-4.0	4"	4.80"	75 psi	28	7"	1.75 lbs
SPVC-AQUA-5.0	5"	6.05"	70 psi	28	9"	3.00 lbs
SPVC-AQUA-6.0	6"	7.17"	70 psi	28	10"	3.90 lbs
SPVC-AQUA-8.0	8"	9.33"	70 psi	28	16"	5.56 lbs
SPVC-AQUA-10.0	10"	10.86"	40 psi	28	25"	8.68 lbs
SPVC-AQUA-12.0	12"	13.8"	28 psi	25	45"	10.30 lbs
