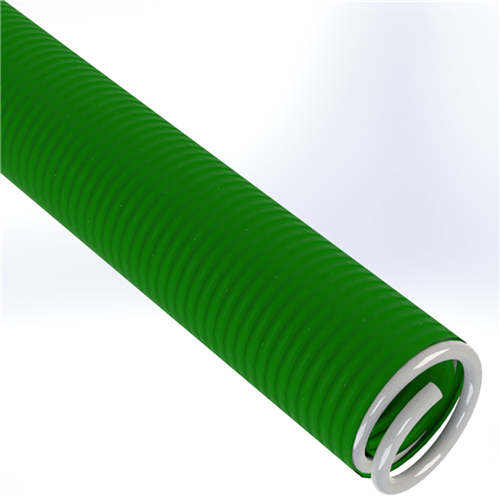

SPVC-GR-6.0 by Texcel | SIGMA-HD Series | Heavy-Duty Water Suction Hose | 6" Hose ID | 50 PSI | 29 in/Hg Vacuum Rated | Green

SPVC-GR-6.0 by Texcel | SIGMA-HD Series | Heavy-Duty Water Suction Hose | 6" Hose ID | 50 PSI | 29 in/Hg Vacuum Rated | Green

$393.00 - $1,965.00
$393.00
$349.33
$349.33 - $1,746.67
$349.33

SIGMA-HD by Texcel
GREEN PVC™ Series | Heavy-Duty Green PVC Water Suction Hose
Specifications for Variant SKU: SPVC-GR-6.0-20- Texcel | 20 |
Brand: SIGMA
Series: SIGMA-HD Series
Hose Color(s): Green
Internal Diameter: 6in
Outer Diameter: 6.93in
Tubing Construction: PVC
Part Number Hose ID Hose OD Working Pressure (psi/bar) Vacuum (in./HG) Bend Radius Lbs./ft
SPVC-GR-1.5-100 1-1/2" 1.77" 100' 85 psi 29 4" 0.39 lbs
SPVC-GR-2.0-100 2" 2.24" 100' 70 psi 29 5" 0.57 lbs
SPVC-GR-2.5-100 2-1/2" 2.80" 100' 70 psi 29 6.5" 0.74 lbs
SPVC-GR-3.0-100 3" 3.27" 100' 65 psi 29 8.5" 0.94 lbs
SPVC-GR-4.0-100 4" 4.67" 100' 65 psi 29 12" 1.48 lbs
SPVC-GR-5.0-100 5" 5.51" 100' 50 psi 29 14" 2.15 lbs
SPVC-GR-6.0 6" 6.93" - 50 psi 29 15" 2.89 lbs
SPVC-GR-8.0-20 8" 8.66" 20' 45 psi 29 20" 4.37 lbs
POLY-G-10.0-25 10" 11.34" 25' 30 psi 29 35" 7.45 lbs
POLY-G-12.0-25 12" 13.39" 25' 30 psi 29 40" 8.87 lbs
