SPVC-PU-5.0 by Texcel | SIGMA-POLY-U™ Series | Lightweight Polyurethane Hose | 5" Hose ID | 6 PSI | 10 in/Hg Vacuum Rated | Clear w/ Orange Helix

SPVC-PU-5.0 by Texcel | SIGMA-POLY-U™ Series | Lightweight Polyurethane Hose | 5" Hose ID | 6 PSI | 10 in/Hg Vacuum Rated | Clear w/ Orange Helix

$839.25 - $1,678.50
$839.25
$746.00
$746.00 - $1,492.00
$746.00

SIGMA by Texcel
POLY-U™ Series | Lightweight Polyurethane Hose
Specifications for Variant SKU: SPVC-PU-5.0-50 Texcel | 50 |
Brand: SIGMA
Series: SIGMA-POLY-U™ Series
Hose Color(s): Clear/Orange
Internal Diameter: 5in
Outer Diameter: 5.94in
Tubing Construction: Polyurethane
Cover Construction: PVC
Special Properties: Outer Helix Protection
Technical Data:

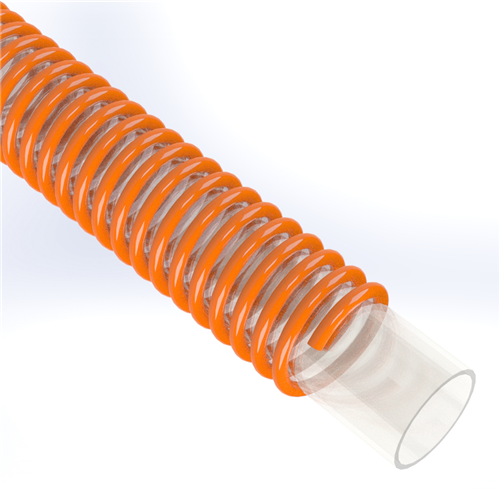

Description: Extremely flexible hose, ideal for leaf collection, mulch blowing, straw blowing, wood chips, saw dust, lawn cleaning and concrete surface preparation equipment. The smooth bore polyurethane tube allows for high abrasion resistance and unrestricted flow. Construction: Clear, polyurethane (ether-based) with exposed orange, rigid PVC, right-handed helix
Safety Factor: 3:1 Temperature: -4°F to +150°F
Branding: TEXCEL® SIGMA-POLY U™ -LIGHTWEIGHT POLYURETHANE HOSE -LOT Compared To: Urevac-1/150 UDH
Safety Note: Service temperature depends on actual application
Part Number Hose ID Hose OD Std. Length Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./Ft
SPVC-PU-1.5-50 1-1/2" 1.91" 50' 20 22 1" 0.23 lbs
SPVC-PU-2.0-50 2" 2.46" 50' 15 21 1.5" 0.32 lbs
SPVC-PU-2.5-50 2-1/2" 3.01" 50' 9 19 1.5" 0.34 lbs
SPVC-PU-3.0-50 3" 3.60" 50' 8 19 2.5" 0.48 lbs
SPVC-PU-4.0 4" 4.72" - 7 13 3" 0.70 lbs
SPVC-PU-5.0 5" 5.94" - 6 10 4" 0.89 lbs
SPVC-PU-6.0-50 6" 7.17" 50' 5 7 5" 1.15 lbs
SPVC-PU-8.0-50 8" 9.33" 50' 3 5 7" 1.65 lbs
