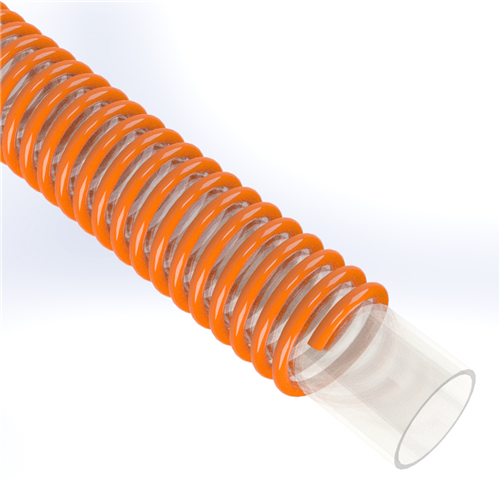

SPVC-PU-3.0-50 by Texcel | SIGMA-POLY-U™ Series | Lightweight Polyurethane Hose | 3" Hose ID | 7 PSI | 19 in/Hg Vacuum Rated | Clear w/ Orange Helix | 50ft Length

Save $151.76

$531.17

$531.17 - $531.17

$531.17

$379.41

$379.41 - $379.41

$379.41

SIGMA by Texcel
POLY-U™ Series | Lightweight Polyurethane Hose

Package Quantity: 50 Units

Specifications for Variant SKU: SPVC-PU-3.0-50 Texcel \| 50 \|
Brand:	SIGMA
Series:	SIGMA-POLY-U™ Series
Hose Color(s):	Clear/Orange
Internal Diameter:	3in
Outer Diameter:	3.60in
Tubing Construction:	Polyurethane
Cover Construction:	PVC
Special Properties:	Outer Helix Protection

Technical Data:
Description:	Extremely flexible hose, ideal for leaf collection, mulch blowing, straw blowing, wood chips, saw dust, lawn cleaning and concrete surface preparation equipment. The smooth bore polyurethane tube allows for high abrasion resistance and unrestricted flow.	Construction:	Clear, polyurethane (ether-based) with exposed orange, rigid PVC, right-handed helix
Safety Factor:	3:1	Temperature:	-4°F to +150°F
Branding:	TEXCEL® SIGMA-POLY U™ -LIGHTWEIGHT POLYURETHANE HOSE -LOT	Compared To:	Urevac-1/150 UDH
Safety Note:	Service temperature depends on actual application

Part Number	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./Ft
SPVC-PU-1.5-50	1-1/2"	1.91"	50'	20	22	1"	0.23 lbs
SPVC-PU-2.0-50	2"	2.46"	50'	15	21	1.5"	0.32 lbs
SPVC-PU-2.5-50	2-1/2"	3.01"	50'	9	19	1.5"	0.34 lbs
SPVC-PU-3.0-50	3"	3.60"	50'	8	19	2.5"	0.48 lbs
SPVC-PU-4.0-100	4"	4.72"	-	7	13	3"	0.70 lbs
SPVC-PU-5.0-100	5"	5.94"	-	6	10	4"	0.89 lbs
SPVC-PU-6.0-50	6"	7.17"	50'	5	7	5"	1.15 lbs
SPVC-PU-8.0-50	8"	9.33"	50'	3	5	7"	1.65 lbs
