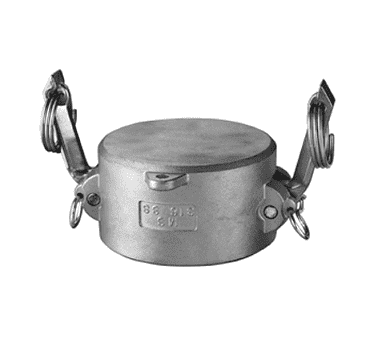

SS304-DC600 by Kuriyama | Quick-Acting Coupling | Part DC | 6" Dust Cap | 304 Stainless Steel

SS304-DC600 by Kuriyama | Quick-Acting Coupling | Part DC | 6" Dust Cap | 304 Stainless Steel

Save $78.69 Save $78.69
$275.41
$275.41 - $275.41
$275.41
$196.72
$196.72 - $196.72
$196.72

Kuriyama Couplings™ - Quick-Acting Couplings - Part DC - Dust Cap - 304 Stainless

Specifications for Variant SKU: SS304-DC600 Kuriyama
Cam Type: Type DC
Ends Configuration: 6in Female Cam & Groove
Material(s): 304 Stainless Steel
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 304 Stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
SS304-DC050 1/2" 0.25 lbs
SS304-DC075 3/4" 0.36 lbs.
SS304-DC100 1" 0.54 lbs.
SS304-DC125 1-1/4" 1.30 lbs.
SS304-DC150 1-1/2" 1.46 lbs.
SS304-DC200 2" 1.78 lbs.
SS304-DC250 2-1/2" 2.38 lbs.
SS304-DC300 3" 3.04 lbs.
SS304-DC400 4" 5.02 lbs.
SS304-DC500 5" 7.35 lbs.
SS304-DC600 6" 9.92 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
