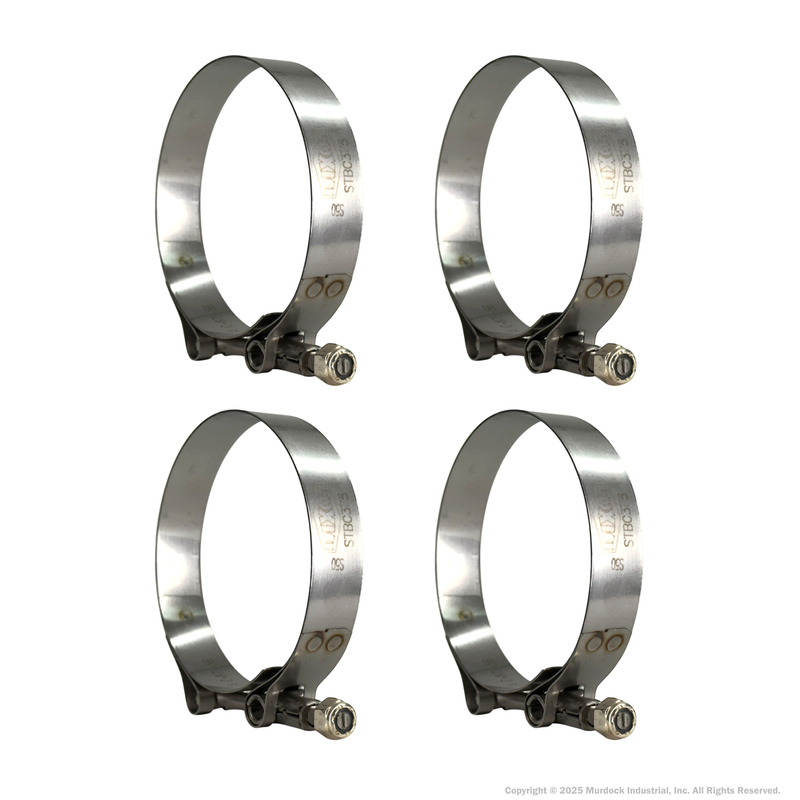

STBC375 by Dixon Valve | Style STBC | T-Bolt Clamp | 3/4" Band Width | Hose OD Range: from 3.50" to 3.81" | 300 Stainless Steel Band & Bolt

STBC375 by Dixon Valve | Style STBC | T-Bolt Clamp | 3/4" Band Width | Hose OD Range: from 3.50" to 3.81" | 300 Stainless Steel Band & Bolt

Save $4.25

$10.62

$10.62 - $10.62

$10.62

$6.37

$6.37 - $6.37

$6.37

Dixon Valve
T-Bolt Clamps | Style STBC

Quantity

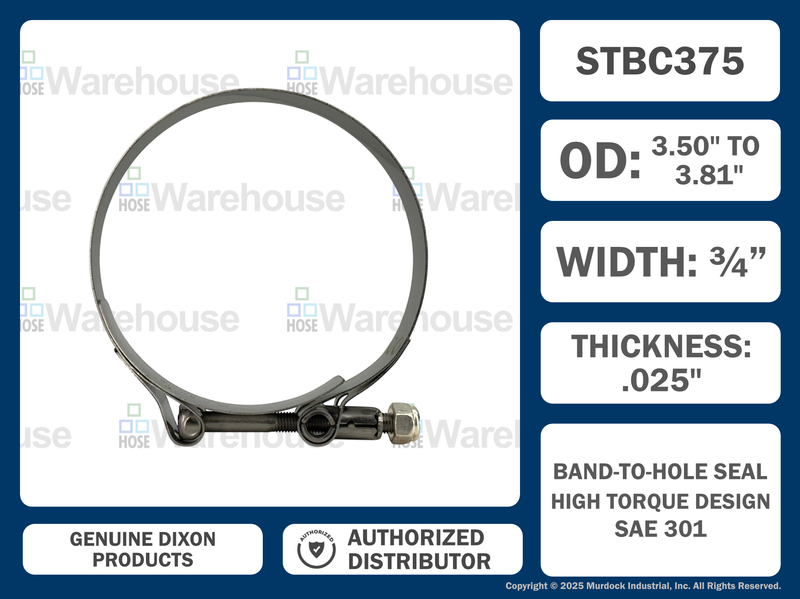

Specifications for Variant SKU: STBC375 Dixon
Series:	Style STBC
Material(s):	300 Stainless Steel
Clamp Thickness:	0.025
Clamp Width:	0.75
Minimum Clamp I.D.:	3.516
Maximum Clamp I.D.:	3.812

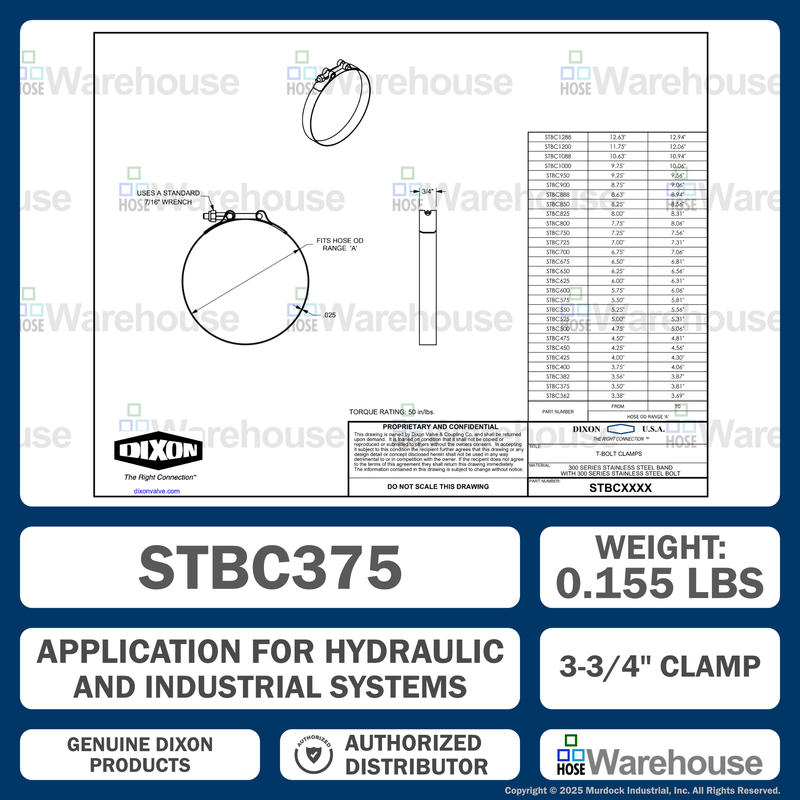

Features:
Can be applied with a standard 7/16" socket wrench. Not for use with pneumatic tools.
Sizes:
Band: 3/4" wide, .025" thick
Materials:
Style TBC 300-series stainless steel band. Alloy steel bolt, torque rating: 70 in. lbs. Style STBC 300-series stainless steel band. 300-series stainless steel bolt, torque rating: 50 in/lbs

Style TBC Part Number	Band Width	Hose OD		Style STBC Part Number	Band Width	Hose OD
Style TBC Part Number	Band Width	From	To	Style STBC Part Number	Band Width
TBC131	3/4"	1.25"	1.406"	STBC131	3/4"	1.25"	1.4063"
TBC150	3/4"	1.34"	1.56"	STBC150	3/4"	1.31"	1.56"
-	-	-	-	STBC163	3/4"	1.44"	1.69"
TBC175	3/4"	1.56"	1.81"	STBC175	3/4"	1.56"	1.81"
TBC188	3/4"	1.69"	1.94"	STBC188	3/4"	1.69"	1.94"
TBC200	3/4"	1.81"	2.06"	STBC200	3/4"	1.81"	2.06"
-	-	-	-	STBC212	3/4"	1.93"	2.18"
TBC225	3/4"	2.06"	2.31"	STBC225	3/4"	2.06"	2.31"
TBC238	3/4"	2.19"	2.5"	STBC238	3/4"	2.19"	2.5"
TBC250	3/4"	2.31"	2.62"	STBC250	3/4"	2.31"	2.62"
TBC256	3/4"	2.31"	2.62"	STBC256	3/4"	2.31"	2.62"
TBC263	3/4"	2.37"	2.68"	STBC263	3/4"	2.37"	2.68"
TBC275	3/4"	2.50"	2.81"	STBC275	3/4"	2.50"	2.81"
TBC288	3/4"	2.63"	2.94"	STBC288	3/4"	2.63"	2.94"
TBC300	3/4"	2.75"	3.06"	STBC300	3/4"	2.75"	3.06"
TBC312	3/4"	2.88"	3.19"	STBC312	3/4"	2.88"	3.19"
TBC325	3/4"	3.00"	3.31"	STBC325	3/4"	3.00"	3.31"
TBC350	3/4"	3.25"	3.56"	STBC350	3/4"	3.25"	3.56"
-	-	-	-	STBC362	3/4"	3.38"	3.69"
TBC375	3/4"	3.50"	3.81"	STBC375	3/4"	3.50"	3.81"
TBC382	3/4"	3.56"	3.87"	STBC382	3/4"	3.56"	3.87"
TBC400	3/4"	3.75"	4.06"	STBC400	3/4"	3.75"	4.06"
TBC425	3/4"	4.00"	4.30"	STBC425	3/4"	4.00"	4.30"
TBC450	3/4"	4.25"	4.56"	STBC450	3/4"	4.25"	4.56"
TBC475	3/4"	4.50"	4.81"	STBC475	3/4"	4.50"	4.81"
TBC500	3/4"	4.75"	5.06"	STBC500	3/4"	4.75"	5.06"
TBC525	3/4"	5.00"	5.31"	STBC525	3/4"	5.00"	5.31"
TBC550	3/4"	5.25"	5.56"	STBC550	3/4"	5.25"	5.56"
TBC575	3/4"	5.50"	5.81"	STBC575	3/4"	5.50"	5.81"
TBC600	3/4"	5.75"	6.06"	STBC600	3/4"	5.75"	6.06"
TBC625	3/4"	6.00"	6.31"	STBC625	3/4"	6.00"	6.31"
TBC650	3/4"	6.25"	6.56"	STBC650	3/4"	6.25"	6.56"
TBC675	3/4"	6.50"	6.81"	STBC675	3/4"	6.50"	6.81"
TBC700	3/4"	6.75"	7.06"	STBC700	3/4"	6.75"	7.06"
-	-	-	-	STBC725	3/4"	7.00"	7.31"
TBC750	3/4"	7.25"	7.56"	STBC750	3/4"	7.25"	7.56"
-	-	-	-	STBC800	3/4"	7.75"	8.06"
-	-	-	-	STBC825	3/4"	8.00"	8.31"
-	-	-	-	STBC850	3/4"	8.25"	8.56"
-	-	-	-	STBC888	3/4"	8.63"	8.94"
-	-	-	-	STBC900	3/4"	8.75"	9.06"
-	-	-	-	STBC950	3/4"	9.25"	9.56"
-	-	-	-	STBC1000	3/4"	9.75"	10.06"
-	-	-	-	STBC1088	3/4"	10.63"	10.94"
-	-	-	-	STBC1200	3/4"	11.75"	12.06"
-	-	-	-	STBC1288	3/4"	12.63"	12.94"
