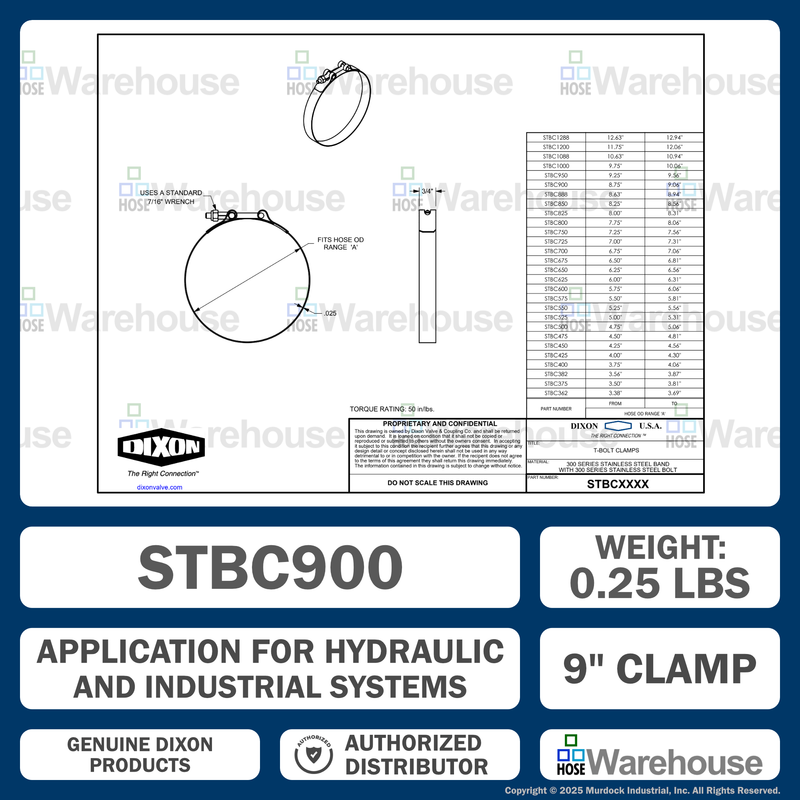

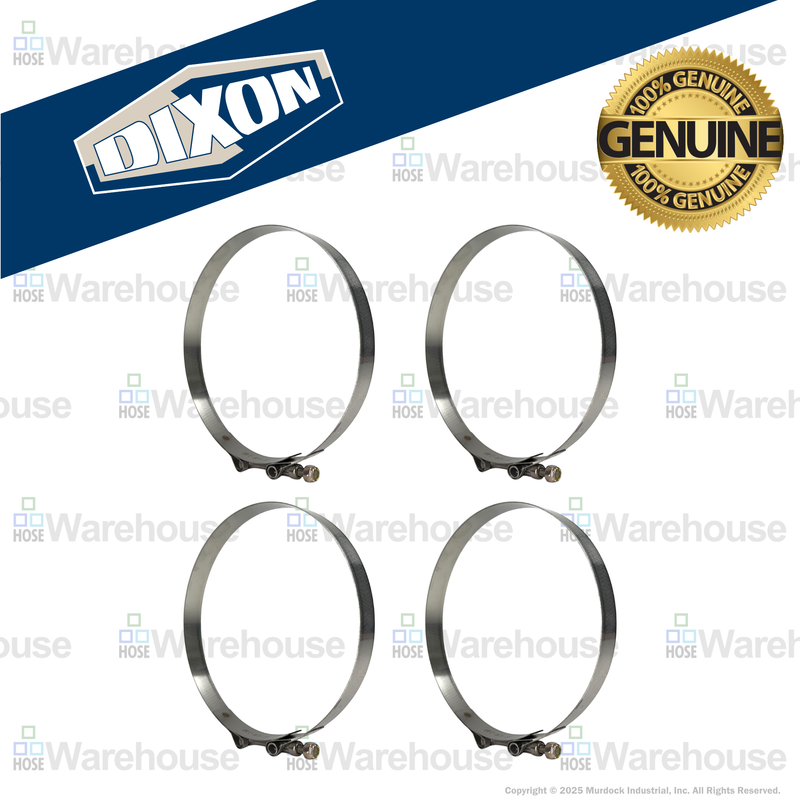

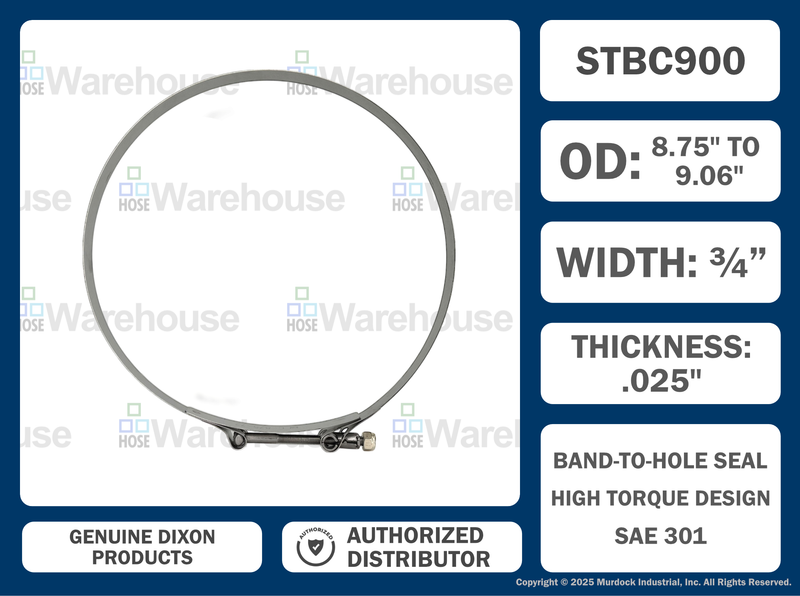

STBC900 by Dixon Valve | Style STBC | T-Bolt Clamp | 3/4" Band Width | Hose OD Range: from 8.75" to 9.06" | 300 Stainless Steel Band & Bolt

STBC900 by Dixon Valve | Style STBC | T-Bolt Clamp | 3/4" Band Width | Hose OD Range: from 8.75" to 9.06" | 300 Stainless Steel Band & Bolt

Save $1.05 Save $1.05
$9.48
$9.48 - $9.48
$9.48
$8.43
$8.43 - $8.43
$8.43

Dixon Valve
T-Bolt Clamps | Style STBC
Specifications for Variant SKU: STBC900 Dixon
Series: Style STBC
Material(s): 300 Stainless Steel
Clamp Thickness: 0.025
Clamp Width: 0.75
Minimum Clamp I.D.: 8.766
Maximum Clamp I.D.: 9.062
Features:
  • Can be applied with a standard 7/16" socket wrench.
  • Not for use with pneumatic tools.
Sizes:
  • Band: 3/4" wide, .025" thick
Materials:
  • Style TBC
    • 300-series stainless steel band.
    • Alloy steel bolt, torque rating: 70 in. lbs.
  • Style STBC
    • 300-series stainless steel band.
    • 300-series stainless steel bolt, torque rating: 50 in/lbs
Style TBC
Part Number		 Band Width Hose OD Style STBC
Part Number		 Band Width Hose OD
From To
TBC131 3/4" 1.25" 1.406" STBC131 3/4" 1.25" 1.4063"
TBC150 3/4" 1.34" 1.56" STBC150 3/4" 1.31" 1.56"
- - - - STBC163 3/4" 1.44" 1.69"
TBC175 3/4" 1.56" 1.81" STBC175 3/4" 1.56" 1.81"
TBC188 3/4" 1.69" 1.94" STBC188 3/4" 1.69" 1.94"
TBC200 3/4" 1.81" 2.06" STBC200 3/4" 1.81" 2.06"
- - - - STBC212 3/4" 1.93" 2.18"
TBC225 3/4" 2.06" 2.31" STBC225 3/4" 2.06" 2.31"
TBC238 3/4" 2.19" 2.5" STBC238 3/4" 2.19" 2.5"
TBC250 3/4" 2.31" 2.62" STBC250 3/4" 2.31" 2.62"
TBC256 3/4" 2.31" 2.62" STBC256 3/4" 2.31" 2.62"
TBC263 3/4" 2.37" 2.68" STBC263 3/4" 2.37" 2.68"
TBC275 3/4" 2.50" 2.81" STBC275 3/4" 2.50" 2.81"
TBC288 3/4" 2.63" 2.94" STBC288 3/4" 2.63" 2.94"
TBC300 3/4" 2.75" 3.06" STBC300 3/4" 2.75" 3.06"
TBC312 3/4" 2.88" 3.19" STBC312 3/4" 2.88" 3.19"
TBC325 3/4" 3.00" 3.31" STBC325 3/4" 3.00" 3.31"
TBC350 3/4" 3.25" 3.56" STBC350 3/4" 3.25" 3.56"
- - - - STBC362 3/4" 3.38" 3.69"
TBC375 3/4" 3.50" 3.81" STBC375 3/4" 3.50" 3.81"
TBC382 3/4" 3.56" 3.87" STBC382 3/4" 3.56" 3.87"
TBC400 3/4" 3.75" 4.06" STBC400 3/4" 3.75" 4.06"
TBC425 3/4" 4.00" 4.30" STBC425 3/4" 4.00" 4.30"
TBC450 3/4" 4.25" 4.56" STBC450 3/4" 4.25" 4.56"
TBC475 3/4" 4.50" 4.81" STBC475 3/4" 4.50" 4.81"
TBC500 3/4" 4.75" 5.06" STBC500 3/4" 4.75" 5.06"
TBC525 3/4" 5.00" 5.31" STBC525 3/4" 5.00" 5.31"
TBC550 3/4" 5.25" 5.56" STBC550 3/4" 5.25" 5.56"
TBC575 3/4" 5.50" 5.81" STBC575 3/4" 5.50" 5.81"
TBC600 3/4" 5.75" 6.06" STBC600 3/4" 5.75" 6.06"
TBC625 3/4" 6.00" 6.31" STBC625 3/4" 6.00" 6.31"
TBC650 3/4" 6.25" 6.56" STBC650 3/4" 6.25" 6.56"
TBC675 3/4" 6.50" 6.81" STBC675 3/4" 6.50" 6.81"
TBC700 3/4" 6.75" 7.06" STBC700 3/4" 6.75" 7.06"
- - - - STBC725 3/4" 7.00" 7.31"
TBC750 3/4" 7.25" 7.56" STBC750 3/4" 7.25" 7.56"
- - - - STBC800 3/4" 7.75" 8.06"
- - - - STBC825 3/4" 8.00" 8.31"
- - - - STBC850 3/4" 8.25" 8.56"
- - - - STBC888 3/4" 8.63" 8.94"
- - - - STBC900 3/4" 8.75" 9.06"
- - - - STBC950 3/4" 9.25" 9.56"
- - - - STBC1000 3/4" 9.75" 10.06"
- - - - STBC1088 3/4" 10.63" 10.94"
- - - - STBC1200 3/4" 11.75" 12.06"
- - - - STBC1288 3/4" 12.63" 12.94"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
