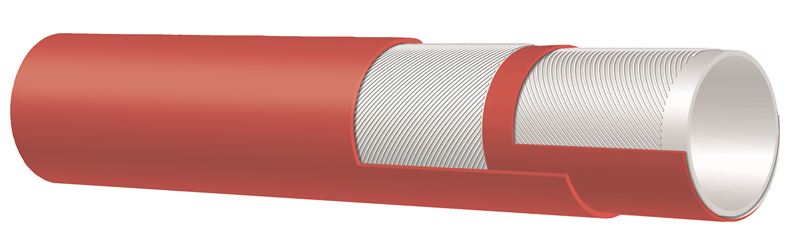

T350LH100X200 Kuriyama Alfagomma Premium Paper Mill/Creamery Wash Down Hose - No Nozzle - Red - 1" ID - 1.46" OD - 225 PSI - 200ft

T350LH100X200 Alfagomma by Kuriyama | Premium Paper Mill/Creamery Wash Down Hose | No Nozzle | Red | 1" ID | 1.46" OD | 225 PSI | 200ft Length

$986.72 - $986.72
$986.72
$998.64
$998.64 - $998.64
$998.64

Kuriyama Alfagomma® T350LH Series 225 PSI Premium Paper Mill/Creamery Wash Down Hose - No Nozzle - Red / White

Package Quantity: 200 FT

Specifications for Variant SKU: T350LH100X200 Kuriyama | 200 |
Brand: Alfagomma
Series: T350LH Series
Hose Color(s): Red
Internal Diameter: 0.75in
Outer Diameter: 1.22in
Tubing Construction: EPDM
Cover Construction: EPDM
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable 3-A Sanitary Standards

SPECIFICATIONS

Application: For general wash down service, using hot water or low pressure saturated steam in processing plants and facilities and in food and dairy plants. SAE Rating: N/A
Other Ratings: N/A Tube: White EPDM.
Reinforcement: High tensile textile cords. Cover: Red EPDM - heat, abrasion and ozone resistant. or White EPDM - heat, abrasion and ozone resistant.
Temperature Range: -40 deg. F (-40 deg. C) to 330 deg. F (+165 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding:Alfagomma - Italy - T350 6 BAR (90 PSI) STEAM 15 BAR (225 PSI) HOT WATER (embossed)
  • Coupling Suggestions:Short shank, long shank couplings (NPT, GHT), barbed inserts attached with bands.
Part Number Color Nominal ID Nominal OD Max Rec. Working Pressure Steam Pressure Standard Length Weight
(in.) (mm) (in.) (mm) PSI PSI (ft.) (lbs./ft.)
T350LL050X200 White 1/2" 13mm 0.91" 23mm 225 PSI 90 PSI 200ft 0.27 lbs
T350LL062X200 White 5/8" 16mm 1.02" 26mm 225 PSI 90 PSI 200ft 0.31 lbs
T350LL075X200 White 3/4" 19mm 1.22" 31mm 225 PSI 90 PSI 200ft 0.44 lbs
T350LL100X200 White 1" 25mm 1.46" 37mm 225 PSI 90 PSI 200ft 0.54 lbs
T350LH075X200 Red 3/4" 19mm 1.22" 31mm 225 PSI 90 PSI 200ft 0.44 lbs
T350LH100X200 Red 1" 25mm 1.46" 37mm 225 PSI 90 PSI 200ft 0.54 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
