T400LB300X100 Alfagomma by Kuriyama | Evolution Series | FDA Multi Food Suction & Discharge Hose | 3" ID | 3.50" OD | 150 PSI | Grey | 100ft

T400LB300X100 Alfagomma by Kuriyama | Evolution Series | FDA Multi Food Suction & Discharge Hose | 3" ID | 3.50" OD | 150 PSI | Grey | 100ft Length

Save $687.88 Save $687.88
$2,407.57
$2,407.57 - $2,407.57
$2,407.57
$1,719.69
$1,719.69 - $1,719.69
$1,719.69

Kuriyama of America Inc.
Alfagomma® T400LB Evolution Series - FDA Multi Food Suction & Discharge Hose - 150 PSI - Grey

(Replaces Kuriyama's T405LB Series)
Specifications for Variant SKU: T400LB300X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T400LB Series, Evolution Series
Hose Color(s): Grey
Internal Diameter: 3
Outer Diameter: 3.50
Tubing Construction: Nitrile
Cover Construction: Nitrile/PVC Blend
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable 3-A Sanitary Standards

SPECIFICATIONS

Application:
  • Liquid food suction and discharge.
  • Alcoholic beverages - wine, beer & spirits up to 75% alcohol content and 150 proof.
  • Milk tanker collection & unloading-ideal for reel applications.
  • Hot food-constant operations: liquid food up to 230° F (110° C), fat foods up to 248° F (120° C).
  • Fat foods-perfect for animal fats and any vegetable oils.
 SAE Rating: N/A
Other Ratings: N/A Tube: White NBR rubber specially compounded to satisfy the highest food industry standards. Compliant to FDA and 3A standards. Phthalate free.

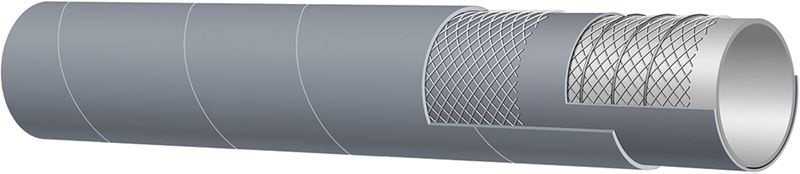

Reinforcement: High tensile textile cords with embedded steel helix wire. Cover: Grey NBR/PVC abrasion, weather & ozone resistant
Temperature Range: Service Temperature Range - Liquid Foods: 230 ºF (110 ºC) to -22 ºF (-30 ºC)
Service Temperature Range - Fat Foods: 248 ºF (120 ºC) to -22 ºF (-30 ºC) 		Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3-A Compliant Material
Other Features:
  • Hose may be sterilized with 266° F (110° C) steam for 30 minutes or with 5% soda solution.
  • Constant Pressure - 10 Bar (150 PSI)
  • Branding: AG - ITALY - 400 EVOLUTION 10 bar (150 Psi) MULTI FOOD S&D 110° C (230° F) FDA 3-A (food symbol)
  • COUPLING SUGGESTIONS: Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Part Number ID OD Max Rec. Working Pressure Vacuum Min Bend Radius Standard Length Weight
  (in.) (mm) (in.) (mm) PSI in HG at 68ºF (ft.) (lbs./ft.)
T400LB150X100 1-1/2" 38mm 1.93" 49mm 150 PSI 30 in HG 3" 100ft 0.79 lbs
T400LB200X100 2" 51mm 2.48" 63mm 150 PSI 30 in HG 4" 100ft 1.07 lbs
T400LB300X100 3" 76mm 3.50" 89mm 150 PSI 27 in HG 6" 100ft 1.94 lbs
T400LB400X100 4" 102mm 4.57" 116mm 150 PSI 27 in HG 8" 100ft 2.63 lbs
