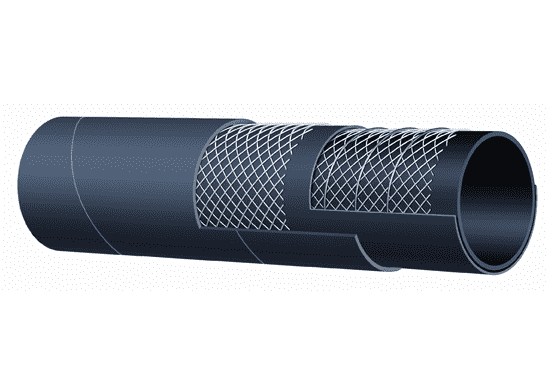

T720AA400X100 Alfagomma by Kuriyama | Bulk Material S & D Hose | Black | 4" ID | 4.57" OD | 150 PSI | 100ft Length

T720AA400X100 Alfagomma by Kuriyama | Bulk Material S & D Hose | Black | 4" ID | 4.57" OD | 150 PSI | 100ft Length

Save $917.24 Save $917.24
$3,210.35
$3,210.35 - $3,210.35
$3,210.35
$2,293.11
$2,293.11 - $2,293.11
$2,293.11

Kuriyama Alfagomma® T720AA Series Bulk Material Suction & Discharge Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: T720AA400X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T720AA Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.57in
Tubing Construction: Natural Rubber
Cover Construction: SBR/EPDM Blend
Special Properties: Conductive Hose Cover

SPECIFICATIONS

Application: Suction and discharge of wet or dry abrasive materials. Designed for grains and dry cement.SAE Rating:N/A
Other Ratings: N/A Tube: 3/16" black conductive NR - abrasion resistant.
Reinforcement: Spiralled high tensile textile cords, with 4 highly flexible steel helix wires and static wire. Cover: Black conductive SBR/NR blend - abrasion and ozone resistant.
Temperature Range: -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY T720 - BULK MATERIAL - S & D (in white letters)
  • COUPLING SUGGESTIONS: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.

Part Number Nominal ID Nominal ID Max Rec. Working Pressure Vacuum HG Min. Bend Radius at 68 deg. F Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (in.) (ft.) (lbs./ft.)
T720AA200X100 2" 51mm 2.56" 65mm 150 PSI 30" 6" 100ft 0.97 lbs
T720AA300X100 3" 76mm 3.54" 90mm 150 PSI 27" 9" 100ft 1.54 lbs
T720AA400X100 4" 102mm 4.57" 116mm 150 PSI 27" 12" 100ft 2.15 lbs
T720AA400X50 4" 102mm 4.57" 116mm 150 PSI 27" 12" 50ft 2.15 lbs
T720AA500X20 5" 127mm 5.63" 143mm 75 PSI 24" 20" 20ft 3.20 lbs
T720AA500X50 5" 127mm 5.63" 143mm 75 PSI 24" 20" 50ft 3.20 lbs
T720AA600X20 6" 152mm 6.61" 168mm 75 PSI 24" 24" 20ft 4.01 lbs
T720AA600X50 6" 152mm 6.61" 168mm 75 PSI 24" 24" 50ft 4.01 lbs

Please note: Proper grounding of static wire will prolong tube life.

Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
