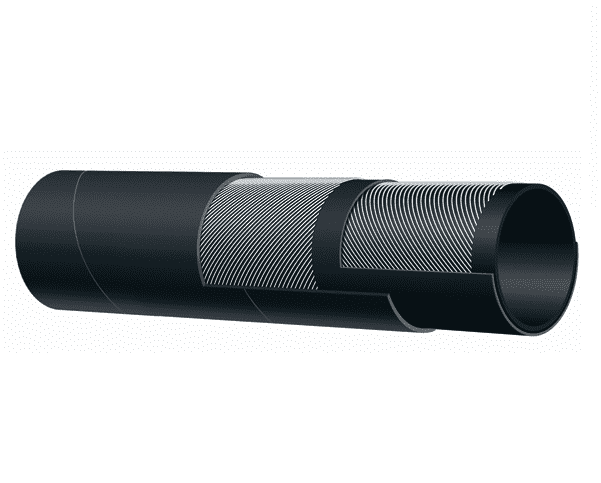

T755AA050X50 Kuriyama Alfagomma 2- Ply Abrasive Material Blast Hose - Black - 1/2" ID - 1.06" OD - 150 PSI - 50ft (Old Part #: LT753AA050X50)

T755AA050X50 Alfagomma by Kuriyama | 2- Ply Abrasive Material Blast Hose | Black | 1/2" ID | 1.06" OD | 150 PSI | 50ft (Old Part #: LT753AA050X50)

Save $77.86 Save $77.86
$272.51
$272.51 - $272.51
$272.51
$194.65
$194.65 - $194.65
$194.65

Kuriyama Alfagomma® LT753AA Series 150 PSI 2-Ply Abrasive Material Blast Hose - Black

Package Quantity: 50 FT

Specifications for Variant SKU: T755AA050X50 Kuriyama | 50 |
Brand: Alfagomma
Series: T755AA Series
Hose Color(s): Black
Internal Diameter: 0.50in
Outer Diameter: 1.06in
Tubing Construction: Natural Rubber/SBR Blend
Cover Construction: Conductive Natural Rubber
Special Properties: Conductive Hose Cover, Pin Pricked Hose Cover

SPECIFICATIONS

Application: Designed to convey abrasives, sand and shot blast material. SAE Rating: N/A
Other Ratings: N/A Tube: Black static conducting NR - offering excellent abrasion resistance.
Reinforcement: High tensile textile cords - 2-ply construction. Cover: Black conductive SBR/NR blend - abrasion and ozone resistant - pin pricked.
Temperature Range: -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY T753 ABRASIVE MATERIAL BLAST - 10 BAR (150 PSI) O (in white letters)
Part Number Nominal ID Nominal ID Tube Thickness Max Rec. Working Pressure Standard Length Weight
(in.) (mm) (in.) (mm) (mm) PSI (ft.) (lbs./ft.)
T755AA050X100 1/2" 13mm 1.06" 27mm 0.212mm 150 PSI 100ft 0.34 lbs
LT753AA050X150 1/2" 13mm 1.06" 27mm 0.212mm 150 PSI 150ft 0.34 lbs
T755AA050X50 1/2" 13mm 1.06" 27mm 0.212mm 150 PSI 50ft 0.34 lbs
LT753AA125X100 1-1/4" 32mm 1.89" 48mm 0.240mm 150 PSI 150ft 0.77 lbs
LT753AA125X50 1-1/4" 32mm 1.89" 48mm 0.240mm 150 PSI 50ft 0.77 lbs
NOTE: Tolerances according to RMA Class 311-A
Blasting Data Guide
Premature hose wear can be prevented if the proper nozzle size is used for the corresponding hose ID size. (See chart below)
Series UB8 UB7 UB6 UB5 UB4
NOZZLE SIZE 1/2 7/16 3/8 5/16 1/4
CFM @ 100 PSI 350 260 200 150 90
AIR HOSE 2 1-1/2 1-1/2 1-1/4 1-1/4
S.B. HOSE SIZE 1-1/2 1-1/2 1-1/4 1-1/4 1
MAT. LB/HR 2250 1750 1260 900 540
