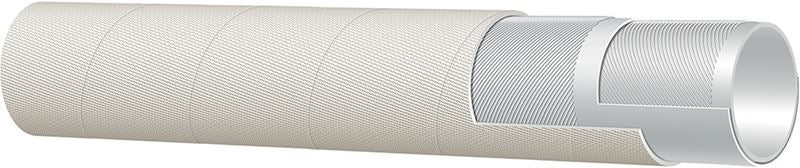

T957LL050X100 Kuriyama Alfagomma Furnace Door Coolant Hose - Beige - 1/2" ID - 0.98" OD - 300 PSI - 100ft

T957LL050X100 Alfagomma by Kuriyama | Furnace Door Coolant Hose | Beige | 1/2" ID | 0.98" OD | 300 PSI | 100ft Length

Save $213.18 Save $213.18
$746.13
$746.13 - $746.13
$746.13
$532.95
$532.95 - $532.95
$532.95
Kuriyama Alfagomma® T957LL Series 300 PSI Furnace Door Coolant Hose - White

Package Quantity: 100 FT

Specifications for Variant SKU: T957LL050X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T957LL Series
Hose Color(s): Beige
Internal Diameter: 0.75in
Outer Diameter: 1.30in
Tubing Construction: EPDM
Cover Construction: EPDM

SPECIFICATIONS

Application: To convey cooling water to furnace doors in steel mills, glass plants, foundries, or where the hose is subjected to high temperatures and splashes of white-hot molten metals or glass. SAE Rating: N/A
Other Ratings: N/A Tube: White EPDM.
Reinforcement: High tensile textile cords. Cover: Beige EPDM - heat resistant, non-conductive resincoated dust-free fiberglass cover.
Temperature Range: Tube : -40 deg. F (-40 deg. C) to 248 deg. F (+120 deg. C) Cover : -40 deg. F (-40 deg. C) to 1000 deg. F (up to +540 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Note: Special order, minimums required. Please contact customer service.
  • Branding: N/A
  • COUPLING SUGGESTIONS: N/A
Part Number Nominal ID Nominal ID Max Rec. Working Pressure Standard Length Weight
(in.) (mm) (in.) (mm) PSI (ft.) (lbs./ft.)
T957LL050X100 1/2" 13mm 0.98" 25mm 300 PSI 100ft 0.30 lbs
T957LL075X100 3/4" 19mm 1.30" 33mm 300 PSI 100ft 0.48 lbs
T957LL100X100 1" 25mm 1.54" 39mm 300 PSI 100ft 0.58 lbs
T957LL125X100 1-1/4" 32mm 1.89" 48mm 300 PSI 100ft 0.84 lbs
T957LL150X100 1-1/2" 38mm 2.13" 54mm 300 PSI 100ft 0.98 lbs
T957LL200X100 2" 51mm 2.64" 67mm 300 PSI 100ft 1.26 lbs
T957LL250X100 2-1/2" 63mm 3.19" 81mm 300 PSI 100ft 1.55 lbs
T957LL300X100 3" 76mm 3.78" 96mm 300 PSI 100ft 2.15 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
