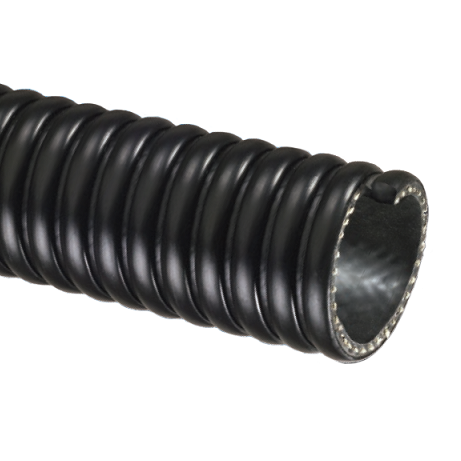

TSD300X100 Kuriyama Tigerflex TSD Series Tiger SD EPDM Fabric Reinforced Suction & Discharge Hose - 3" - 100ft

TSD300X100 Tigerflex by Kuriyama | TSD Series | Tiger SD Fabric Reinforced Suction & Discharge Hose | 3" ID | EPDM | 100ft Length

Save $100.45 Save $100.45
$1,017.78
$1,017.78 - $1,017.78
$1,017.78
$917.33
$917.33 - $917.33
$917.33

Kuriyama Tigerflex TSD™ Series Tiger SD EPDM Fabric Reinforced Suction & Discharge Hose


Package Quantity: 100 FT

Specifications for Variant SKU: TSD300X100 Kuriyama | 100 |
Brand: Tigerflex
Series: TSD Series
Hose Color(s): Black
Internal Diameter: 3in
Outer Diameter: 3.62in
Tubing Construction: EPDM
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Agriculture liquid fertilizers, Agri-foam systems, Liquid manure handling, Suction and discharge, Septic and wastewater handling, Pumps, Water suction - heavy duty, Pumps, Rental and construction dewatering, Trash SAE Rating: N/A
Other Ratings: N/A Tube: Double-Ply EPDM
Reinforcement: Polyester Fabric, Polyethylene Helix. Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 160 deg. F (+71 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Superior Rubber Compounds - Tigerflex™ uses only the best available EPDM compounds, which provide the ideal combination of light-weight, flexibility, durability and chemical resistance.
  • Fabric Reinforcement - designed with high tensile strength polyester yarn jacket to handle both suction, and higher pressure discharge applications.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces and around corners. Easy-to-handle.
  • Convoluted Outer Cover - Provides increased hose flexibility
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
TSD125X100 1-1/4" 31.8mm 1.70" 43.2mm 100 PSI 75 PSI Full 28 in .Hg 3" 100ft 0.41 lbs
TSD150X100 1-1/2" 38.1mm 2.00" 50.7mm 100 PSI 75 PSI Full 28 in .Hg 3" 100ft 0.51 lbs
TSD200X100 2" 50.8mm 2.54" 64.5mm 100 PSI 75 PSI Full 28 in .Hg 5" 100ft 0.73 lbs
TSD300X100 3" 76.2mm 3.62" 92.0mm 90 PSI 65 PSI Full 26 in .Hg 8" 100ft 1.18 lbs
TSD300X50 3" 76.2mm 3.62" 92.0mm 90 PSI 65 PSI Full 26 in .Hg 8" 50ft 1.18 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
