SPECIFICATIONS
| Application: |
Clean-in-place and steam-in-place cleaning and sterilization systems. |
SAE Rating: |
N/A |
| Other Ratings: |
N/A |
Tube: |
Tygon® A-60-C |
| Reinforcement: |
N/A |
Cover: |
N/A |
| Temperature Range: |
Temperature resistant from -75°F to 275°F (-59° C to 135° C) |
Crimp Fittings: |
N/A |
| Reusable Fittings: |
N/A |
Specifications |
N/A |
| Literature: |
Tygon® A-60-C Cleaning Chemical Dispensing Tubing (PDF) |
| Other Features: |
|---|
- Long flex life in peristaltic pumps
- Compatible with virtually all common sanitizers and cleaners
- Ozone and UV light resistant
- Repeatedly autoclavable
- Chemically compatible with a wide range of food types and cleaners
- WARNING: Tygon® A-60-C Cleaning Chemical Dispensing Tubing is not intended as an implant material.
|
| Part Number |
Inside Diameter
(in.) |
Outside Diameter
(in.) |
Wall Thickness
(in.) |
Min.
Bend Radius
(in.) |
Max. Working
Pressure* |
Vaccum Pressure
Rating |
Length |
| at 73°F (PSI) |
at 180°F (PSI) |
at 73°F (PSI) |
at 180°F (PSI) |
| AZT00003 |
1/16" |
3/16" |
1/16" |
1/4" |
34 PSI |
21 PSI |
29.9 inHg |
29.9 inHg |
50ft |
| AZT00007 |
1/8" |
1/4" |
1/16" |
1/2" |
19 PSI |
12 PSI |
29.9 inHg |
29.9 inHg |
50ft |
| AZT00012 |
3/16" |
5/16" |
1/16" |
3/4" |
13 PSI |
8 PSI |
29.9 inHg |
23.0 inHg |
50ft |
| AZT00017 |
1/4" |
3/8" |
1/16" |
1-1/4" |
10 PSI |
6 PSI |
26.0 inHg |
13.0 inHg |
50ft |
| AZT00019 |
1/4" |
1/2" |
1/8" |
3/4" |
19 PSI |
12 PSI |
29.9 inHg |
29.9 inHg |
50ft |
| AZT00022 |
5/16" |
7/16" |
1/16" |
1-1/2" |
8 PSI |
5 PSI |
17.0 inHg |
8.0 inHg |
50ft |
| AZT00027 |
3/8" |
1/2" |
1/16" |
2-1/4" |
7 PSI |
4 PSI |
11.0 inHg |
5.0 inHg |
50ft |
| AZT00029 |
3/8" |
5/8" |
1/8" |
1-1/4" |
13 PSI |
8 PSI |
29.9 inHg |
23.0 inHg |
50ft |
| AZT00038 |
1/2" |
3/4" |
1/8" |
2" |
10 PSI |
6 PSI |
26.0 inHg |
13.0 inHg |
50ft |
| AZT00046 |
5/8" |
7/8" |
1/8" |
3-1/4" |
8 PSI |
5 PSI |
17.0 inHg |
8.0 inHg |
50ft |

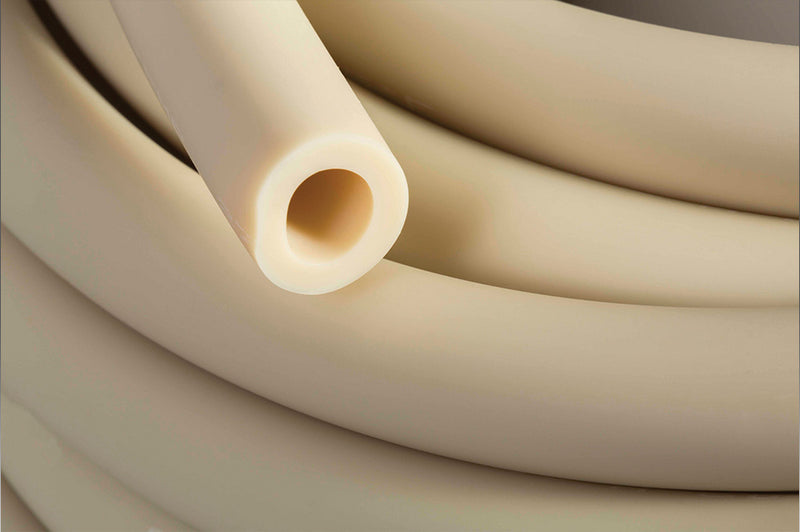

| AZT00053 |
3/4" |
1" |
1/8" |
4" |
7 PSI |
4 PSI |
11.0 inHg |
5.0 inHg |
50ft |
* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.
Note: Every attempt has been taken to provide accurate detailed
usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics.
Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses.
Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of
tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this
particular hose is not available "by the foot" through our site.
