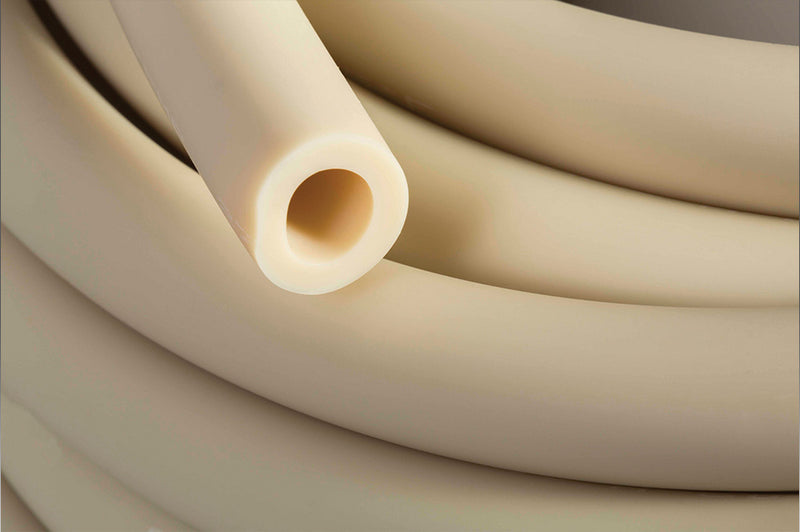

Tygon® AZT00029 Saint Gobain 3/8" ID x 5/8" OD x 1/8" Wall 50' Package Length - A-60-C Cleaning Chemical Dispensing Tubing

AZT00029 Tygon® by Saint Gobain | 3/8" ID x 5/8" OD x 1/8" Wall | A-60-C Cleaning Chemical Dispensing Tubing | 50' Package Length

Minimum Order Quantity: 20 Packages

Save $19.05 Save $19.05
$190.49
$190.49 - $190.49
$190.49
$171.44
$171.44 - $171.44
$171.44

Saint Gobain
A-60-C Cleaning Chemical Dispensing Tubing

Tygon A-60-C tubing is formulated to withstand extreme temperatures from -75° F to 275° F (-59° C to 135° C) and will not crack or deteriorate when used in demanding cleaning chemical dispensing applications. Extremely flexible, it resists kinks and retains its shape while installing quickly and easily. Its excellent flexural fatigue resistance makes it the absolute best choice for use in peristaltic pumps often found in dispensing equipment.

Tygon A-60-C tubing simplifies cleaning and sterilization and is ideal for use in clean-in-place and steam-in-place cleaning and sterilization systems. It is compatible with virtually all commercial cleaners and sanitizers and can be repeatedly autoclaved for up to five cycle times without affecting its overall service life.

No by the foot sales. This is a Packaged Length product.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: AZT00029 Saint Gobain
Brand: Tygon
Series: A-60-C
Hose Color(s): White/Off-White
Internal Diameter: 0.375in
Outer Diameter: 0.625in
Tubing Construction: Special Proprietary

SPECIFICATIONS

Application: Clean-in-place and steam-in-place cleaning and sterilization systems. SAE Rating: N/A
Other Ratings: N/A Tube: Tygon® A-60-C
Reinforcement: N/A Cover: N/A
Temperature Range: Temperature resistant from -75°F to 275°F (-59° C to 135° C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Literature: Tygon® A-60-C Cleaning Chemical Dispensing Tubing (PDF)
Other Features:
  • Long flex life in peristaltic pumps
  • Compatible with virtually all common sanitizers and cleaners
  • Ozone and UV light resistant
  • Repeatedly autoclavable
  • Chemically compatible with a wide range of food types and cleaners
  • WARNING: Tygon® A-60-C Cleaning Chemical Dispensing Tubing is not intended as an implant material.
Part Number Inside Diameter
(in.)		 Outside Diameter
(in.)		 Wall Thickness
(in.)		 Min.
Bend Radius
(in.)		 Max. Working
Pressure* 		Vaccum Pressure
Rating 		Length
at 73°F (PSI) at 180°F (PSI) at 73°F (PSI) at 180°F (PSI)
AZT00003 1/16" 3/16" 1/16" 1/4" 34 PSI 21 PSI 29.9 inHg 29.9 inHg 50ft
AZT00007 1/8" 1/4" 1/16" 1/2" 19 PSI 12 PSI 29.9 inHg 29.9 inHg 50ft
AZT00012 3/16" 5/16" 1/16" 3/4" 13 PSI 8 PSI 29.9 inHg 23.0 inHg 50ft
AZT00017 1/4" 3/8" 1/16" 1-1/4" 10 PSI 6 PSI 26.0 inHg 13.0 inHg 50ft
AZT00019 1/4" 1/2" 1/8" 3/4" 19 PSI 12 PSI 29.9 inHg 29.9 inHg 50ft
AZT00022 5/16" 7/16" 1/16" 1-1/2" 8 PSI 5 PSI 17.0 inHg 8.0 inHg 50ft
AZT00027 3/8" 1/2" 1/16" 2-1/4" 7 PSI 4 PSI 11.0 inHg 5.0 inHg 50ft
AZT00029 3/8" 5/8" 1/8" 1-1/4" 13 PSI 8 PSI 29.9 inHg 23.0 inHg 50ft
AZT00038 1/2" 3/4" 1/8" 2" 10 PSI 6 PSI 26.0 inHg 13.0 inHg 50ft
AZT00046 5/8" 7/8" 1/8" 3-1/4" 8 PSI 5 PSI 17.0 inHg 8.0 inHg 50ft
AZT00053 3/4" 1" 1/8" 4" 7 PSI 4 PSI 11.0 inHg 5.0 inHg 50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
