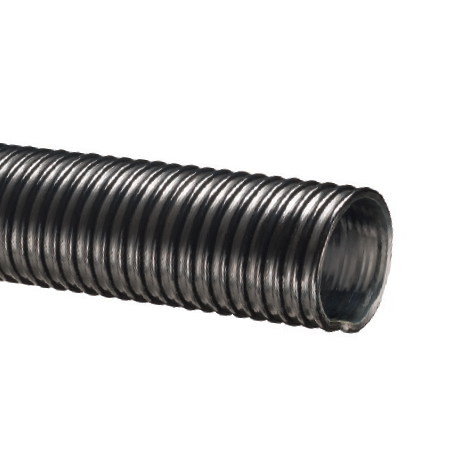

UBK500X100 Kuriyama Tigerflex UBK Series Heavy Duty Polyurethane Lined Material Handling Hose - 5" - 100ft

UBK500X100 Tigerflex by Kuriyama | UBK Series | Heavy Duty Lined Material Handling Hose | 5" ID | Polyurethane | 100ft Length

Save $1,102.08

$3,857.28

$3,857.28 - $3,857.28

$3,857.28

$2,755.20

$2,755.20 - $2,755.20

$2,755.20

Kuriyama Tigerflex UBK™ Series Extra Heavy Duty Polyurethane Lined Material Handling Hose

Package Quantity: 100 FT

Specifications for Variant SKU: UBK500X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	UBK Series
Hose Color(s):	Black
Internal Diameter:	5in
Outer Diameter:	5.69in
Tubing Construction:	Polyurethane
Cover Construction:	PVC
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Conductive Hose Cover, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Agricultural dry fertilizers, Air seeder lines, Fly ash collection, Industrial vacuum equipment, Material handling - heavy duty abrasive, Milling machine scrap recovery, Shot blast recovery, Rock, gravel, sand and crushed concrete vacuuming	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane
Reinforcement:	Rigid PVC Helix	Cover:	PVC
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Thick Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses. Static Dissipative Cover - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle. Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Min. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
UBK200X100	2"	50.8mm	2.40"	61.0mm	40 PSI	15 PSI	Full	28 in. Hg	2"	100ft	0.59 lbs
UBK200X50	2"	50.8mm	2.40"	61.0mm	40 PSI	15 PSI	Full	28 in. Hg	2"	50ft	0.59 lbs
UBK250X100	2-1/2"	63.5mm	3.07"	78.0mm	40 PSI	15 PSI	Full	28 in. Hg	4"	100ft	0.79 lbs
UBK250X50	2-1/2"	63.5mm	3.07"	78.0mm	40 PSI	15 PSI	Full	28 in. Hg	4"	50ft	0.79 lbs
UBK300X100	3"	76.2mm	3.64"	92.5mm	40 PSI	15 PSI	Full	28 in. Hg	4"	100ft	0.83 lbs
UBK300X50	3"	76.2mm	3.64"	92.5mm	40 PSI	15 PSI	Full	28 in. Hg	4"	50ft	0.83 lbs
UBK400X100	4"	101.6mm	4.76"	120.9mm	35 PSI	13 PSI	Full	28 in. Hg	6"	100ft	1.37 lbs
UBK400X50	4"	101.6mm	4.76"	120.9mm	35 PSI	13 PSI	Full	28 in. Hg	6"	50ft	1.37 lbs
UBK500X100	5"	127.0mm	5.69"	144.5mm	30 PSI	10 PSI	28 in. Hg	15 in. Hg	10"	100ft	2.28 lbs
UBK500X50	5"	127.0mm	5.69"	144.5mm	30 PSI	10 PSI	28 in. Hg	15 in. Hg	10"	50ft	2.28 lbs
UBK600X100	6"	152.4mm	6.81"	173.0mm	30 PSI	10 PSI	28 in. Hg	15 in. Hg	12"	100ft	3.10 lbs
UBK600X50	6"	152.4mm	6.81"	173.0mm	30 PSI	10 PSI	28 in. Hg	15 in. Hg	12"	50ft	3.10 lbs
UBK800X50	8"	203.2mm	9.02"	229.0mm	30 PSI	10 PSI	28 in. Hg	15 in. Hg	15"	50ft	4.51 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
