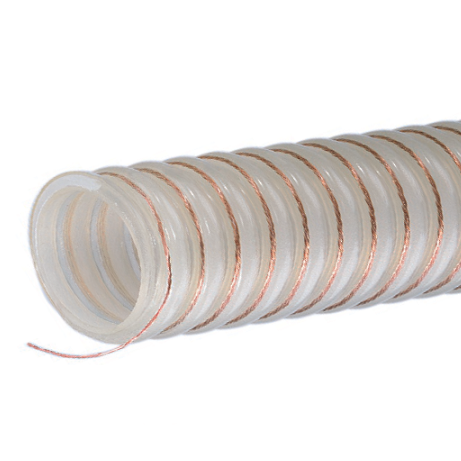

UVPE250X100 Kuriyama Tigerflex UVPE Series Heavy Duty Polyurethane Material Handling Hose With Grounding Wire - 2-1/2" - 100ft

UVPE250X100 Tigerflex by Kuriyama | UVPE Series | Heavy Duty Material Handling Hose With Grounding Wire | 2-1/2" ID | Polyurethane | 100ft Length

Save $235.25

$2,365.92

$2,365.92 - $2,365.92

$2,365.92

$2,130.67

$2,130.67 - $2,130.67

$2,130.67

Kuriyama Tigerflex UVPE™ Series Heavy Duty Polyurethane Material Handling Hose With Grounding Wire

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: UVPE250X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	UVPE Series
Hose Color(s):	White/Off-White
Internal Diameter:	2.50in
Outer Diameter:	2.99in
Tubing Construction:	Polyurethane
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Material handling - heavy duty abrasive, Plastic processing equipment	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane
Reinforcement:	Rigid Polypropylene Helix	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Thick Abrasion Resistant Polyurethane Tube - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses. Crush Resistant Construction - Hose rebounds to shape without structural damage when crushed; material keeps flowing. Grounding Wire - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Convoluted Outer Cover - Provides increased hose flexibility. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
UVPE150X100	1-1/2"	38.1mm	1.87"	47.5mm	20 PSI	7 PSI	22 in. Hg	14 in. Hg	3"	100ft	0.39 lbs
UVPE200X100	2"	50.8mm	2.44"	62.0mm	15 PSI	6 PSI	21 in. Hg	12 in. Hg	4"	100ft	0.48 lbs
UVPE250X100	2-1/2"	63.5mm	2.99"	75.9mm	10 PSI	5 PSI	19 in. Hg	10 in. Hg	5"	100ft	0.55 lbs
UVPE300X100	3"	76.2mm	3.64"	92.5mm	10 PSI	5 PSI	18 in. Hg	10 in. Hg	6"	100ft	0.68 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
