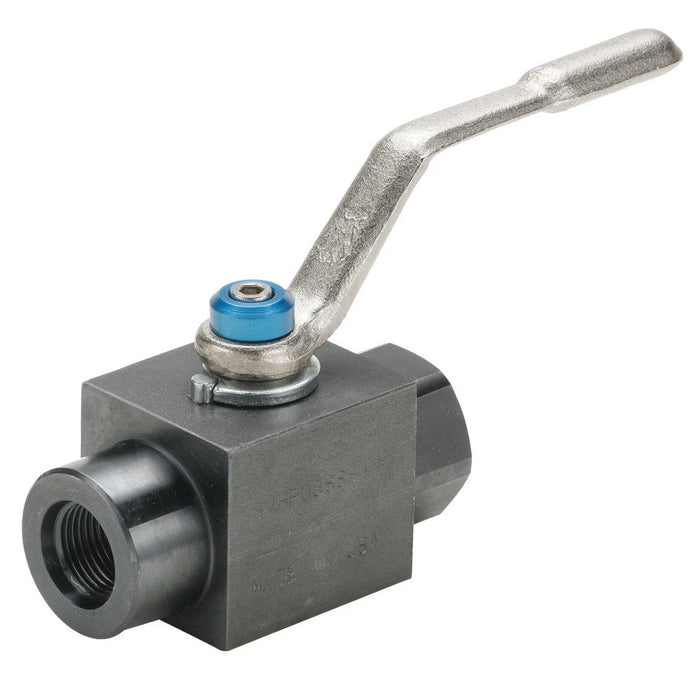

V506HP-12 by Parker | Ball Valve | 1-1/16" SAE J1926-1 Thread | 8.90" Length | Straight | Carbon Steel

Save $12.74

$140.11

$140.11 - $140.11

$140.11

$127.37

$127.37 - $127.37

$127.37

by Parker Hannifin
Ball Valves Carbon Steel Series 500HP, 506HP:6000 PSI Female-Female Straight Thread Ends V506HP

Quantity

More payment options

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: V506HP-12 Parker
Series:	V506HP Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel, Delrin, Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Coated, Valved

Specification:
Product Features:	Carbon Steel Phosphate Coated body Steel ball Delrin with Molybdenum Disulphide Seats Nitrile O-rings Stem Seals Steel handle
Style:	V-Valve VP-Valve, padlocking handle
Type:	500-Female/Female NPT Ports 506-Female/Female SAE Straight Thread Ports
Material:	HP-High Pressure Carbon Steel
Temperature Range:	-10° to +210° F (-23.3° to 98.8° C)
Pressure Range:	6000 PSI (413.6 bar)* (Dependent on size) 7250 PSI (9.9 bar) (*Dependent on size)


Part Number	SAE J1926-1 Thread	B	C	H	L	M	N	Flow Diameter (D)
V506HP-12	1-1/16"-12 UNF	.66"	2.24"	6.73"	2.44"	3.75"	4.94"	.790"
V506HP-20	1-5/8"-12 UNF	.61"	3.38"	12.05"	3.15"	4.37"	6.99"	1.18"
V506HP-24	1-7/8"-12 UNF	.89"	3.98"	12.05"	3.35"	5.12"	7.66"	1.50"
V506HP-32	2-1/2"-12 UNF	.78"	4.61"	12.05"	3.94"	5.50"	8.21"	1.77"
