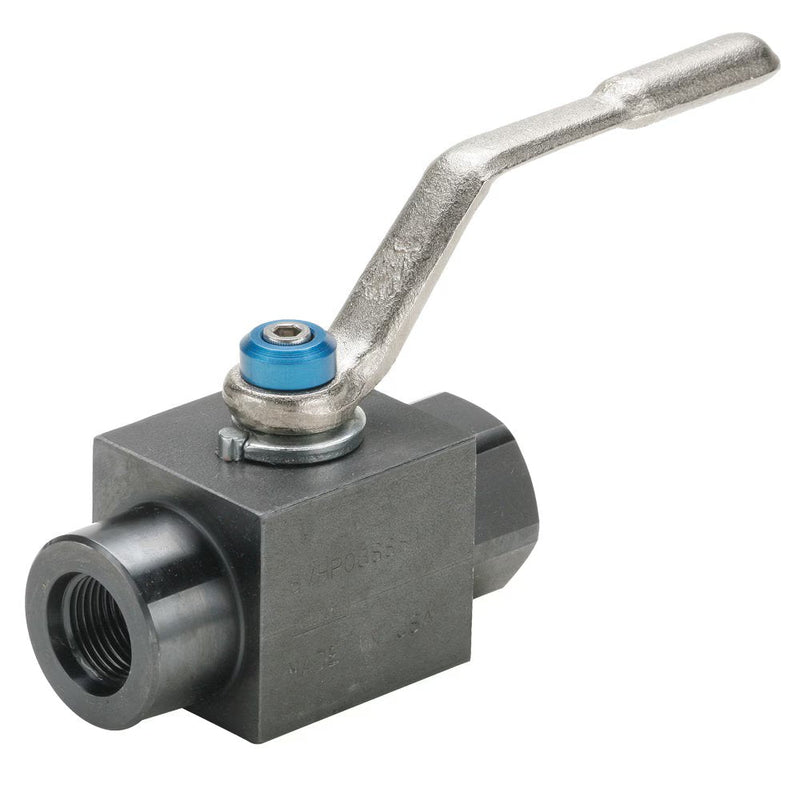

V506HP-20 by Parker | Ball Valve | 1-5/8" SAE J1926-1 Thread | 12.42" Length | Straight | Carbon Steel

Save $11.89

$326.58

$326.58 - $326.58

$326.58

$314.69

$314.69 - $314.69

$314.69

by Parker Hannifin
Ball Valves Carbon Steel Series 500HP, 506HP:6000 PSI Female-Female Straight Thread Ends V506HP

Quantity

Specifications for Variant SKU: V506HP-20 Parker
Series:	V506HP Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel, Delrin, Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Coated, Valved

Specification:
Product Features:	Carbon Steel Phosphate Coated body Steel ball Delrin with Molybdenum Disulphide Seats Nitrile O-rings Stem Seals Steel handle
Style:	V-Valve VP-Valve, padlocking handle
Type:	500-Female/Female NPT Ports 506-Female/Female SAE Straight Thread Ports
Material:	HP-High Pressure Carbon Steel
Temperature Range:	-10° to +210° F (-23.3° to 98.8° C)
Pressure Range:	6000 PSI (413.6 bar)* (Dependent on size) 7250 PSI (9.9 bar) (*Dependent on size)


Part Number	SAE J1926-1 Thread	B	C	H	L	M	N	Flow Diameter (D)
V506HP-12	1-1/16"-12 UNF	.66"	2.24"	6.73"	2.44"	3.75"	4.94"	.790"
V506HP-20	1-5/8"-12 UNF	.61"	3.38"	12.05"	3.15"	4.37"	6.99"	1.18"
V506HP-24	1-7/8"-12 UNF	.89"	3.98"	12.05"	3.35"	5.12"	7.66"	1.50"
V506HP-32	2-1/2"-12 UNF	.78"	4.61"	12.05"	3.94"	5.50"	8.21"	1.77"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
