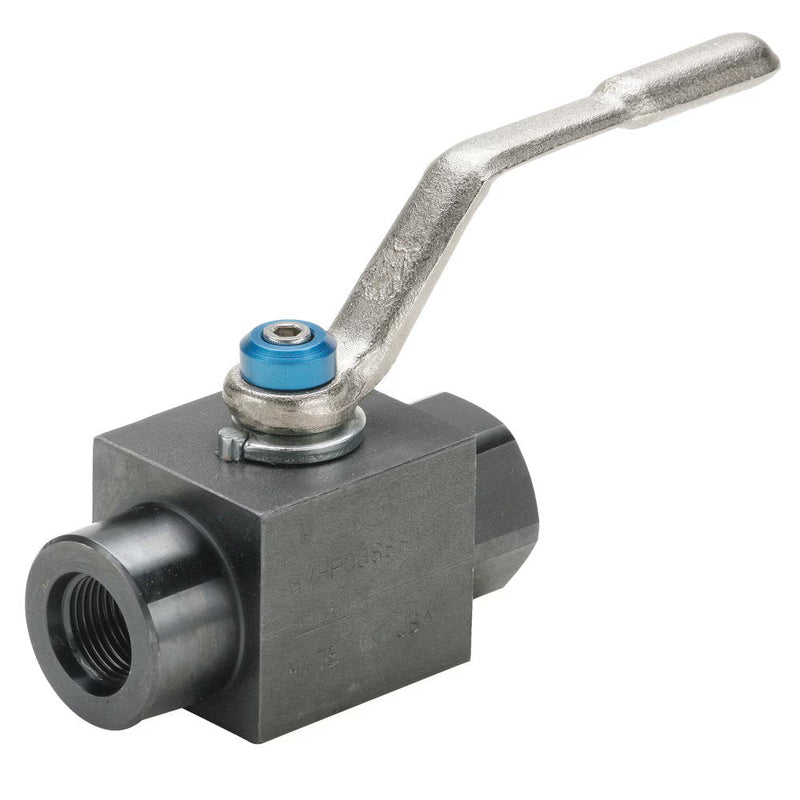

V506HP-24 by Parker | Ball Valve | 1-7/8" SAE J1926-1 Thread | 12.66" Length | Straight | Carbon Steel

Save $15.61

$429.36

$429.36 - $429.36

$429.36

$413.75

$413.75 - $413.75

$413.75

by Parker Hannifin
Ball Valves Carbon Steel Series 500HP, 506HP:6000 PSI Female-Female Straight Thread Ends V506HP

Quantity

Specifications for Variant SKU: V506HP-24 Parker
Series:	V506HP Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel, Delrin, Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Coated, Valved

Specification:
Product Features:	Carbon Steel Phosphate Coated body Steel ball Delrin with Molybdenum Disulphide Seats Nitrile O-rings Stem Seals Steel handle
Style:	V-Valve VP-Valve, padlocking handle
Type:	500-Female/Female NPT Ports 506-Female/Female SAE Straight Thread Ports
Material:	HP-High Pressure Carbon Steel
Temperature Range:	-10° to +210° F (-23.3° to 98.8° C)
Pressure Range:	6000 PSI (413.6 bar)* (Dependent on size) 7250 PSI (9.9 bar) (*Dependent on size)


Part Number	SAE J1926-1 Thread	B	C	H	L	M	N	Flow Diameter (D)
V506HP-12	1-1/16"-12 UNF	.66"	2.24"	6.73"	2.44"	3.75"	4.94"	.790"
V506HP-20	1-5/8"-12 UNF	.61"	3.38"	12.05"	3.15"	4.37"	6.99"	1.18"
V506HP-24	1-7/8"-12 UNF	.89"	3.98"	12.05"	3.35"	5.12"	7.66"	1.50"
V506HP-32	2-1/2"-12 UNF	.78"	4.61"	12.05"	3.94"	5.50"	8.21"	1.77"
