VLT-SD300X100 Kuriyama Tigerflex VLT Series Heavy Duty Food Grade Static Dissipative Polyurethane Fabric Reinforced Material Handling Hose - 3" - 100ft

VLT-SD300X100 Tigerflex by Kuriyama | VLT Series | Heavy Duty Food Grade Static Dissipative Fabric Reinforced Material Handling Hose | 3" ID | Polyurethane | 100ft Length

Save $359.97

$3,602.97

$3,602.97 - $3,602.97

$3,602.97

$3,243.00

$3,243.00 - $3,243.00

$3,243.00

Kuriyama Tigerflex VLT-SD™ Series Heavy Duty Food Grade Static Dissipative Polyurethane Fabric Reinforced Material Handling Hose

Package Quantity: 100 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: VLT-SD300X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	VLT-SD Series
Hose Color(s):	Black & Clear/Semi-Clear & Orange
Internal Diameter:	3in
Outer Diameter:	3.78in
Tubing Construction:	Static Dissipating Polyurethane
Applicable Specs & Approvals:	Applicable FDA Requirements, RoHS Compliant
Special Properties:	Conductive Tube, Ground Wire in Hose, Outer Helix Protection

Other Features:

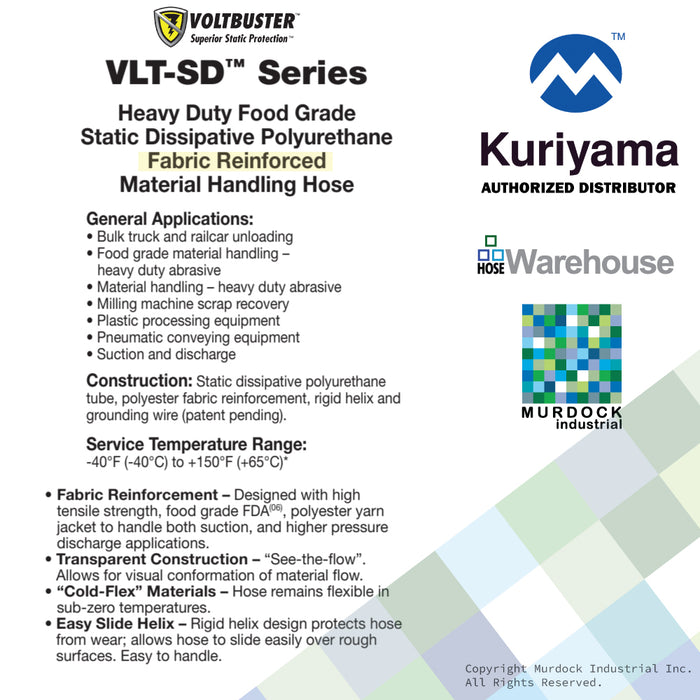

Application:	Food Grade Material Handling, Material Handling, Bulk Truck and Railcar Unloading, Suction and Discharge, Milling Machine Scrap Recovery, Plastic Processing Equipment,Pneumatic Conveying Equipment	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Static Dissipative Polyurethane
Reinforcement:	Polyester Fabric Reinforcement, Rigid Helix and Grounding Wire (patent pending)	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	BSE/TSE(02), FDA(05), FDA(06), RoHS(10)

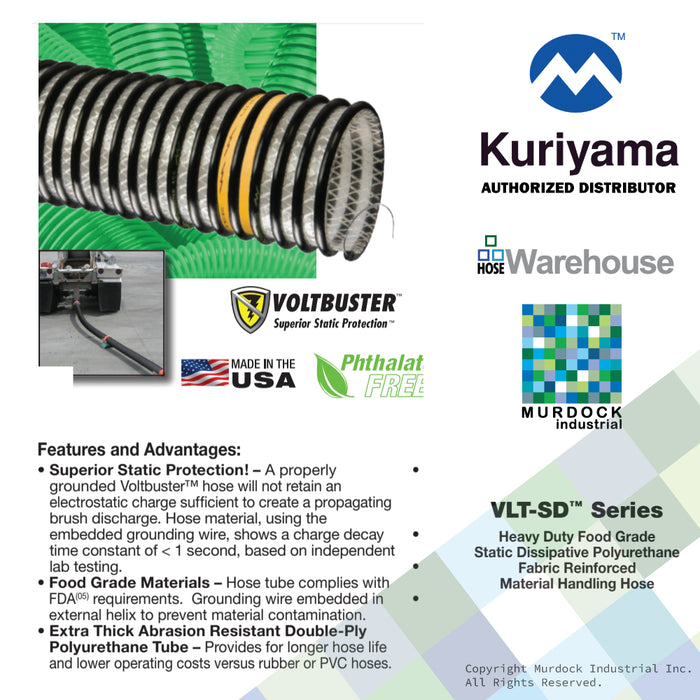

Superior Static Protection! - A properly grounded Voltbuster™ hose will not retain an electrostatic charge suffi cient to create a propagating brush discharge. Hose material, using the embedded grounding wire, shows a charge decay time constant of < 1 second, based on independent lab testing. Food Grade Materials - Hose tube complies with FDA(05) requirements. Grounding wire embedded in external helix to prevent material contamination. Extra Thick Abrasion Resistant Double-Ply Polyurethane Tube - Provides for longer hose life and lower operating costs versus rubber or PVC hoses. Fabric Reinforcement - designed with high tensile strength, food grade FDA(06), polyester yarn jacket to handle both suction, and higher pressure discharge applications. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Easy Slide Helix - Rigid helix design protects hose from wear; allows hose to slide easily over rough surfaces. Easy to handle. Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.

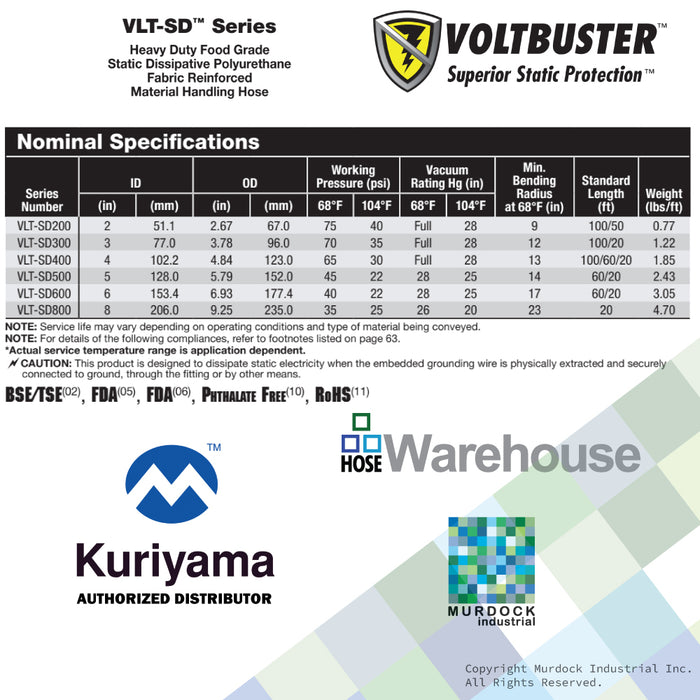

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Min. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
VLT-SD200X50	2"	51.1mm	2.67"	67.0mm	75 PSI	40 PSI	Full	28in. Hg	9"	50ft
VLT-SD200X100	2"	51.1mm	2.67"	67.0mm	75 PSI	40 PSI	Full	28in. Hg	9"	100ft
VLT-SD300X100	3"	77.0mm	3.78"	96.0mm	70 PSI	35 PSI	Full	28in. Hg	12"	100ft	1.22 lbs
VLT-SD300X20	3"	77.0mm	3.78"	96.0mm	70 PSI	35 PSI	Full	28in. Hg	12"	20ft	1.22 lbs
VLT-SD400X100	4"	102.2mm	4.84"	123.0mm	65 PSI	30 PSI	Full	28in. Hg	13"	100ft	1.85 lbs
VLT-SD400X60	4"	102.2mm	4.84"	123.0mm	65 PSI	30 PSI	Full	28in. Hg	13"	60ft	1.85 lbs
VLT-SD400X20	4"	102.2mm	4.84"	123.0mm	65 PSI	30 PSI	Full	28in. Hg	13"	20ft	1.85 lbs
VLT-SD500X60	5"	128.0mm	5.79"	152.0mm	45 PSI	22 PSI	28in. Hg	25in. Hg	14"	60ft	2.43 lbs
VLT-SD500X20	5"	128.0mm	5.79"	152.0mm	45 PSI	22 PSI	28in. Hg	25in. Hg	14"	20ft	2.43 lbs
VLT-SD600X60	6"	153.4mm	6.93"	177.4mm	40 PSI	22 PSI	28in. Hg	25in. Hg	17"	60ft	3.05 lbs
VLT-SD600X20	6"	153.4mm	6.93"	177.4mm	40 PSI	22 PSI	28in. Hg	25in. Hg	17"	20ft	3.05 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fi tting or by other means.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
