VOLT300X60 Kuriyama Tigerflex VOLT Series Heavy Duty Food Grade Static Dissipative Polyurethane Material Handling Hose - 3" - 60ft

VOLT300X60 Tigerflex by Kuriyama | VOLT Series | Heavy Duty Food Grade Static Dissipative Material Handling Hose | 3" ID | Polyurethane | 60ft Length

Save $154.67

$1,551.11

$1,551.11 - $1,551.11

$1,551.11

$1,396.44

$1,396.44 - $1,396.44

$1,396.44

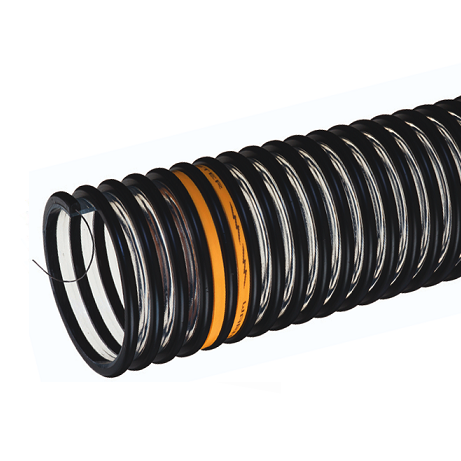

Kuriyama Tigerflex Volt™ Series Heavy Duty Food Grade Static Dissipative Polyurethane Material Handling Hose With Grounding Wire

Package Quantity: 60 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: VOLT300X60 Kuriyama \| 60 \|
Brand:	Tigerflex
Series:	VOLT Series
Hose Color(s):	Black & Clear/Semi-Clear & Orange
Internal Diameter:	3in
Outer Diameter:	3.60in
Tubing Construction:	Static Dissipating Polyurethane
Applicable Specs & Approvals:	Applicable FDA Requirements, RoHS Compliant
Special Properties:	Conductive Tube, Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Other Features:

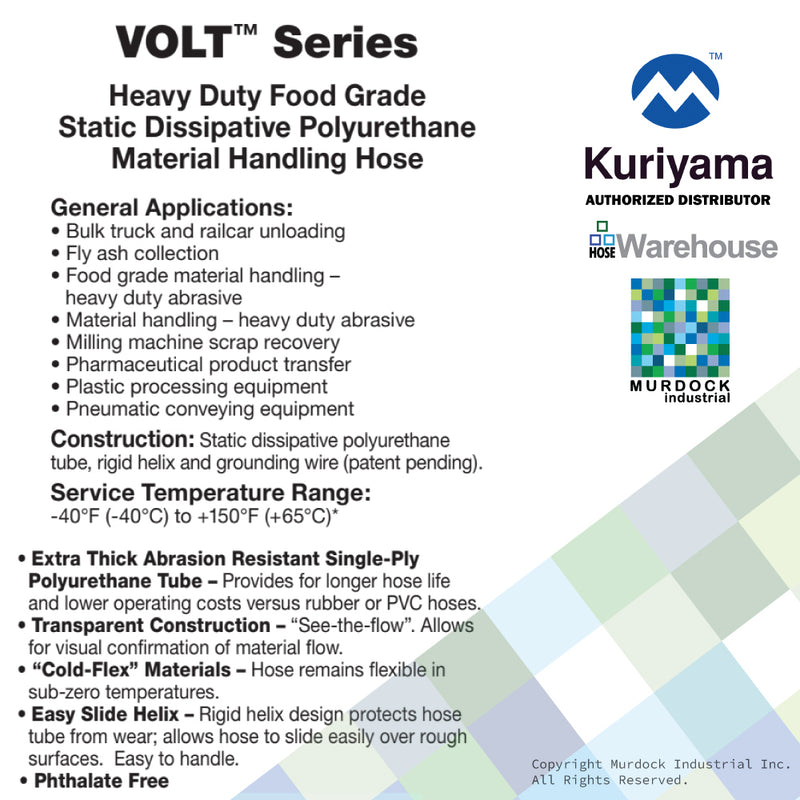

Application:	Food Grade Material Handling, Material Handling, Pharmaceutical Product Transfer, Plastic Processing Equipment, Bulk Truck and Railcar Unloading, Fly Ash Collection, Pneumatic Conveying Equipment, Milling Machine Scrap Recovery	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Static Dissipative Polyurethane
Reinforcement:	Rigid Helix and Grounding Wire	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	BSE/TSE(02), FDA(05), RoHS(10)

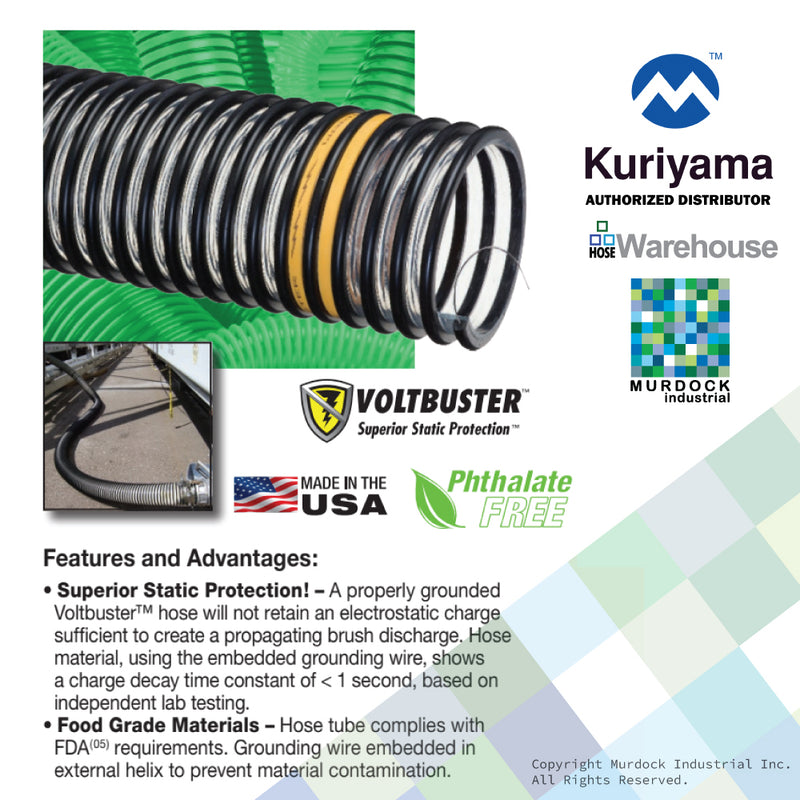

Superior Static Protection! - A properly grounded Voltbuster™ hose will not retain an electrostatic charge sufficient to create a propagating brush discharge. Hose material, using the embedded grounding wire, shows a charge decay time constant of < 1 second, based on independent lab testing. Food Grade Materials - Hose cover complies with applicable FDA(03) requirements. Hose liner complies with applicable FDA(05) requirements. Grounding wire embedded in external helix to prevent material contamination. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. Extra Thick Abrasion Resistant Single-Ply Polyurethane Tube - Provides for longer hose life and lower operating costs versus rubber or PVC hoses. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Easy Slide Helix - Rigid helix design protects hose tube from wear; allows hose to slide easily over rough surfaces. Easy to handle. Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.

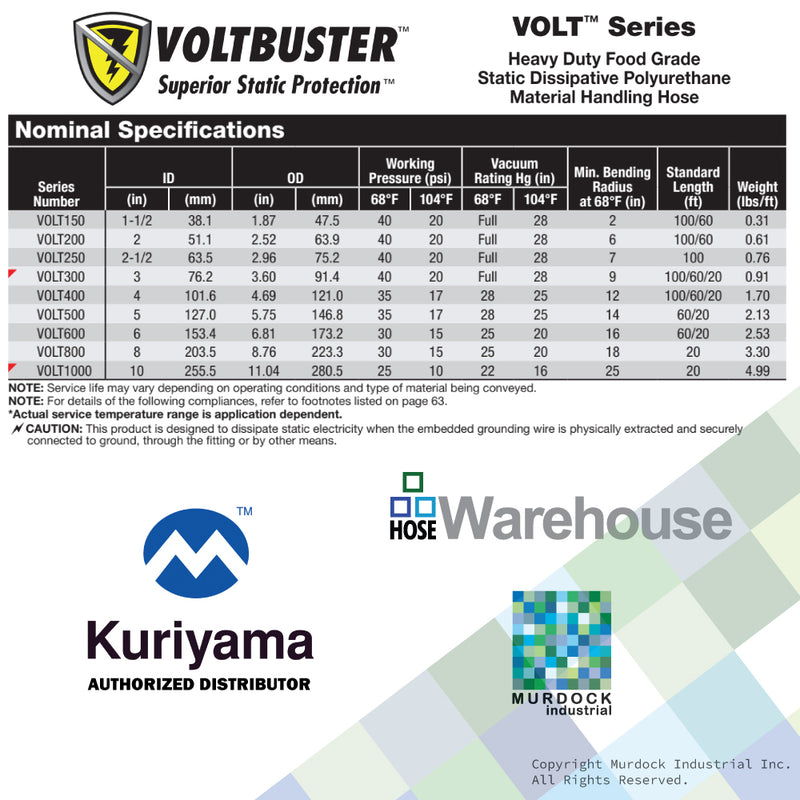

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Min. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
VOLT150X100	1-1/2"	38.35mm	1.87"	47.5mm	40 PSI	20 PSI	Full	28in. Hg	2"	100ft	0.31 lbs
VOLT150X60	1-1/2"	38.35mm	1.87"	47.5mm	40 PSI	20 PSI	Full	28in. Hg	2"	100ft	0.31 lbs
VOLT200X100	2"	51.1mm	2.52"	63.9mm	40 PSI	20 PSI	Full	28in. Hg	6"	100ft	0.61 lbs
VOLT200X60	2"	51.1mm	2.52"	63.9mm	40 PSI	20 PSI	Full	28in. Hg	6"	60ft	0.61 lbs
VOLT250X100	2-1/2"	63.75mm	2.96"	75.2mm	40 PSI	20 PSI	Full	28in. Hg	7"	100ft	0.76 lbs
VOLT300X100	3"	76.2mm	3.60"	91.4mm	40 PSI	20 PSI	Full	28in. Hg	9"	100ft	0.91 lbs
VOLT300X60	3"	76.2mm	3.60"	91.4mm	40 PSI	20 PSI	Full	28in. Hg	9"	60ft	0.91 lbs
VOLT400X100	4"	101.6mm	4.69"	121.0mm	35 PSI	17 PSI	28in. Hg	25in. Hg	12"	100ft	1.70 lbs
VOLT400X60	4"	101.6mm	4.69"	121.0mm	35 PSI	17 PSI	28in. Hg	25in. Hg	12"	60ft	1.70 lbs
VOLT400X20	4"	101.6mm	4.69"	121.0mm	35 PSI	17 PSI	28in. Hg	25in. Hg	12"	20ft	1.70 lbs
VOLT500X60	5"	127.0mm	5.75"	146.8mm	35 PSI	17 PSI	28in. Hg	25in. Hg	14"	60ft	2.13 lbs
VOLT500X20	5"	127.0mm	5.75"	146.8mm	35 PSI	17 PSI	28in. Hg	25in. Hg	14"	20ft	2.13 lbs
VOLT600X60	6"	153.4mm	6.81"	173.2mm	30 PSI	15 PSI	25in. Hg	20in. Hg	16"	60ft	2.53 lbs
VOLT600X20	6"	153.4mm	6.81"	173.2mm	30 PSI	15 PSI	25in. Hg	20in. Hg	16"	20ft	2.53 lbs
VOLT800X60	8"	203.5mm	8.76"	223.3mm	30 PSI	15 PSI	25in. Hg	20in. Hg	18"	60ft	3.30 lbs
VOLT800X20	8"	203.5mm	8.76"	223.3mm	30 PSI	15 PSI	25in. Hg	20in. Hg	18"	20ft	3.30 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
