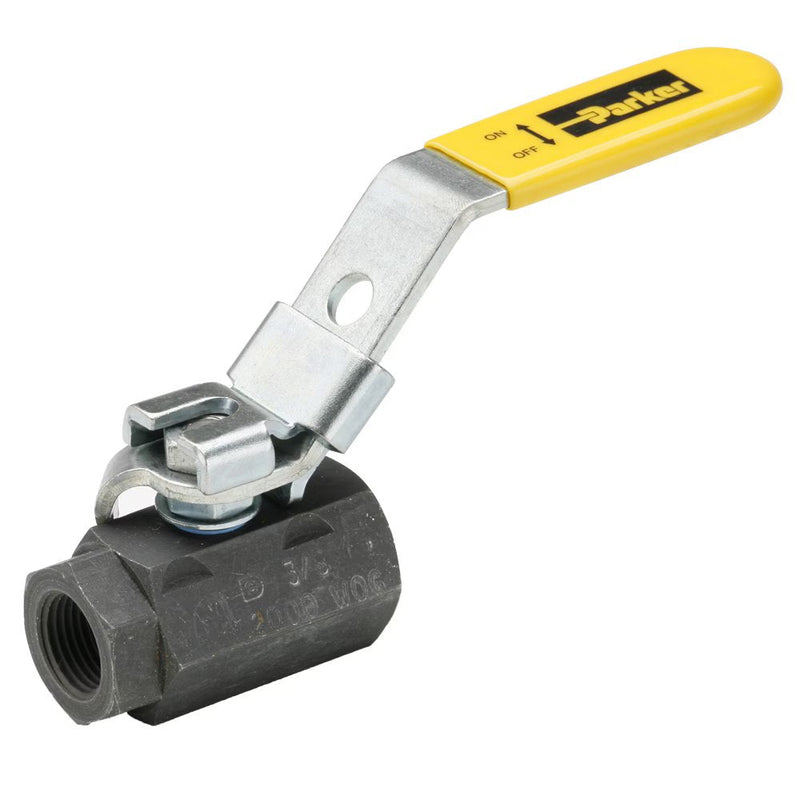

VP500CS-12 by Parker | Ball Valves | 3/4" Female Pipe Thread | 1-5/8" Hex (B) | 1-3/8" Hex (C) | 6.50" Length | Straight | Carbon Steel

Save $50.58

$126.45

$126.45 - $126.45

$126.45

$75.87

$75.87 - $75.87

$75.87

by Parker Hannifin
Ball Valves Carbon Steel Series 500CS/502CS:Locking Handle, Female Pipe Ends VP500CS

Quantity

Specifications for Variant SKU: VP500CS-12 Parker
Series:	VP500CS Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel, Steel
Seal Material(s):	PTFE

Specification:
Product Features:	Carbon Steel Phosphate Coated body Steel ball PTFE seats/seals Steel handle
Style:	V-Valve VP-Valve, padlocking handle
Type:	500-Female/Female 502-Female/Female
Material:	CS-Carbon Steel
Temperature Range:	-20° to +425° F (-28.8° to +218.3° C)
Pressure Range:	1/4” – 1”: 2000 PSI (137.8 bar) 1 1/4” – 2”: 1500 PSI (103.4 bar) Saturated Steam up to 150 PSI (10.3 bar)


Part Number	Pipe Thread	Hex (B)	Hex (C)	H	L	M	N	Flow Diameter (D)
VP500CS-4	1/4"	1-1/16"	15/16"	4.13"	1.00"	2.00"	2.23"	.400"
VP500CS-6	3/8"	1-1/16"	15/16"	4.13"	1.00"	2.00"	2.23"	.400"
VP500CS-8	1/2"	1-1/4"	1-1/16"	4.13"	1.25"	2.37"	2.33"	.540"
VP500CS-12	3/4"	1-5/8"	1-3/8"	5.00"	1.50"	2.90"	2.80"	.680"
VP500CS-16	1"	2"	1-5/8"	5.00"	1.50"	2.90"	3.41"	.880"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
