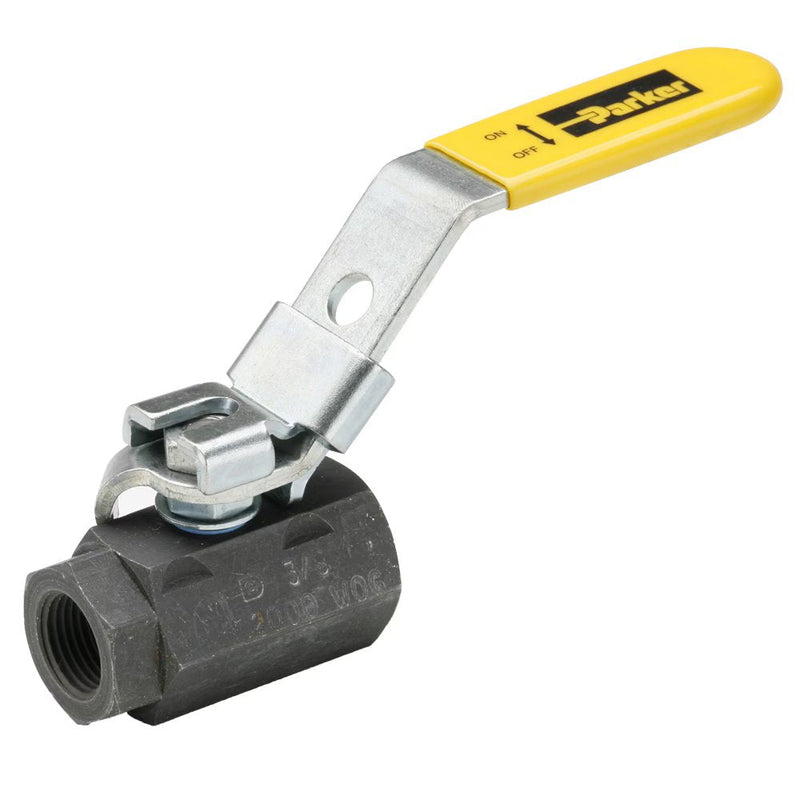

VP500CS-6 by Parker | Ball Valves | 3/8" Female Pipe Thread | 1-1/16" Hex (B) | 15/16" Hex (C) | 5.13" Length | Straight | Carbon Steel

Save $34.05

$85.13

$85.13 - $85.13

$85.13

$51.08

$51.08 - $51.08

$51.08

by Parker Hannifin
Ball Valves Carbon Steel Series 500CS/502CS:Locking Handle, Female Pipe Ends VP500CS

Quantity

Specifications for Variant SKU: VP500CS-6 Parker
Series:	VP500CS Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel, Steel
Seal Material(s):	PTFE

Specification:
Product Features:	Carbon Steel Phosphate Coated body Steel ball PTFE seats/seals Steel handle
Style:	V-Valve VP-Valve, padlocking handle
Type:	500-Female/Female 502-Female/Female
Material:	CS-Carbon Steel
Temperature Range:	-20° to +425° F (-28.8° to +218.3° C)
Pressure Range:	1/4” – 1”: 2000 PSI (137.8 bar) 1 1/4” – 2”: 1500 PSI (103.4 bar) Saturated Steam up to 150 PSI (10.3 bar)


Part Number	Pipe Thread	Hex (B)	Hex (C)	H	L	M	N	Flow Diameter (D)
VP500CS-4	1/4"	1-1/16"	15/16"	4.13"	1.00"	2.00"	2.23"	.400"
VP500CS-6	3/8"	1-1/16"	15/16"	4.13"	1.00"	2.00"	2.23"	.400"
VP500CS-8	1/2"	1-1/4"	1-1/16"	4.13"	1.25"	2.37"	2.33"	.540"
VP500CS-12	3/4"	1-5/8"	1-3/8"	5.00"	1.50"	2.90"	2.80"	.680"
VP500CS-16	1"	2"	1-5/8"	5.00"	1.50"	2.90"	3.41"	.880"
