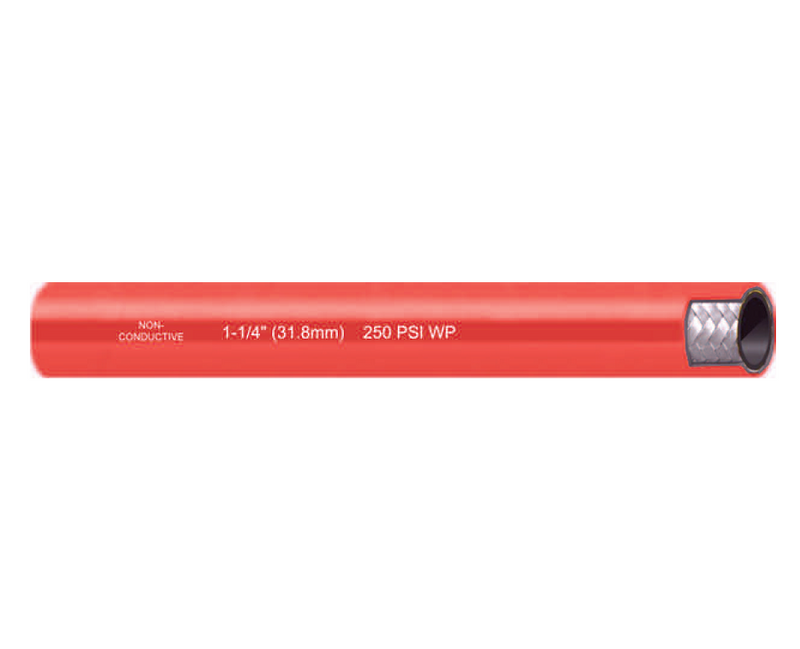

1-1/4X2 3284H by Couplamatic | Hydraulic Return Line Hose | Two Fiber Braid | Red | 1-1/4" ID | 400ft

$4,420.74 - $4,420.74

$4,420.74

$4,448.00

$4,448.00 - $4,448.00

$4,448.00

Couplamatic Inc
Two Fiber Braid - 3284H Hydraulic Return Line Hose

Package Quantity: 400 FT

Quantity

Specifications for Variant SKU: 1-1/4X2 3284H Couplamatic \| 400 \|
Series:	Hydraulic Return Line Hose Series
Hose Color(s):	Red
Dash Size:	-20
Internal Diameter:	1.25in
Compatible with the following Series:	Suction & Return Line Coupling Series

Applications:	Hydraulic Return Line	SAE Rating:	N/A
Cover:	Rubber (Red)	Reinforcement:	Two Fiber Braid
Temperature:	-40F to +200F (-40 to +96C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/2X2 3284H	1/2"	0.875"	300 lbs.	-	7.5"	24 lbs.	500ft
3/4X2 3284H	3/4"	1.156"	300 lbs.	-	11.5"	41 lbs.	500ft
1X2 3284H	1"	1.437"	300 lbs.	-	14"	62 lbs.	450ft
1-1/4X2 3284H	1-1/4"	1.781"	250 lbs.	-	18.5"	84 lbs.	400ft
1-1/2X2 3284H	1-1/2"	2.031"	250 lbs.	-	22"	104 lbs.	300ft
