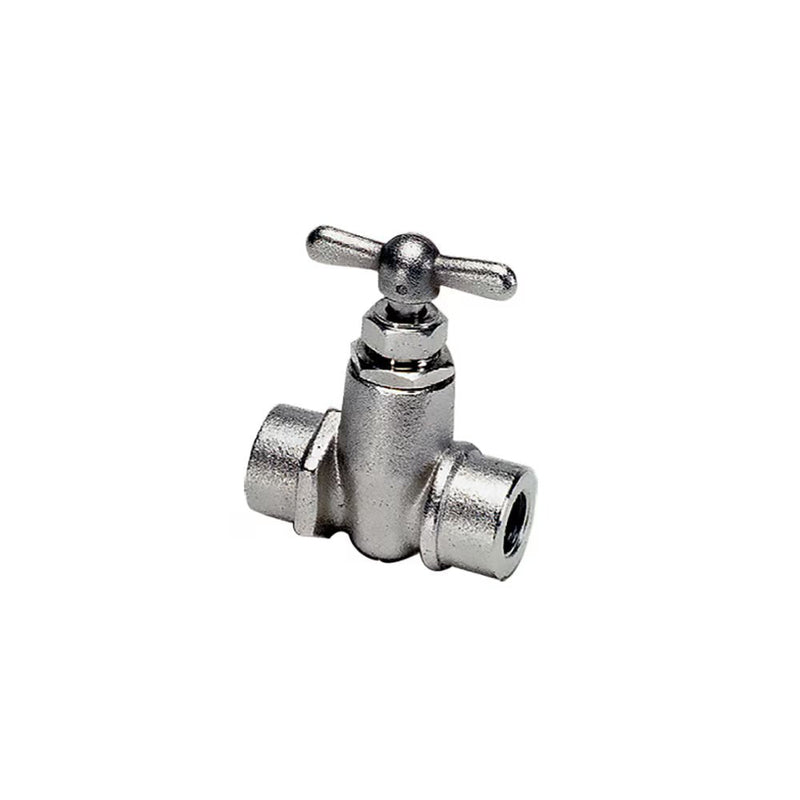

0502 04 10 by Parker | In-Line Needle Valve | 1/8" Female BSPP Thread | Straight | Nickel-Plated Brass

0502 04 10 by Parker | In-Line Needle Valve | 1/8" Female BSPP Thread | Straight | Nickel-Plated Brass

Save $1.17 Save $1.17
$64.08
$64.08 - $64.08
$64.08
$62.91
$62.91 - $62.91
$62.91

by Parker Hannifin
Needle Valve Series:0502 In-Line Needle Valve, Female BSPP Thread
Specifications for Variant SKU: 0501 04 10 Parker
Series: 0502 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Brass
Special Properties: Silicone Free, Water Hammer Resistance
Technical Characteristics:
  • Compatible Fluids: Compressed air, water, industrial fluids, etc.
  • Working Pressure: 0 to 120 bar
  • Working Temperature: -20°C to +100°C (except model 0510)
Advantages:
  • Manual flow adjustment
  • Numerous valve and safety accessory configurations
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Stem nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Top packing washer: Brass or 316L Stainless Steel (0591)
  • Body: Nickel-plated brass or 316L Stainless Steel (0591)
  • Lever: Zamak, Nickel-plated brass or 316L Stainless Steel (0591)
  • Locking nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Needle: Nickel-plated brass or 316L Stainless Steel (0591)
  • Bottom packing washer: Mineral Fiber
Part Number Diameter Nominal (DN) C E H H (max) J L/2 Kg
0502 04 10 4 mm 1/8" 9 mm 56 mm 50 mm 17 mm 23 mm .133 Kg
0502 04 13 4 mm 1/4" 11 mm 56 mm 50 mm 17 mm 23 mm .120 Kg
