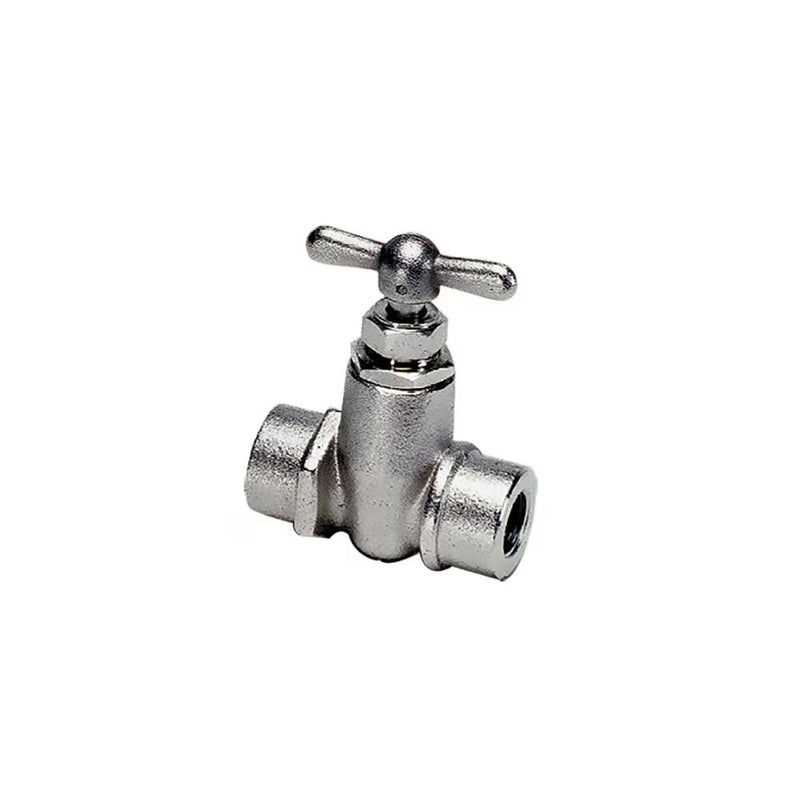

0502 04 13 by Parker | In-Line Needle Valve | 1/4" Female BSPP Thread | Straight | Nickel-Plated Brass

0502 04 13 by Parker | In-Line Needle Valve | 1/4" Female BSPP Thread | Straight | Nickel-Plated Brass | Pack of 10

Save $11.79 Save $11.79
$651.39
$651.39 - $651.39
$651.39
$639.60
$639.60 - $639.60
$639.60

by Parker Hannifin
Needle Valve Series:0502 In-Line Needle Valve, Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0501 04 13 Parker | 10 |
Series: 0502 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Brass
Special Properties: Silicone Free, Water Hammer Resistance
Technical Characteristics:
  • Compatible Fluids: Compressed air, water, industrial fluids, etc.
  • Working Pressure: 0 to 120 bar
  • Working Temperature: -20°C to +100°C (except model 0510)
Advantages:
  • Manual flow adjustment
  • Numerous valve and safety accessory configurations
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Stem nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Top packing washer: Brass or 316L Stainless Steel (0591)
  • Body: Nickel-plated brass or 316L Stainless Steel (0591)
  • Lever: Zamak, Nickel-plated brass or 316L Stainless Steel (0591)
  • Locking nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Needle: Nickel-plated brass or 316L Stainless Steel (0591)
  • Bottom packing washer: Mineral Fiber
Part Number Diameter Nominal (DN) C E H H (max) J L/2 Kg
0502 04 10 4 mm 1/8" 9 mm 56 mm 50 mm 17 mm 23 mm .133 Kg
0502 04 13 4 mm 1/4" 11 mm 56 mm 50 mm 17 mm 23 mm .120 Kg
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
