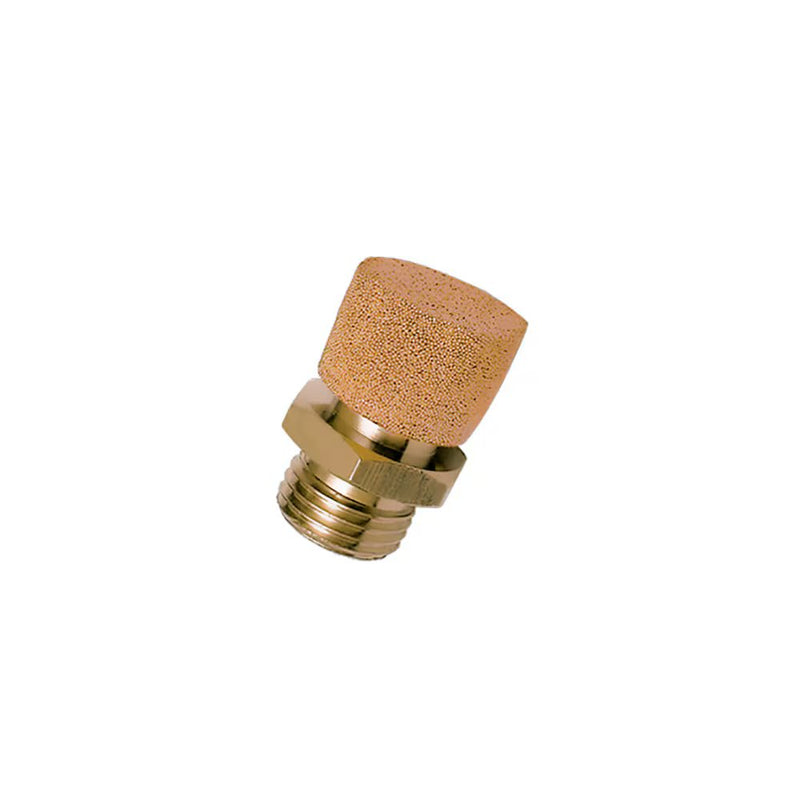

0611 00 22 by Parker | Legris Threaded Silencer | 1/2" Male NPT Thread | 3.07 Length | Polyethylene

0611 00 22 by Parker | Legris Threaded Silencer | 1/2" Male NPT Thread | 3.07 Length | Polyethylene

Save $6.01 Save $6.01
$15.02
$15.02 - $15.02
$15.02
$9.01
$9.01 - $9.01
$9.01

by Parker Hannifin
Silencers:0672 Flow Control Silencer, Male BSPP Thread
Specifications for Variant SKU: 0611 00 22 Parker
Series: 0611 Series
Shape (Orientation): No Orientation
Material(s): Brass, Bronze
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Polyethylene: 0 to 10 bar
    Sintered bronze: 0 to 12 bar
    316L Stainless Steel:     0 to 12 bar
  • Working Temperature: Polyethylene: -10°C to +80°C
    Sintered bronze: -20°C to +150°C
    316L Stainless Steel:     -20°C to +180°C
Advantages:
      3 materials available
      - Polyethylene: optimum exhaust flow rate and noise attention
      - Sintered bronze: robust and economic
      - 316L stainless Steel: increased chemical and mechanical resistance
  • incorporated flow control regulator on 2 versions
Regulations:
  • RoHS
  • PED
  • REACH
  • 2003/10/CE
  • OSHA
Component Materials:
  • Body: Brass (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
  • Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
Part Number NPT (C) E G L Wt (Oz)
0611 00 11 1/8" .24" .49" 1.34" .07 oz
0611 00 14 1/4" .28" .61" 1.67" .11 oz
0611 00 22 1/2" .43" .93" 3.07" .35 oz
Part Number BSPP (C) E G L Wt (Kg)
0674 00 19 M5X0.8 4 mm 6.5 mm 23 mm .001 Kg
0674 00 10 G1/8" 6 mm 12.5 mm 34 mm .002 Kg
0674 00 13 G1/4" 7 mm 15.5 mm 42.5 mm .003 Kg
0674 00 17 G3/8" 11.5 mm 181.5 mm 67.5 mm .006 Kg
0674 00 21 G1/2" 11 mm 23.5 mm 78 mm .010 Kg
0674 00 27 G3/4" 15.5 mm 38.5 mm 131 mm .040 Kg
0674 00 34 G1" 19.5 mm 49 mm 160 mm .050 Kg
