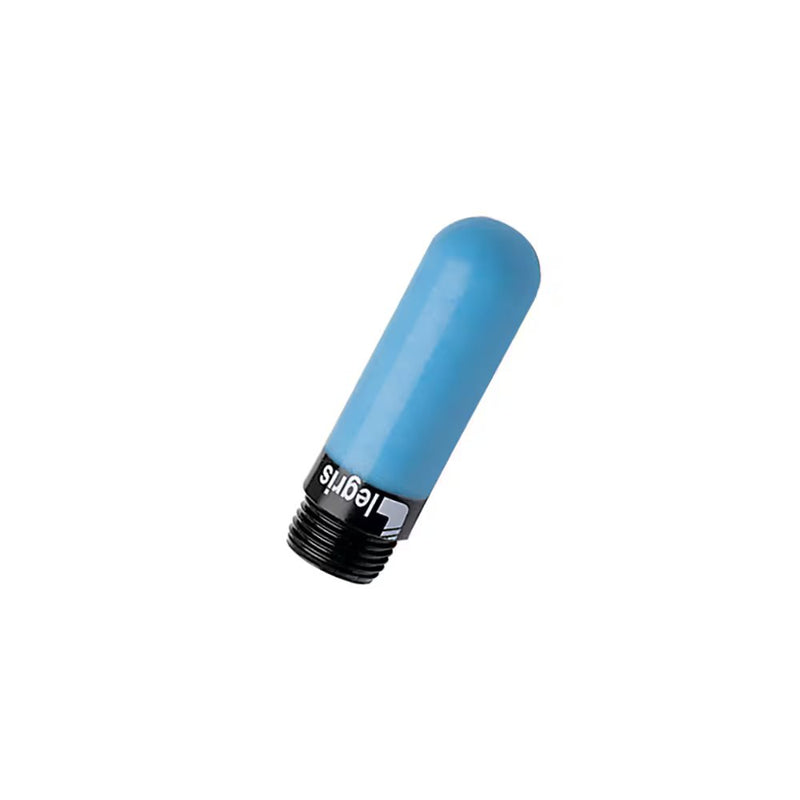

0674 00 21 by Parker | Legris Threaded Silencer | G1/2" Male BSPP Thread | 78 mm Length | Polyethylene | Pack of 5

Save $36.45

$91.12

$91.12 - $91.12

$91.12

$54.67

$54.67 - $54.67

$54.67

by Parker Hannifin
Silencers:0674 Polymer Silencer, Male BSPP and Metric Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 0674 00 21 Parker \| 5 \|
Series:	0674 Series
Shape (Orientation):	No Orientation
Material(s):	Polyethylene, Plastic
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Polyethylene: 0 to 10 bar Sintered bronze: 0 to 12 bar 316L Stainless Steel: 0 to 12 bar Working Temperature: Polyethylene: -10°C to +80°C Sintered bronze: -20°C to +150°C 316L Stainless Steel: -20°C to +180°C
Advantages:	3 materials available - Polyethylene: optimum exhaust flow rate and noise attention - Sintered bronze: robust and economic - 316L stainless Steel: increased chemical and mechanical resistance incorporated flow control regulator on 2 versions
Regulations:	RoHS PED REACH 2003/10/CE OSHA
Component Materials:	Body: Brass (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683) Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683)


Part Number	NPT (C)	E	G	L	Wt (Oz)
0611 00 11	1/8"	.24"	.49"	1.34"	.07 oz
0611 00 14	1/4"	.28"	.61"	1.67"	.11 oz
0611 00 22	1/2"	.43"	.93"	3.07"	.35 oz


Part Number	BSPP (C)	E	G	L	Wt (Kg)
0674 00 19	M5X0.8	4 mm	6.5 mm	23 mm	.001 Kg
0674 00 10	G1/8"	6 mm	12.5 mm	34 mm	.002 Kg
0674 00 13	G1/4"	7 mm	15.5 mm	42.5 mm	.003 Kg
0674 00 17	G3/8"	11.5 mm	181.5 mm	67.5 mm	.006 Kg
0674 00 21	G1/2"	11 mm	23.5 mm	78 mm	.010 Kg
0674 00 27	G3/4"	15.5 mm	38.5 mm	131 mm	.040 Kg
0674 00 34	G1"	19.5 mm	49 mm	160 mm	.050 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
