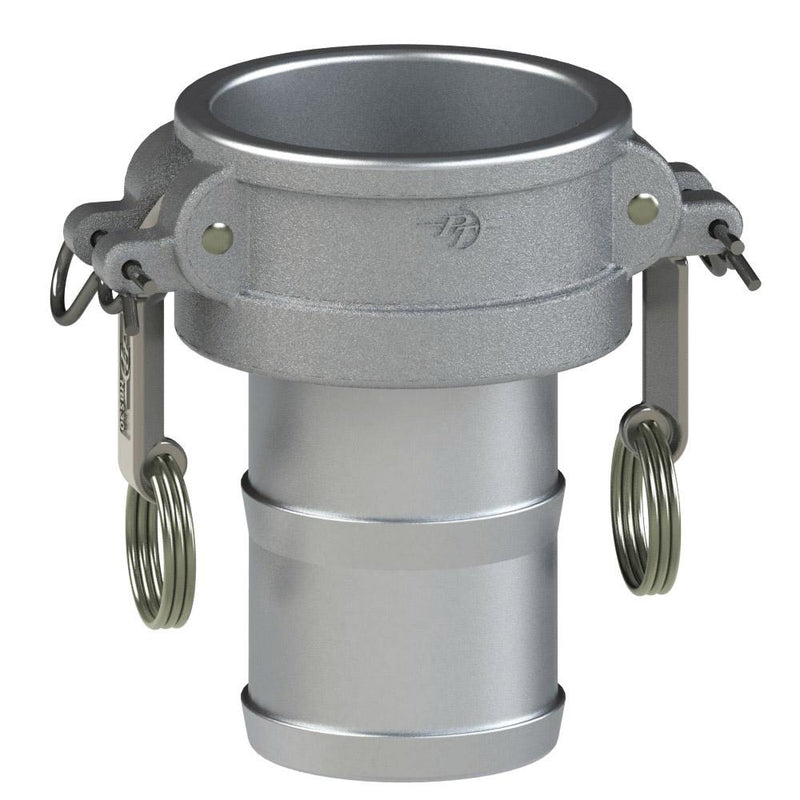

1000340SL (40CSL) by PT-Coupling | STA-LOK® Cam & Groove Fitting | Type CSL | 4" Coupler x 4" Hose Shank | Aluminum/HBS | Buna-N Seal

Save $9.95

$89.54

$89.54 - $89.54

$89.54

$79.59

$79.59 - $79.59

$79.59

PT Coupling
STA-LOK Cam & Groove (Camlock) Fitting | Type CSL | Coupler x Hose Shank | Aluminum/HBS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 1000340SL PT-Coupling
Series:	STA-LOK
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	4in Female Cam & Groove, 4in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® is a positive locking feature that comes with Carbon Steel or Stainless Steel hitch pin clips. You may also substitute a padlock in place of the hitch pin clip. Proper use of these mechanisms can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. All standard components are 300 series Stainless Steel. Standard Cam assemblies in HB and HBS may be used on all STA LOK® parts. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Hose Shank Size	Max. Allowable Working Press. (PSI)*
20CSL	1000320SL	2"	2"	250 PSI
30CSL	1000330SL	3"	3"	200 PSI
40CSL	1000340SL	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
