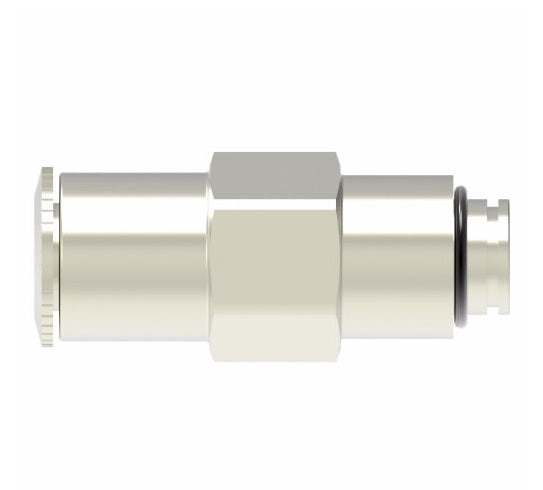

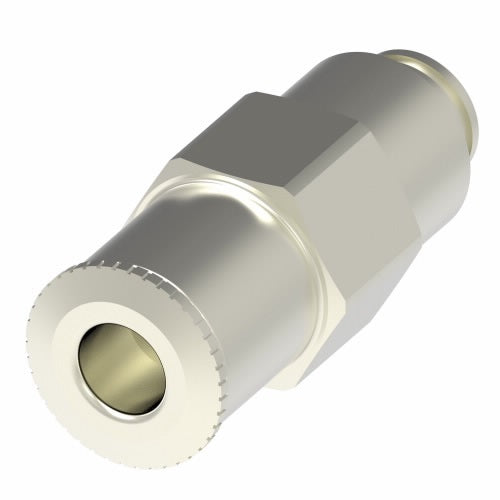

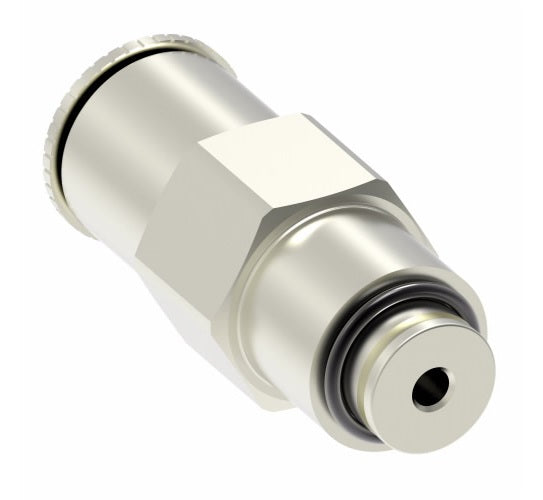

1168X5MX5MM by Danfoss | Metric Push to Connect Adapter | Male Connector | 5mm Tube OD x M5 Male Metric | Nickel Plated Brass

1168X5MX5MM by Danfoss | Metric Push to Connect Adapter | Male Connector | 5mm Tube OD x M5 Male Metric | Nickel Plated Brass

$5.99 - $5.99
$5.99
$5.99 - $5.99
$5.99

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Male Connector
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1168X5MX5MM Danfoss
Shape (Orientation): Straight
Ends Configuration: 5mm Push-to-Connect, M5 Male Metric
Material(s): Nickel Plated Brass
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male Metric Thread C F G H L SW
(mm)		 SW1
(mm)
1168X5MX5MM 5mm M5* 5.5mm 8.8mm 9.9mm 3.5mm 20.5mm 9mm 2mm
1168X6MX5MM 6mm M5* 5.5mm 11.7mm 13.2mm 3.5mm 21.5mm 12mm 2mm

* M5x0.8 metric screw thread. Seals with nylon washer (included).
