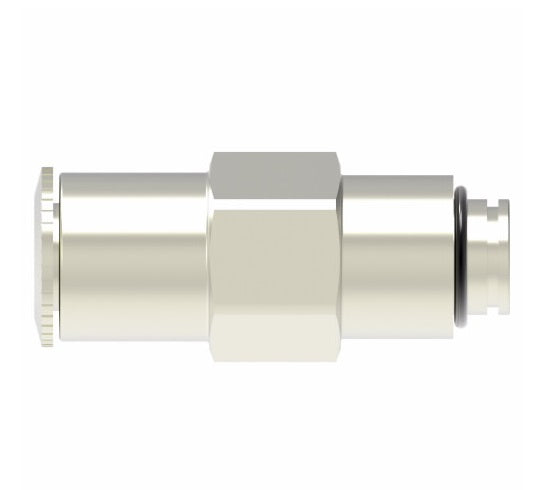

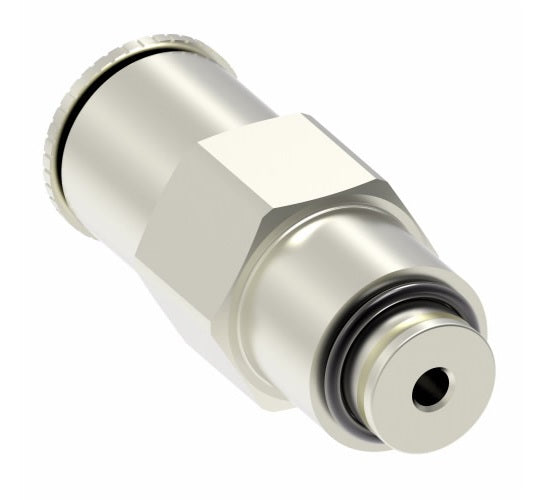

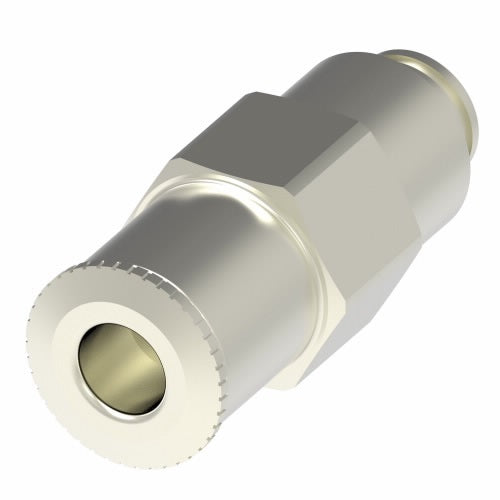

Name: 1168X6MX5MM by Danfoss | Metric Push to Connect Adapter | Male Connector | 6mm Tube OD x M5 Male Metric | Nickel Plated Brass
Brand: Danfoss/Eaton
SKU: 1168X6MX5MM Danfoss
Price: 8.19 USD
Availability: InStock

$8.19 - $8.19

$8.19

$8.19 - $8.19

$8.19

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Male Connector

Quantity

Specifications for Variant SKU: 1168X6MX5MM Danfoss
Shape (Orientation):	Straight
Ends Configuration:	6mm Push-to-Connect, M5 Male Metric
Material(s):	Nickel Plated Brass
Compatible with the following Series:	MTP160 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
MTP160 nylon tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
-40°F to 200°F (-40°C to 93°C).

Nominal Size	2	4	5MM	6	8
Thread
MM (Metric Screw Thread)			M5x.8
BSPT	1/8 (2PT)	1/4 (4PT)		3/8 (6PT)	1/2 (8PT)
BSPP	1/8 (2PP)	1/4 (4PP)		3/8 (6PP)	1/2


Nickel Plated Brass Part Number	Tube OD (mm)	Male Metric Thread	C	F	G	H	L	SW (mm)	SW1 (mm)
1168X5MX5MM	5mm	M5*	5.5mm	8.8mm	9.9mm	3.5mm	20.5mm	9mm	2mm
1168X6MX5MM	6mm	M5*	5.5mm	11.7mm	13.2mm	3.5mm	21.5mm	12mm	2mm

* M5x0.8 metric screw thread. Seals with nylon washer (included).
