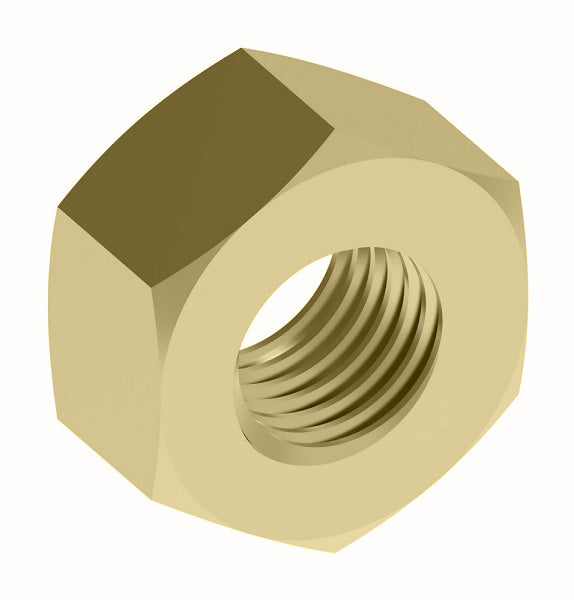

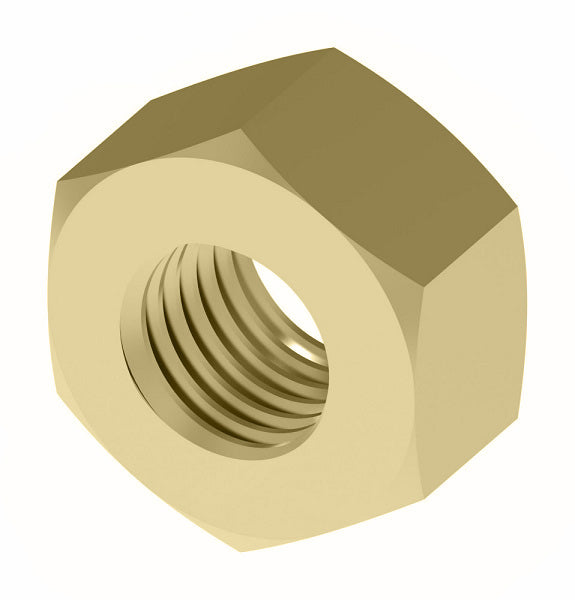

1290-10B Aeroquip by Danfoss | Versil-Flare SAE 37° Flared Style "B" Nut Adapter | -10 Size | Brass

1290-10B Aeroquip by Danfoss | Versil-Flare SAE 37° Flared Style "B" Nut Adapter | -10 Size | Brass

Name: 1290-10B Aeroquip by Danfoss | Versil-Flare SAE 37° Flared Style "B" Nut Adapter | -10 Size | Brass
Brand: Danfoss/Eaton
SKU: 1290-10B Danfoss
Price: 14.99 USD
Availability: InStock

$14.99 - $14.99

$14.99

$14.99 - $14.99

$14.99

Aeroquip® by Danfoss
Versil-Flare SAE 37° Flared Style "B" Nut Adapter

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1290-10B Danfoss
Shape (Orientation):	No Orientation
Material(s):	Brass

Notes:
Use with 900605 tube sleeve only.


Steel Part Number	Brass Part Number	Stainless Steel Part Number	Tube O.D.	Thread T	A	B
1290-2S	-	-	-	-	-	-
1290-3S	-	-	0.19"	3/8-24	0.60"	0.44"
1290-4S	1290-4B	259-1290-4	0.25"	7/16-20	0.62"	0.56"
1290-3S	1290-5B	-	0.31"	1/2-20	0.67"	0.62"
1290-6S	1290-6B	259-1290-6	0.38"	9/16-18	0.72"	0.69"
1290-8S	1290-8B	259-1290-8	0.50"	3/4-16	0.84"	0.88"
1290-10S	1290-10B	259-1290-10	0.63"	7/8-14	0.97"	1.00"
1290-12S	1290-12B	259-1290-12	0.75"	1-1/16-12	1.02"	1.25"
1290-14S	-	-	0.88"	1-3/16-12	1.08"	1.38"
1290-16S	1290-16B	259-1290-16	1.00"	1-5/16-12	1.12"	1.50"
1290-20S	1290-20B	259-1290-20	1.25"	1-5/8-12	1.22"	2.00"
1290-24S	1290-24B	259-1290-24	1.50"	1-7/8-12	1.41"	2.25"
-	1290-32B	259-1290-32	2.00"	2-1/2-12	1.59"	2.88"
