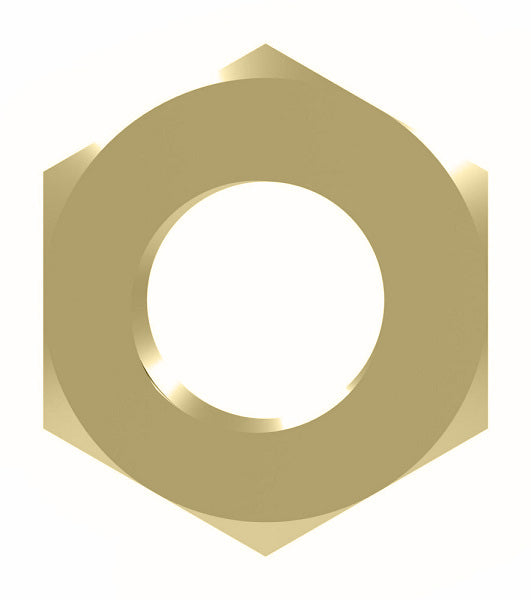

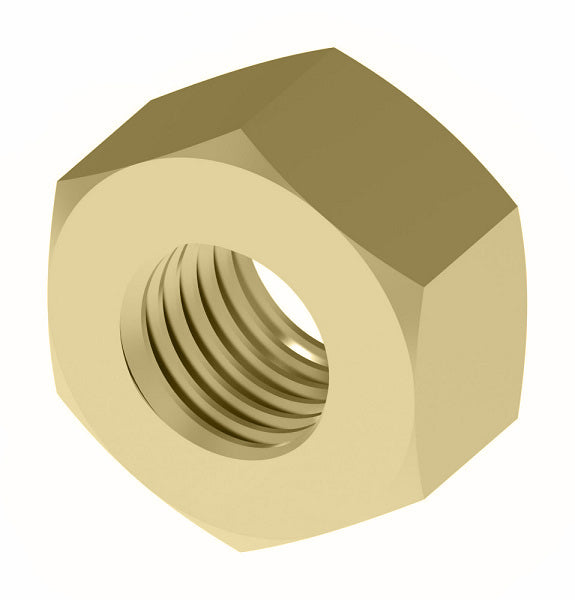

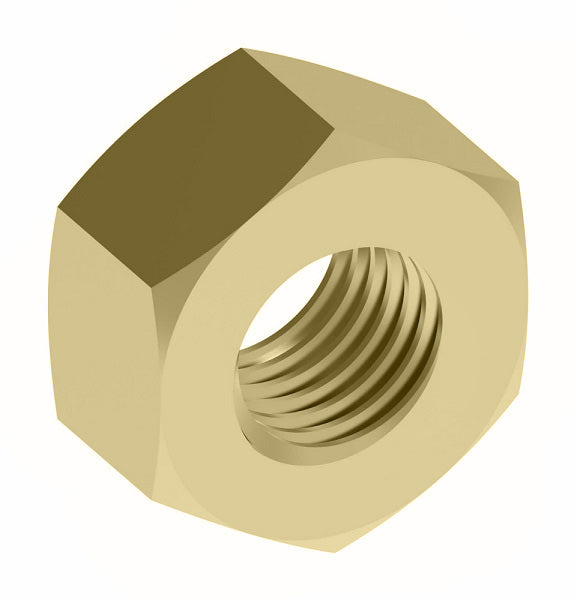

1290-20B Aeroquip by Danfoss | Versil-Flare SAE 37° Flared Style "B" Nut Adapter | -20 Size | Brass

1290-20B Aeroquip by Danfoss | Versil-Flare SAE 37° Flared Style "B" Nut Adapter | -20 Size | Brass

Name: 1290-20B Aeroquip by Danfoss | Versil-Flare SAE 37° Flared Style "B" Nut Adapter | -20 Size | Brass
Brand: Danfoss/Eaton
SKU: 1290-20B Danfoss
Price: 47.86 USD
Availability: InStock

$47.86 - $47.86

$47.86

$47.86 - $47.86

$47.86

Aeroquip® by Danfoss
Versil-Flare SAE 37° Flared Style "B" Nut Adapter

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1290-20B Danfoss
Shape (Orientation):	No Orientation
Material(s):	Brass

Notes:
Use with 900605 tube sleeve only.


Steel Part Number	Brass Part Number	Stainless Steel Part Number	Tube O.D.	Thread T	A	B
1290-2S	-	-	-	-	-	-
1290-3S	-	-	0.19"	3/8-24	0.60"	0.44"
1290-4S	1290-4B	259-1290-4	0.25"	7/16-20	0.62"	0.56"
1290-3S	1290-5B	-	0.31"	1/2-20	0.67"	0.62"
1290-6S	1290-6B	259-1290-6	0.38"	9/16-18	0.72"	0.69"
1290-8S	1290-8B	259-1290-8	0.50"	3/4-16	0.84"	0.88"
1290-10S	1290-10B	259-1290-10	0.63"	7/8-14	0.97"	1.00"
1290-12S	1290-12B	259-1290-12	0.75"	1-1/16-12	1.02"	1.25"
1290-14S	-	-	0.88"	1-3/16-12	1.08"	1.38"
1290-16S	1290-16B	259-1290-16	1.00"	1-5/16-12	1.12"	1.50"
1290-20S	1290-20B	259-1290-20	1.25"	1-5/8-12	1.22"	2.00"
1290-24S	1290-24B	259-1290-24	1.50"	1-7/8-12	1.41"	2.25"
-	1290-32B	259-1290-32	2.00"	2-1/2-12	1.59"	2.88"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
