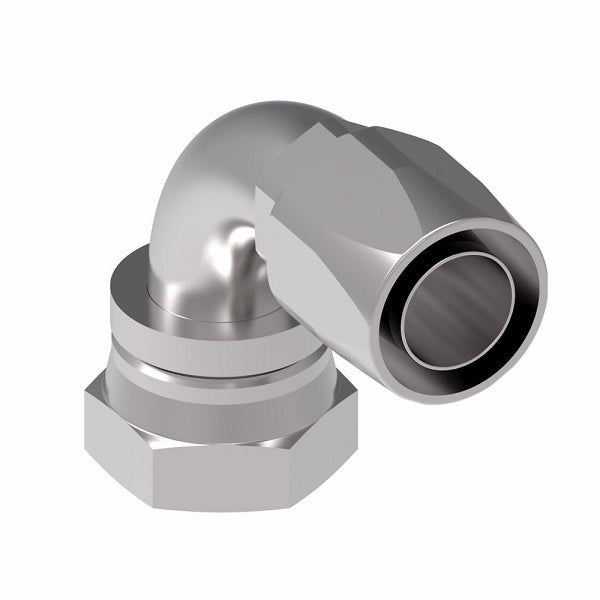

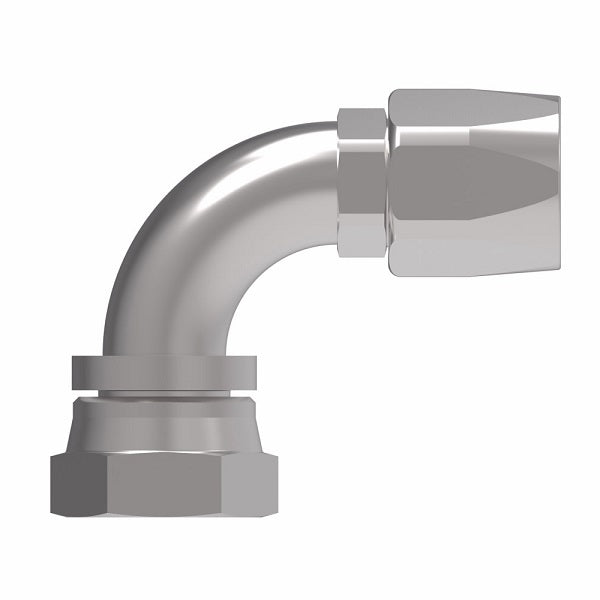

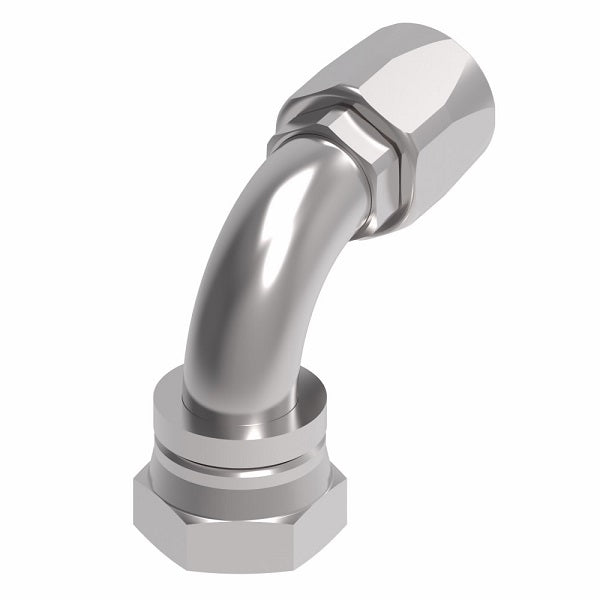

190261-16S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

190261-16S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

Name: 190261-16S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 190261-16S Danfoss
Price: 94.26 USD
Availability: InStock

$94.26 - $94.26

$94.26

$94.26 - $94.26

$94.26

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 190261-16S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1in Female JIC, 1in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel, Short Drop
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 Series \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H
190261-6S	-06	9/16-18	2.13"	1.23"	0.24"	0.85"
190261-12S	-12	1-1/16-12	3.74"	2.17"	0.55"	1.82"
190261-16S	-16	1-5/16-12	3.55"	2.28"	0.82"	2.30"
190261-20S	-20	1-5/8-12	4.02"	2.65"	1.05"	2.75"
190261-20-24S	-20	1-5/8-12	4.11"	2.66"	1.05"	2.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
