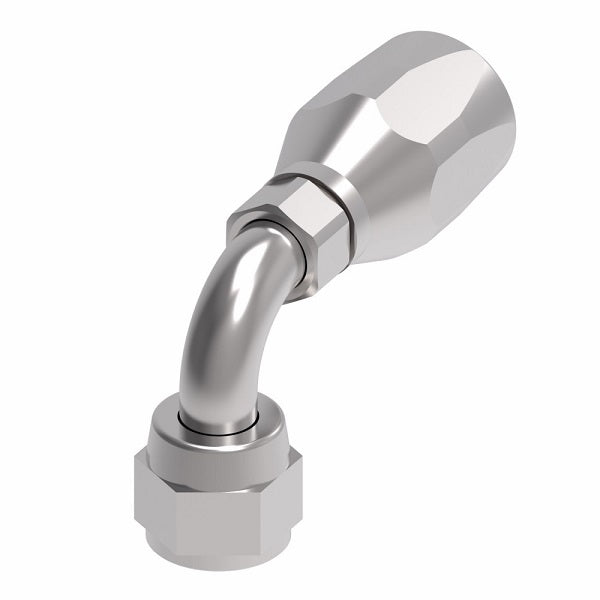

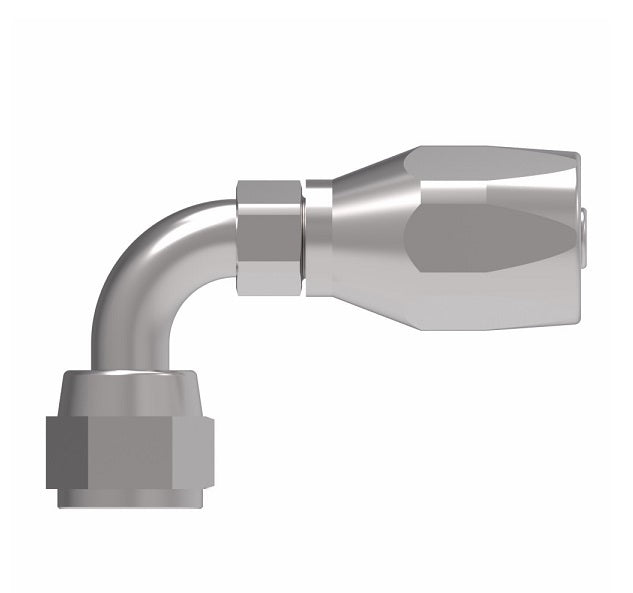

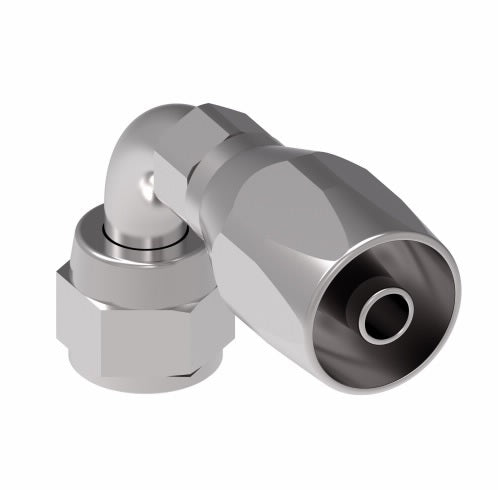

190261-6S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

190261-6S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

Name: 190261-6S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 190261-6S Danfoss
Price: 35.84 USD
Availability: InStock

$35.84 - $35.84

$35.84

$35.84 - $35.84

$35.84

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 190261-6S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female JIC, 3/8in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel, Short Drop
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 Series \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H
190261-6S	-06	9/16-18	2.13"	1.23"	0.24"	0.85"
190261-12S	-12	1-1/16-12	3.74"	2.17"	0.55"	1.82"
190261-16S	-16	1-5/16-12	3.55"	2.28"	0.82"	2.30"
190261-20S	-20	1-5/8-12	4.02"	2.65"	1.05"	2.75"
190261-20-24S	-20	1-5/8-12	4.11"	2.66"	1.05"	2.75"
