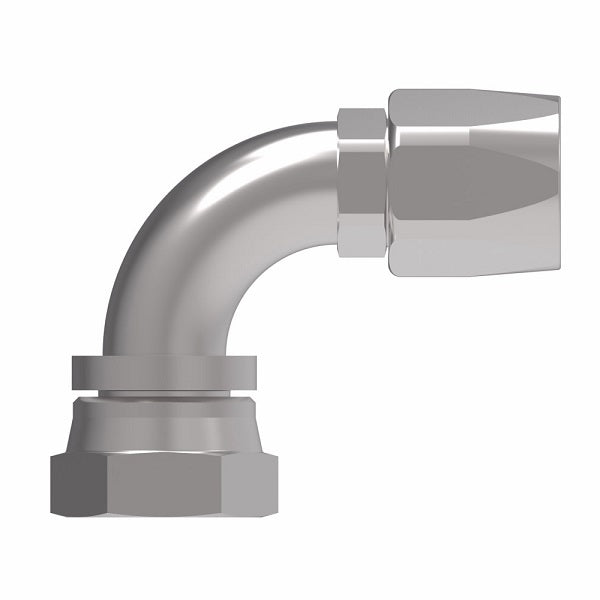

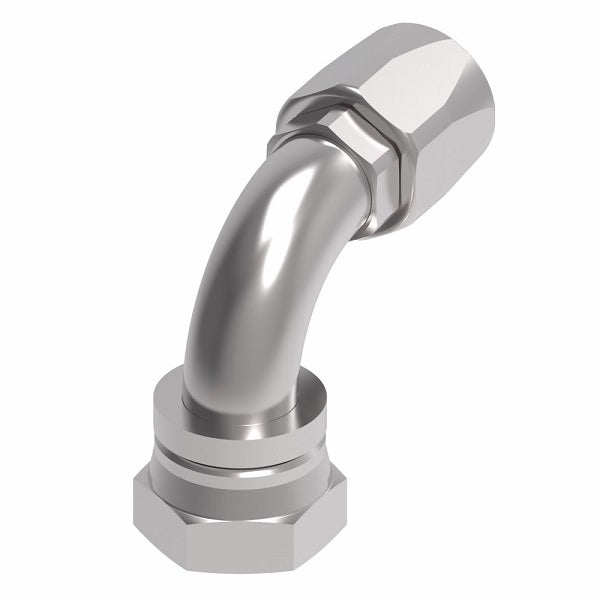

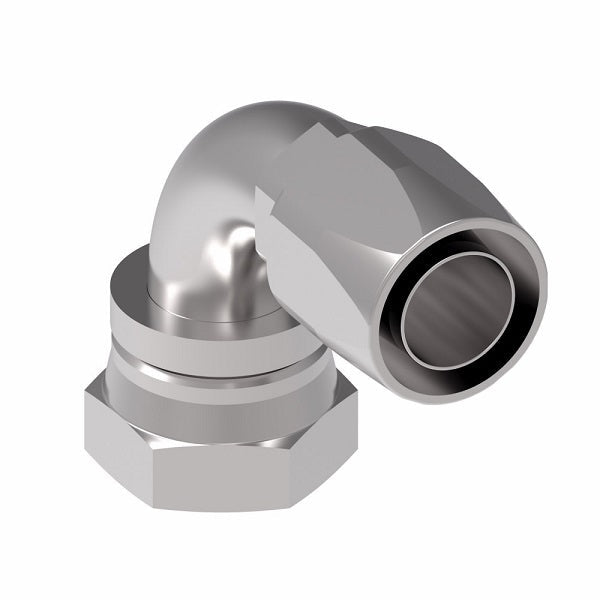

190261-20S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel

190261-20S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel

$124.93 - $124.93
$124.93
$124.93 - $124.93
$124.93

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190261-20S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Female JIC, 1-1/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651 Series  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190261-6S -06 9/16-18 2.13" 1.23" 0.24" 0.85"
190261-12S -12 1-1/16-12 3.74" 2.17" 0.55" 1.82"
190261-16S -16 1-5/16-12 3.55" 2.28" 0.82" 2.30"
190261-20S -20 1-5/8-12 4.02" 2.65" 1.05" 2.75"
190261-20-24S -20 1-5/8-12 4.11" 2.66" 1.05" 2.75"
