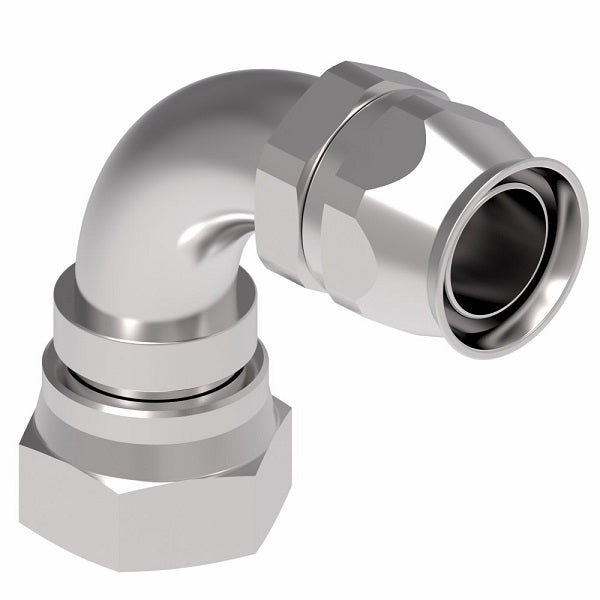

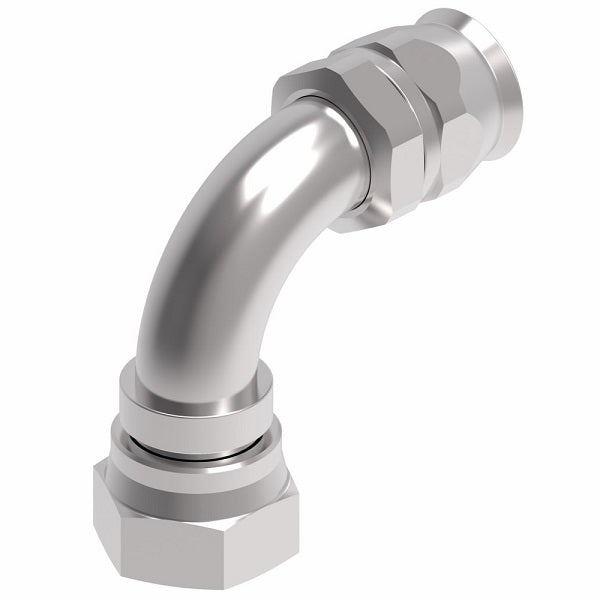

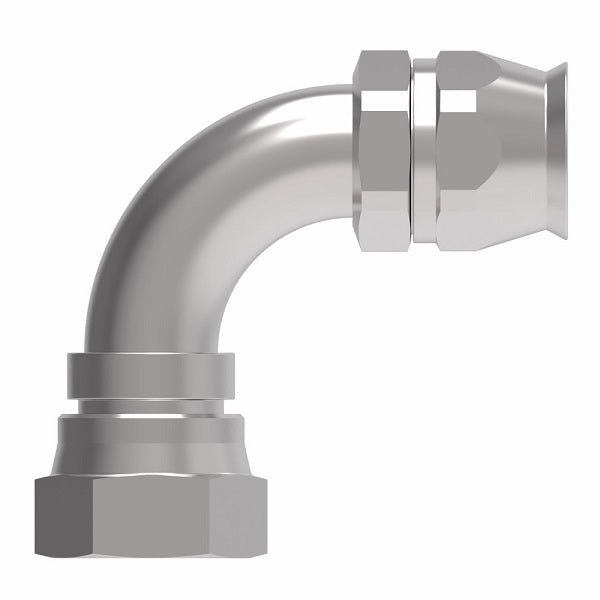

190772-3S Aeroquip by Danfoss | Female Universal 90° Elbow Super Gem PTFE Reusable Hose Fitting | -03 Female JIC (Also Couples w/ SAE 45° Flare) -03 Reusable Hose End | Steel

Original price $47.32 - Original price $47.32
Original price
$47.32
$47.32 - $47.32
Current price $47.32

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Female Universal - 90° Elbow

Female JIC also Couples with SAE 45° Flare.

Universal type identification for both SAE 45° and 37° connections.

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 190772-3S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/16in Female JIC, 3/16in Reusable Hose End, 3/16in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 2807 Series  |   SC-TW Series  |   S-TW Series
Steel
Part Number
Hose Size Thread A D H Sleeve
Brass
Part Number
Sleeve
Stainless Steel
Part Number
190772-3S -03 3/8-24 1.27" 0.93" 0.09" 0.87" 900568-3B -
190772-4S -04 7/16-20 1.41" 0.95" 0.16" 0.68" 900568-4B 900568-4C
190772-5S -05 1/2-20 1.52" 1.00" 0.23" 0.77" 900568-5B 900568-5C
190772-6S -06 9/16-18 1.62" 1.10" 0.28" 0.85" 900568-6B 900568-6C
190772-8S -08 3/4-16 2.03" 1.41" 0.38" 1.09" 900568-8B 900568-8C
190772-10S -10 7/8-14 2.16" 1.49" 0.47" 1.23" 900568-10B 900568-10C
190772-12S -12 1-1/16-12 2.82" 2.17" 0.59" 1.82" 900568-12B 900568-12C
190772-16S -16 1-5/16-12 3.10" 2.49" 0.82" 2.39" 900568-16B 900568-16C
190772-20S -20 1-5/16-12 - 2.95" 1.06" 2.75" 900568-20B -
