190772-10S Aeroquip by Danfoss | Female Universal 90° Elbow Super Gem PTFE Reusable Hose Fitting | -10 Female JIC (Also Couples w/ SAE 45° Flare) -10 Reusable Hose End | Steel
190772-10S Aeroquip by Danfoss | Female Universal 90° Elbow Super Gem PTFE Reusable Hose Fitting | -10 Female JIC (Also Couples w/ SAE 45° Flare) -10 Reusable Hose End | Steel
190772-10S Aeroquip by Danfoss | Female Universal 90° Elbow Super Gem PTFE Reusable Hose Fitting | -10 Female JIC (Also Couples w/ SAE 45° Flare) -10 Reusable Hose End | Steel
190772-10S Aeroquip by Danfoss | Female Universal 90° Elbow Super Gem PTFE Reusable Hose Fitting | -10 Female JIC (Also Couples w/ SAE 45° Flare) -10 Reusable Hose End | Steel

190772-10S Aeroquip by Danfoss | Female Universal 90° Elbow Super Gem PTFE Reusable Hose Fitting | -10 Female JIC (Also Couples w/ SAE 45° Flare) -10 Reusable Hose End | Steel

$51.96 - $51.96
$51.96
$51.96 - $51.96
$51.96

Aeroquip® by Danfoss

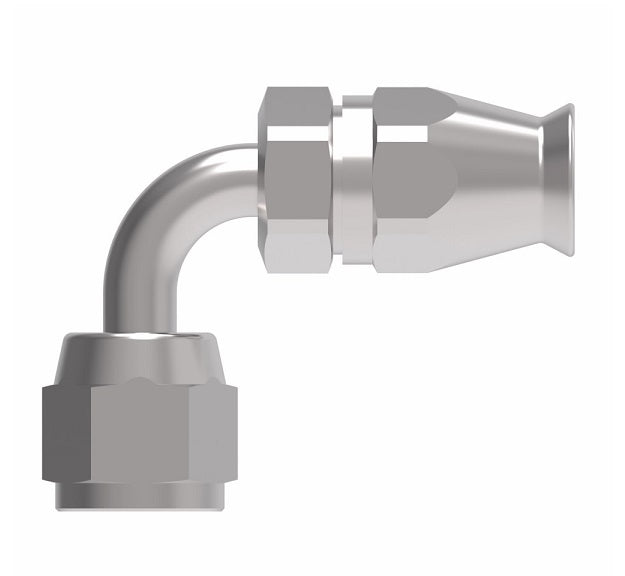

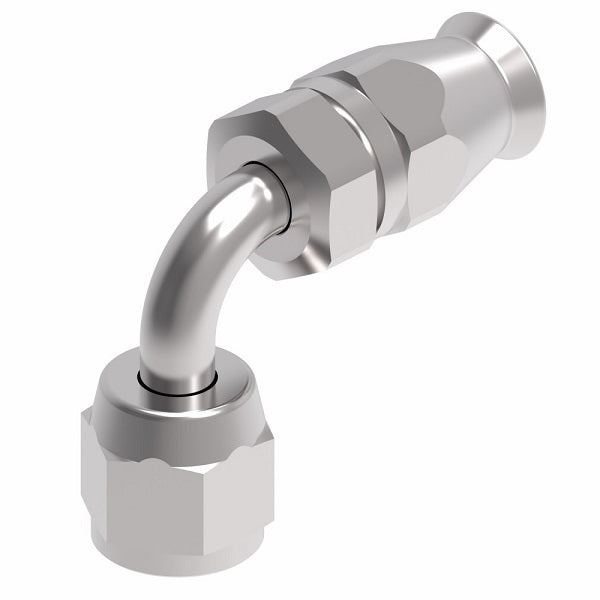

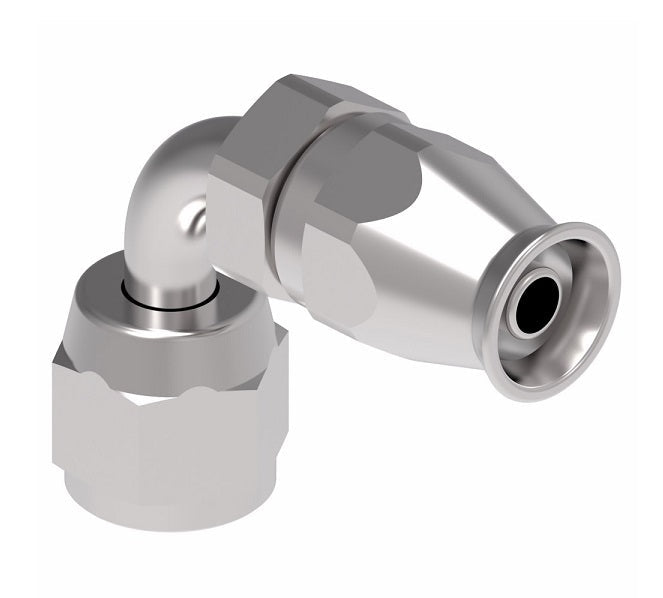

Super Gem Reusable Hose Fitting for PTFE Hose - Female Universal - 90° Elbow

Female JIC also Couples with SAE 45° Flare.

Universal type identification for both SAE 45° and 37° connections.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190772-10S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 5/8in Reusable Hose End, 5/8in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 2807 Series  |   SC-TW Series  |   S-TW Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H Sleeve
Brass
Part Number 		Sleeve
Stainless Steel
Part Number
190772-3S -03 3/8-24 1.27" 0.93" 0.09" 0.87" 900568-3B -
190772-4S -04 7/16-20 1.41" 0.95" 0.16" 0.68" 900568-4B 900568-4C
190772-5S -05 1/2-20 1.52" 1.00" 0.23" 0.77" 900568-5B 900568-5C
190772-6S -06 9/16-18 1.62" 1.10" 0.28" 0.85" 900568-6B 900568-6C
190772-8S -08 3/4-16 2.03" 1.41" 0.38" 1.09" 900568-8B 900568-8C
190772-10S -10 7/8-14 2.16" 1.49" 0.47" 1.23" 900568-10B 900568-10C
190772-12S -12 1-1/16-12 2.82" 2.17" 0.59" 1.82" 900568-12B 900568-12C
190772-16S -16 1-5/16-12 3.10" 2.49" 0.82" 2.39" 900568-16B 900568-16C
190772-20S -20 1-5/16-12 - 2.95" 1.06" 2.75" 900568-20B -
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
