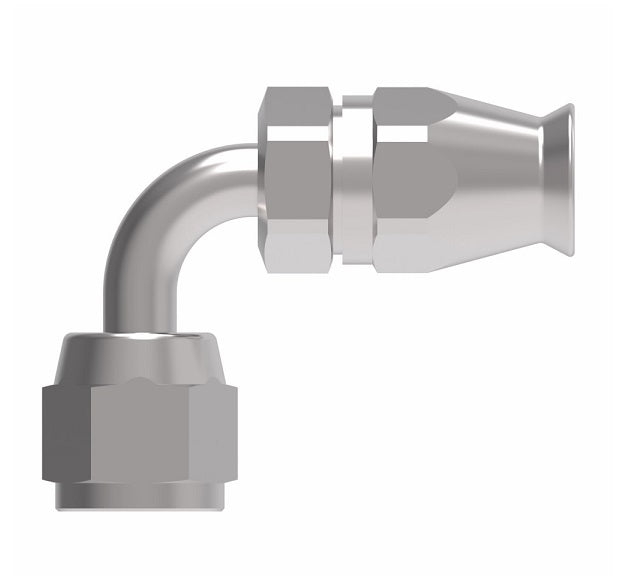

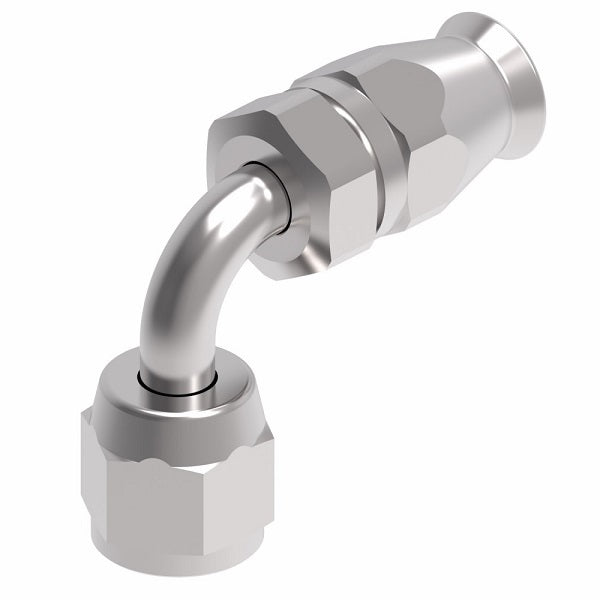

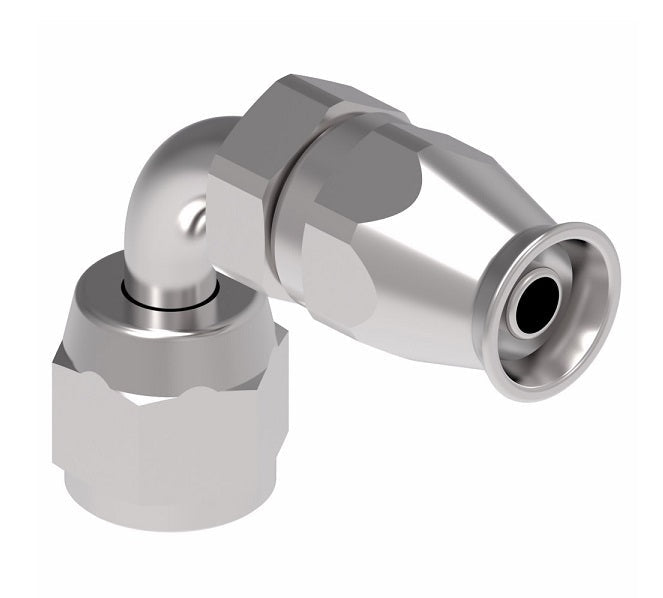

190772-12S Aeroquip by Danfoss | Female Universal 90° Elbow Super Gem PTFE Reusable Hose Fitting | -12 Female JIC (Also Couples w/ SAE 45° Flare) -12 Reusable Hose End | Steel

190772-12S Aeroquip by Danfoss | Female Universal 90° Elbow Super Gem PTFE Reusable Hose Fitting | -12 Female JIC (Also Couples w/ SAE 45° Flare) -12 Reusable Hose End | Steel

Name: 190772-12S Aeroquip by Danfoss | Female Universal 90° Elbow Super Gem PTFE Reusable Hose Fitting | -12 Female JIC (Also Couples w/ SAE 45° Flare) -12 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 190772-12S Danfoss
Price: 68.1 USD
Availability: InStock

$68.10 - $68.10

$68.10

$68.10 - $68.10

$68.10

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Female Universal - 90° Elbow

Female JIC also Couples with SAE 45° Flare.

Universal type identification for both SAE 45° and 37° connections.

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 190772-12S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Reusable Hose End, 3/4in Female SAE 45 Flare
Material(s):	Steel
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
190772-3S	-03	3/8-24	1.27"	0.93"	0.09"	0.87"	900568-3B	-
190772-4S	-04	7/16-20	1.41"	0.95"	0.16"	0.68"	900568-4B	900568-4C
190772-5S	-05	1/2-20	1.52"	1.00"	0.23"	0.77"	900568-5B	900568-5C
190772-6S	-06	9/16-18	1.62"	1.10"	0.28"	0.85"	900568-6B	900568-6C
190772-8S	-08	3/4-16	2.03"	1.41"	0.38"	1.09"	900568-8B	900568-8C
190772-10S	-10	7/8-14	2.16"	1.49"	0.47"	1.23"	900568-10B	900568-10C
190772-12S	-12	1-1/16-12	2.82"	2.17"	0.59"	1.82"	900568-12B	900568-12C
190772-16S	-16	1-5/16-12	3.10"	2.49"	0.82"	2.39"	900568-16B	900568-16C
190772-20S	-20	1-5/16-12	-	2.95"	1.06"	2.75"	900568-20B	-
