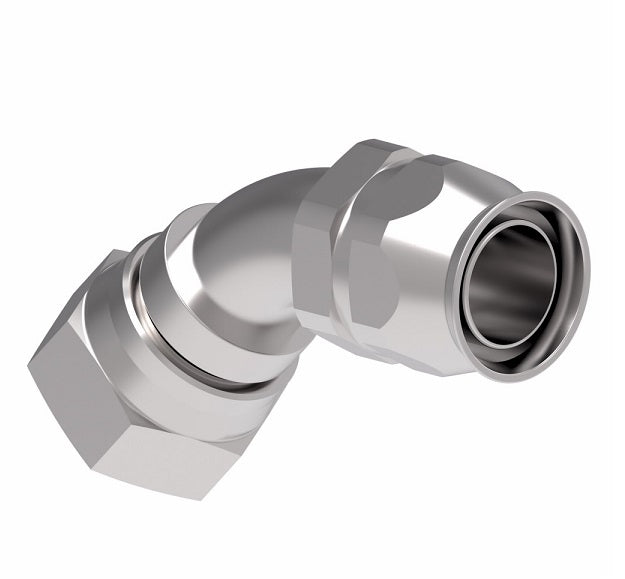

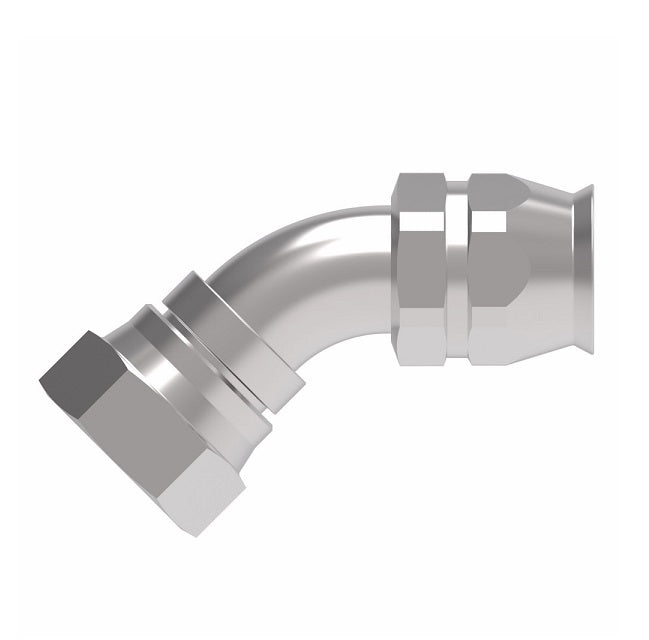

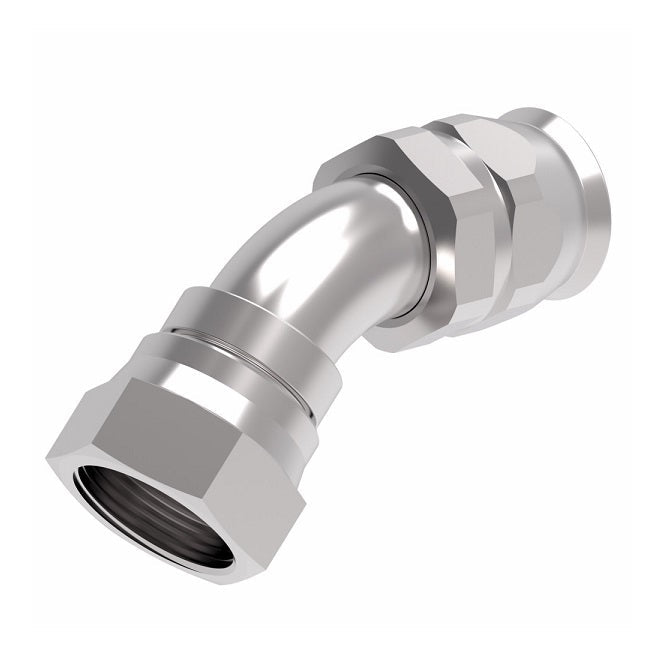

190773-16S Aeroquip by Danfoss | Female Universal 45° Elbow Super Gem PTFE Reusable Hose Fitting | -16 Female JIC (Also Couples w/ SAE 45° Flare) -16 Reusable Hose End | Steel
190773-16S Aeroquip by Danfoss | Female Universal 45° Elbow Super Gem PTFE Reusable Hose Fitting | -16 Female JIC (Also Couples w/ SAE 45° Flare) -16 Reusable Hose End | Steel
190773-16S Aeroquip by Danfoss | Female Universal 45° Elbow Super Gem PTFE Reusable Hose Fitting | -16 Female JIC (Also Couples w/ SAE 45° Flare) -16 Reusable Hose End | Steel
190773-16S Aeroquip by Danfoss | Female Universal 45° Elbow Super Gem PTFE Reusable Hose Fitting | -16 Female JIC (Also Couples w/ SAE 45° Flare) -16 Reusable Hose End | Steel

190773-16S Aeroquip by Danfoss | Female Universal 45° Elbow Super Gem PTFE Reusable Hose Fitting | -16 Female JIC (Also Couples w/ SAE 45° Flare) -16 Reusable Hose End | Steel

$104.93 - $104.93
$104.93
$104.93 - $104.93
$104.93

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Female Universal - 45° Elbow

Female JIC also Couples with SAE 45° Flare.

Universal type identification for both SAE 45° and 37° connections.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190773-16S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1in Female JIC, 1in Reusable Hose End, 1in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 2807 Series  |   SC-TW Series  |   S-TW Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H Sleeve
Brass
Part Number 		Sleeve
Stainless Steel
Part Number
190773-3S -03 3/8-24 1.50" 1.17" 0.09" 0.46" 900568-3B -
190773-4S -04 7/16-20 1.51" 1.05" 0.16" 0.33" 900568-4B 900568-4C
190773-5S -05 1/2-20 1.62" 1.11" 0.23" 0.36" 900568-5B 900568-5C
190773-6S -06 9/16-18 1.72" 1.20" 0.28" 0.39" 900568-6B 900568-6C
190773-8S -08 3/4-16 2.27" 1.64" 0.38" 0.55" 900568-8B 900568-8C
190773-10S -10 7/8-14 2.46" 1.79" 0.47" 0.64" 900568-10B 900568-10C
190773-12S -12 1-1/16-12 2.86" 2.21" 0.59" 0.78" 900568-12B 900568-12C
190773-16S -16 1-5/16-12 3.30" 2.68" 0.83" 1.07" 900568-16B 900568-16C
190773-20S -20 1-5/8-12 3.80" 3.14" 1.06" 1.22" 900568-20B -
