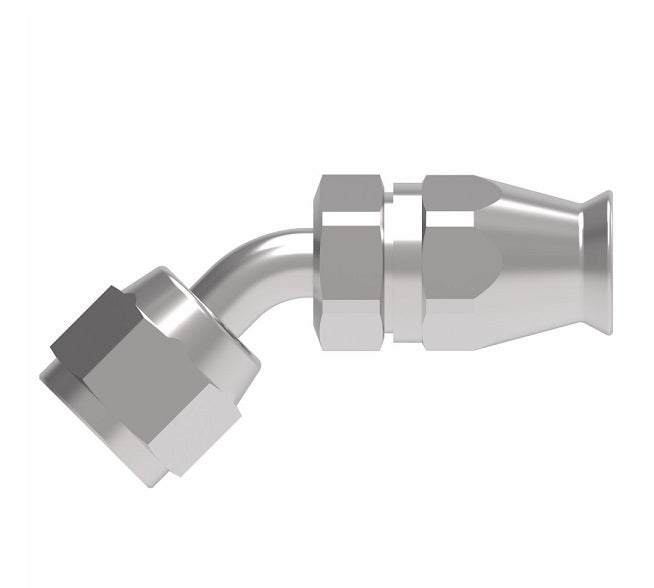

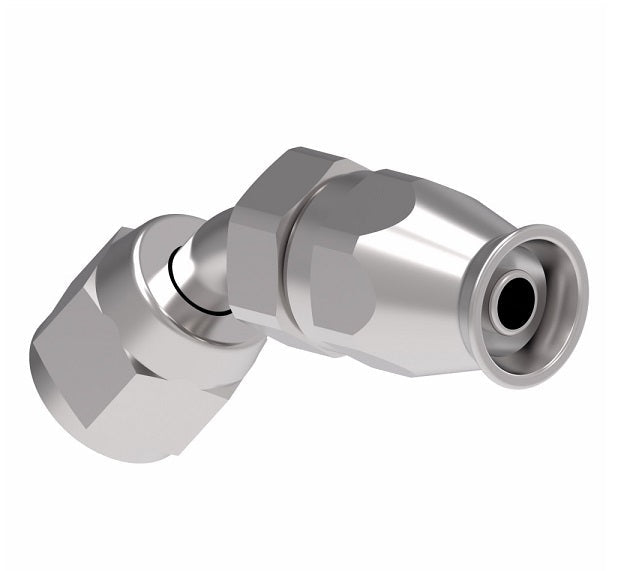

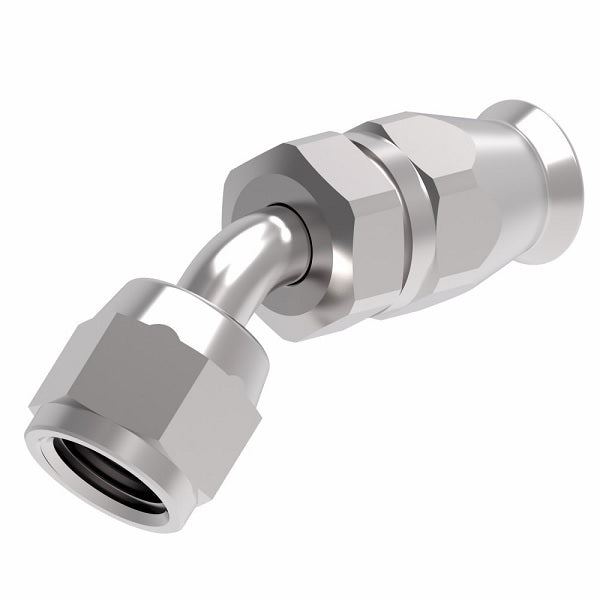

190773-4S Aeroquip by Danfoss | Female Universal 45° Elbow Super Gem PTFE Reusable Hose Fitting | -04 Female JIC (Also Couples w/ SAE 45° Flare) -04 Reusable Hose End | Steel

Save $2.58 Save $2.58
Original price $25.82
Original price $25.82 - Original price $25.82
Original price $25.82
Current price $23.24
$23.24 - $23.24
Current price $23.24

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Female Universal - 45° Elbow

Female JIC also Couples with SAE 45° Flare.

Universal type identification for both SAE 45° and 37° connections.

(Formerly Eaton Aeroquip)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for SKU: 190773-4S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Female JIC X 1/4in Reusable Hose End X 1/4in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 2807 Series  |   SC-TW Series  |   S-TW Series
Steel
Part Number
Hose Size Thread A D H Sleeve
Brass
Part Number
Sleeve
Stainless Steel
Part Number
190773-3S -03 3/8-24 1.50" 1.17" 0.09" 0.46" 900568-3B -
190773-4S -04 7/16-20 1.51" 1.05" 0.16" 0.33" 900568-4B 900568-4C
190773-5S -05 1/2-20 1.62" 1.11" 0.23" 0.36" 900568-5B 900568-5C
190773-6S -06 9/16-18 1.72" 1.20" 0.28" 0.39" 900568-6B 900568-6C
190773-8S -08 3/4-16 2.27" 1.64" 0.38" 0.55" 900568-8B 900568-8C
190773-10S -10 7/8-14 2.46" 1.79" 0.47" 0.64" 900568-10B 900568-10C
190773-12S -12 1-1/16-12 2.86" 2.21" 0.59" 0.78" 900568-12B 900568-12C
190773-16S -16 1-5/16-12 3.30" 2.68" 0.83" 1.07" 900568-16B 900568-16C
190773-20S -20 1-5/8-12 3.80" 3.14" 1.06" 1.22" 900568-20B -
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
