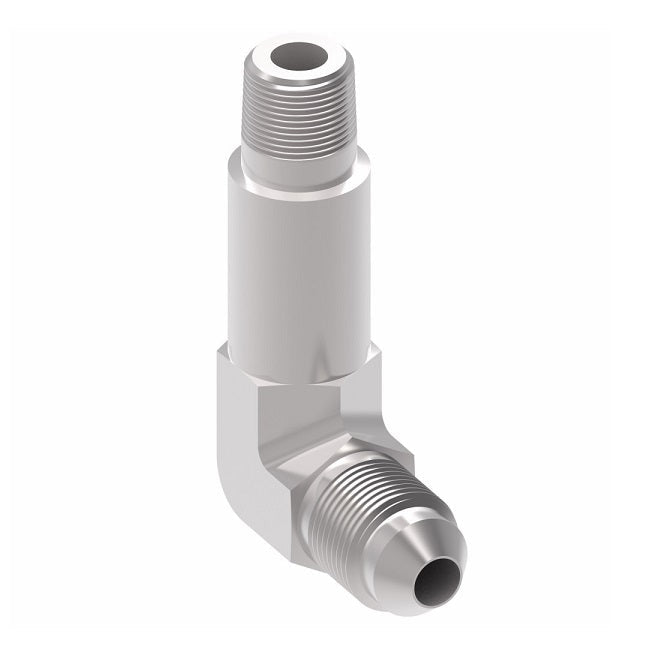

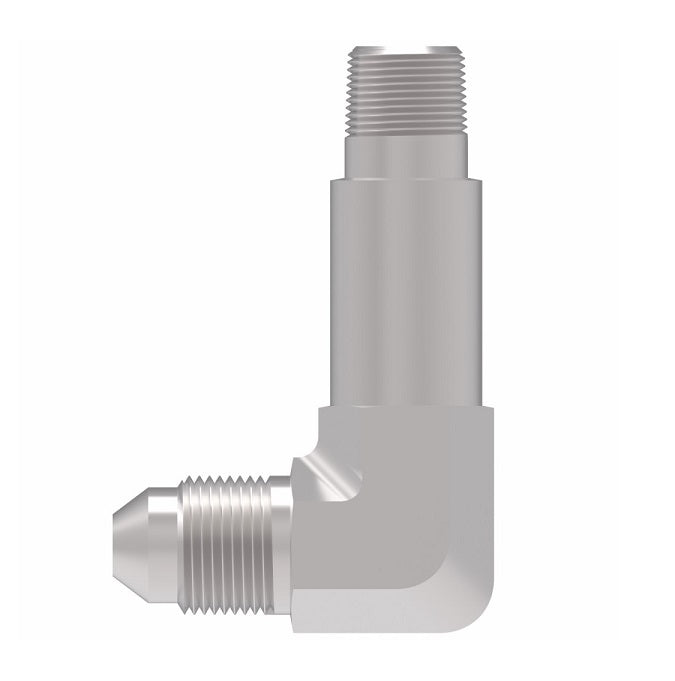

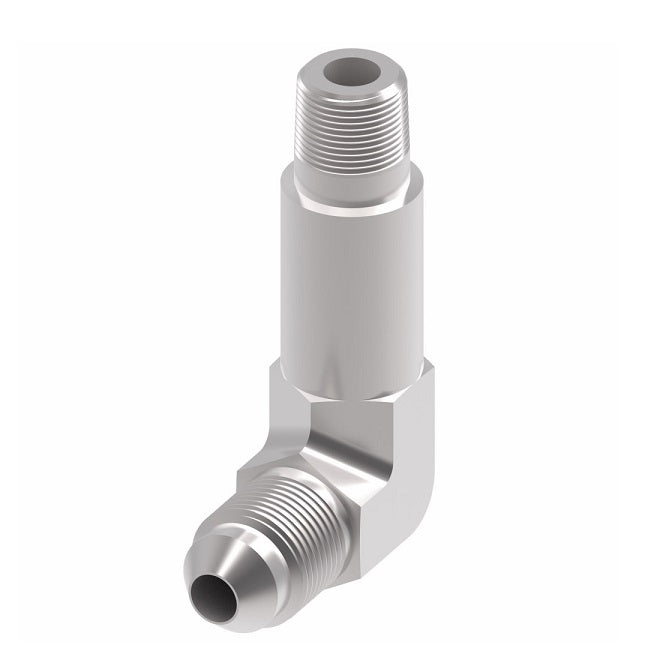

202413-2-4S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -02 Male NPTF x -04 Male 37° JIC Flare | Steel
202413-2-4S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -02 Male NPTF x -04 Male 37° JIC Flare | Steel
202413-2-4S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -02 Male NPTF x -04 Male 37° JIC Flare | Steel
202413-2-4S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -02 Male NPTF x -04 Male 37° JIC Flare | Steel

202413-2-4S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -02 Male NPTF x -04 Male 37° JIC Flare | Steel

$8.23 - $8.23
$8.23
$8.23 - $8.23
$8.23

Aeroquip® by Danfoss
Long External Pipe/37° JIC Flare Adapter
Male NPTF x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 202413-2-4S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Male NPTF, 1/4in Male JIC
Material(s): Steel
Special Properties: Long Drop
Specifications:
  • Ref. SAE 071602
Part Number
Steel		 Tube O.D. Thread P Thread T A B
202413-2-4S 0.25" 1/8-27 7/16-20 1.56" 0.89"
202413-2-5S 0.31" 1/8-27 1/2-20 1.63" 0.95"
202413-4-4S 0.25" 1/4-18 7/16-20 2.07" 1.05"
202413-4-5S 0.31" 1/4-18 1/2-20 2.07" 1.05"
202413-4-6S 0.38" 1/4-18 9/16-18 2.07" 1.06"
202413-6-6S 0.38" 3/8-18 9/16-18 2.42" 1.14"
202413-6-8S 0.50" 3/8-18 3/4-16 2.42" 1.25"
202413-8-8S 0.50" 1/2-14 3/4-16 2.87" 1.33"
202413-8-10S 0.63" 1/2-14 7/8-14 2.87" 1.45"
202413-8-12S 0.75" 1/2-14 1-1/16-12 3.28" 1.66"
202413-12-12S 0.75" 3/4-14 1-1/16-12 3.28" 1.66"
202413-12-16S 1.00" 3/4-14 1-5/16-12 3.86" 1.81"
202413-16-16S 1.00" 1-11-1/2 1-5/16-12 4.05" 1.81"
202413-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 4.84" 2.06"
