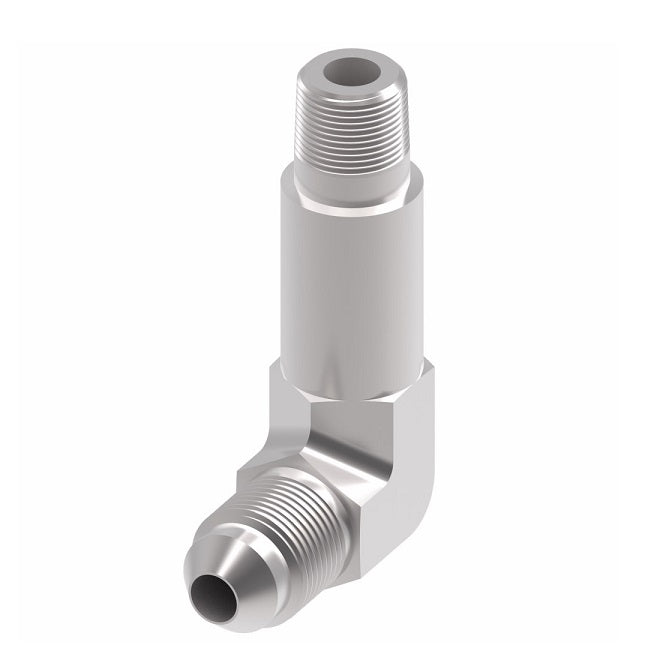

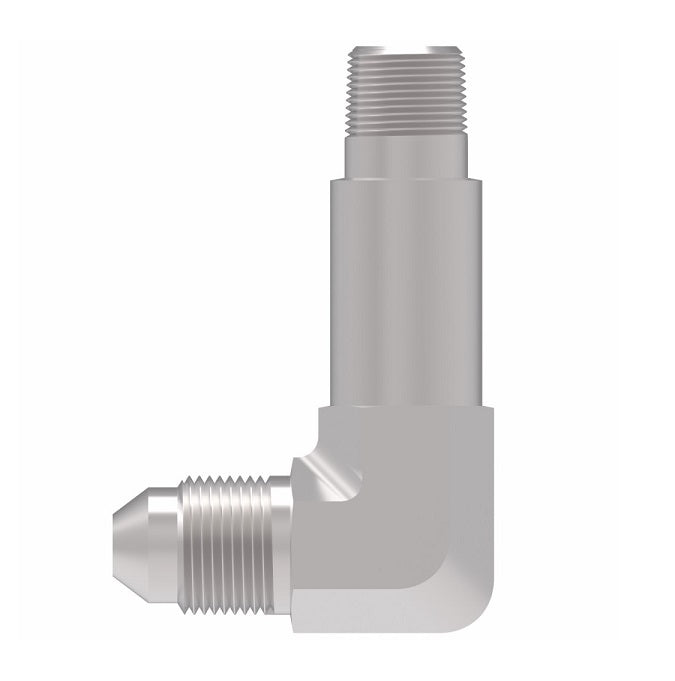

202413-8-10S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -08 Male NPTF x -10 Male 37° JIC Flare | Steel
202413-8-10S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -08 Male NPTF x -10 Male 37° JIC Flare | Steel
202413-8-10S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -08 Male NPTF x -10 Male 37° JIC Flare | Steel
202413-8-10S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -08 Male NPTF x -10 Male 37° JIC Flare | Steel

202413-8-10S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -08 Male NPTF x -10 Male 37° JIC Flare | Steel

$19.45 - $19.45
$19.45
$19.45 - $19.45
$19.45

Aeroquip® by Danfoss
Long External Pipe/37° JIC Flare Adapter
Male NPTF x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 202413-8-10S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Male NPTF, 5/8in Male JIC
Material(s): Steel
Special Properties: Long Drop
Specifications:
  • Ref. SAE 071602
Part Number
Steel		 Tube O.D. Thread P Thread T A B
202413-2-4S 0.25" 1/8-27 7/16-20 1.56" 0.89"
202413-2-5S 0.31" 1/8-27 1/2-20 1.63" 0.95"
202413-4-4S 0.25" 1/4-18 7/16-20 2.07" 1.05"
202413-4-5S 0.31" 1/4-18 1/2-20 2.07" 1.05"
202413-4-6S 0.38" 1/4-18 9/16-18 2.07" 1.06"
202413-6-6S 0.38" 3/8-18 9/16-18 2.42" 1.14"
202413-6-8S 0.50" 3/8-18 3/4-16 2.42" 1.25"
202413-8-8S 0.50" 1/2-14 3/4-16 2.87" 1.33"
202413-8-10S 0.63" 1/2-14 7/8-14 2.87" 1.45"
202413-8-12S 0.75" 1/2-14 1-1/16-12 3.28" 1.66"
202413-12-12S 0.75" 3/4-14 1-1/16-12 3.28" 1.66"
202413-12-16S 1.00" 3/4-14 1-5/16-12 3.86" 1.81"
202413-16-16S 1.00" 1-11-1/2 1-5/16-12 4.05" 1.81"
202413-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 4.84" 2.06"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
