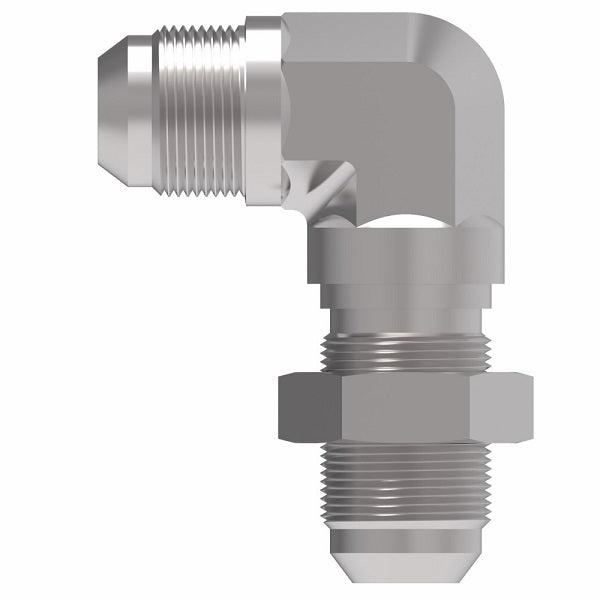

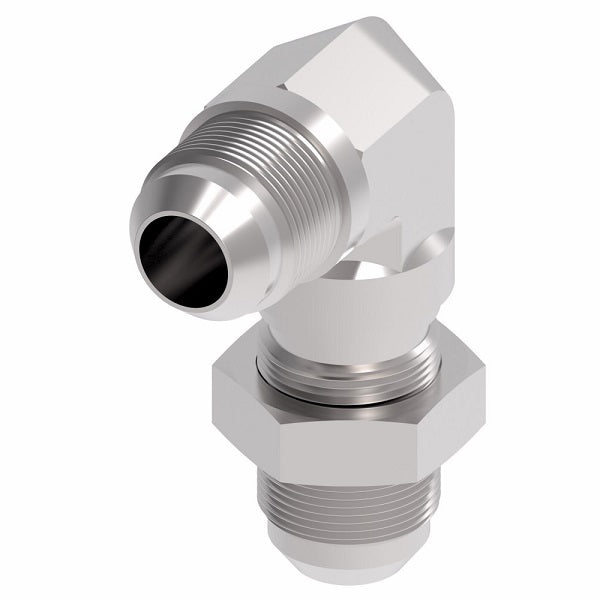

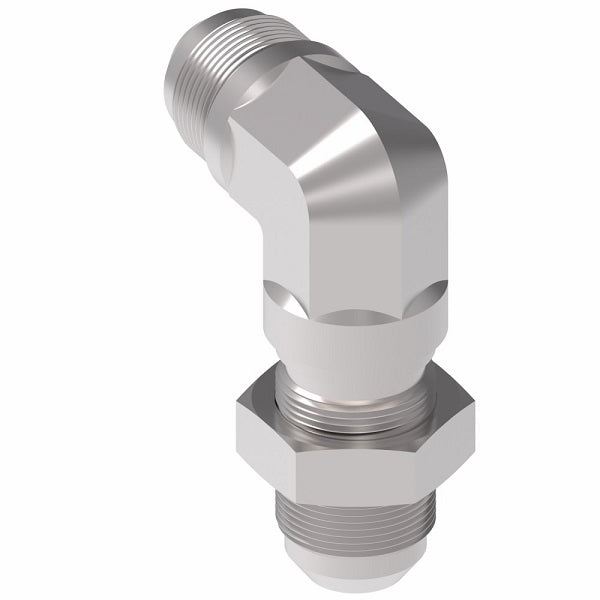

Name: 2043-10-10S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter | -10 Male 37° JIC Flare Bulkhead x -10 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 2043-10-10S Danfoss
Price: 30.39 USD
Availability: InStock

$30.39 - $30.39

$30.39

$30.39 - $30.39

$30.39

Aeroquip® by Danfoss
Male 37° JIC Flare Bulkhead/37° (JIC) Flare Adapter
Male 37° JIC Flare Bulkhead x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2043-10-10S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Male JIC, 5/8in Male JIC
Material(s):	Steel

Specifications:
Ref. SAE 070701


Part Number Steel	Part Number Steel without Nut	Tube O.D.	Thread T1	Thread T2	A	B
2043-3-3S	-	0.19"	3/8-24	3/8-24	1.50"	0.94"
2043-4-4S	2043-1-4-4S	0.25"	7/16-20	7/16-20	1.59"	0.97"
2043-5-5S	2043-1-5-5S	0.31"	1/2-20	1/2-20	1.72"	1.06"
2043-6-6S	2043-1-6-6S	0.38"	9/16-18	9/16-18	1.81"	1.09"
2043-8-8S	2043-1-8-8S	0.50"	3/4-16	3/4-16	2.11"	1.36"
2043-10-10S	2043-1-10-10S	0.63"	7/8-14	7/8-14	2.39"	1.56"
2043-12-12S	2043-1-12-12S	0.75"	1-1/16-12	1-1/16-12	2.67"	1.78"
2043-16-16S	2043-1-16-16S	1.00"	1-5/16-12	1-5/16-12	2.80"	1.94"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
