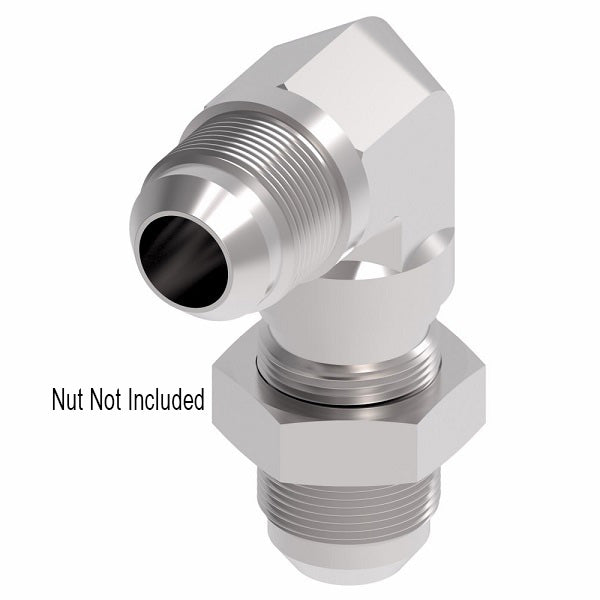

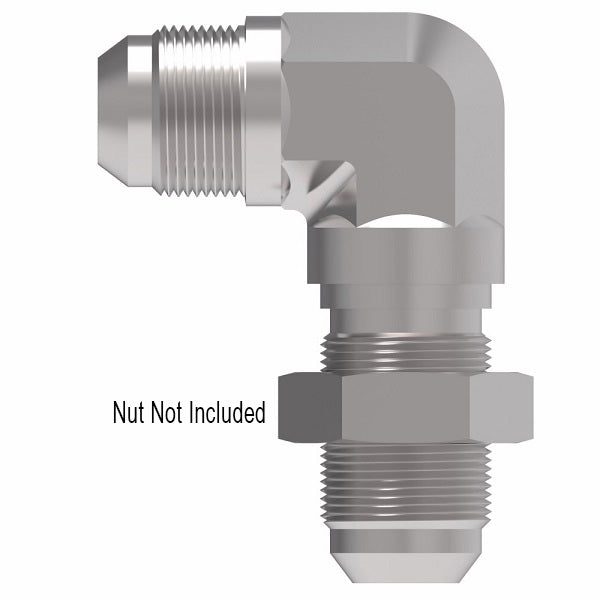

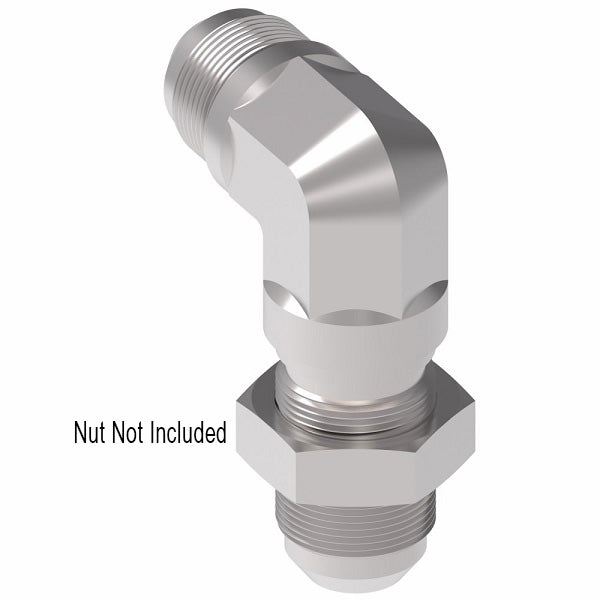

2043-1-8-8S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter (without Nut) | -08 Male 37° JIC Flare Bulkhead x -08 Male 37° JIC Flare | Steel
2043-1-8-8S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter (without Nut) | -08 Male 37° JIC Flare Bulkhead x -08 Male 37° JIC Flare | Steel
2043-1-8-8S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter (without Nut) | -08 Male 37° JIC Flare Bulkhead x -08 Male 37° JIC Flare | Steel
2043-1-8-8S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter (without Nut) | -08 Male 37° JIC Flare Bulkhead x -08 Male 37° JIC Flare | Steel

2043-1-8-8S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter (without Nut) | -08 Male 37° JIC Flare Bulkhead x -08 Male 37° JIC Flare | Steel

$20.35 - $20.35
$20.35
$20.35 - $20.35
$20.35

Aeroquip® by Danfoss
Male 37° JIC Flare Bulkhead/37° (JIC) Flare Adapter
Male 37° JIC Flare Bulkhead x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2043-1-8-8S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Male JIC, 1/2in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070701
Part Number
Steel		 Part Number
Steel
without Nut		 Tube O.D. Thread T1 Thread T2 A B
2043-3-3S - 0.19" 3/8-24 3/8-24 1.50" 0.94"
2043-4-4S 2043-1-4-4S 0.25" 7/16-20 7/16-20 1.59" 0.97"
2043-5-5S 2043-1-5-5S 0.31" 1/2-20 1/2-20 1.72" 1.06"
2043-6-6S 2043-1-6-6S 0.38" 9/16-18 9/16-18 1.81" 1.09"
2043-8-8S 2043-1-8-8S 0.50" 3/4-16 3/4-16 2.11" 1.36"
2043-10-10S 2043-1-10-10S 0.63" 7/8-14 7/8-14 2.39" 1.56"
2043-12-12S 2043-1-12-12S 0.75" 1-1/16-12 1-1/16-12 2.67" 1.78"
2043-16-16S 2043-1-16-16S 1.00" 1-5/16-12 1-5/16-12 2.80" 1.94"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
